Grooved Profile Wheel | Ø100×30 mm | Polyamide | 30 mm Profile | 8 mm Groove | 160 kg

Groove Profile Wheel Ø100×30 mm – Polyamide 6G for 30 mm Aluminum Profile

Compatibility: Suitable for 30 mm aluminum profile systems, including compatibility with profiles from item®, Fath®, and Bosch Rexroth® (groove width depending on variant 6 / 8 / 10 / 12 mm).

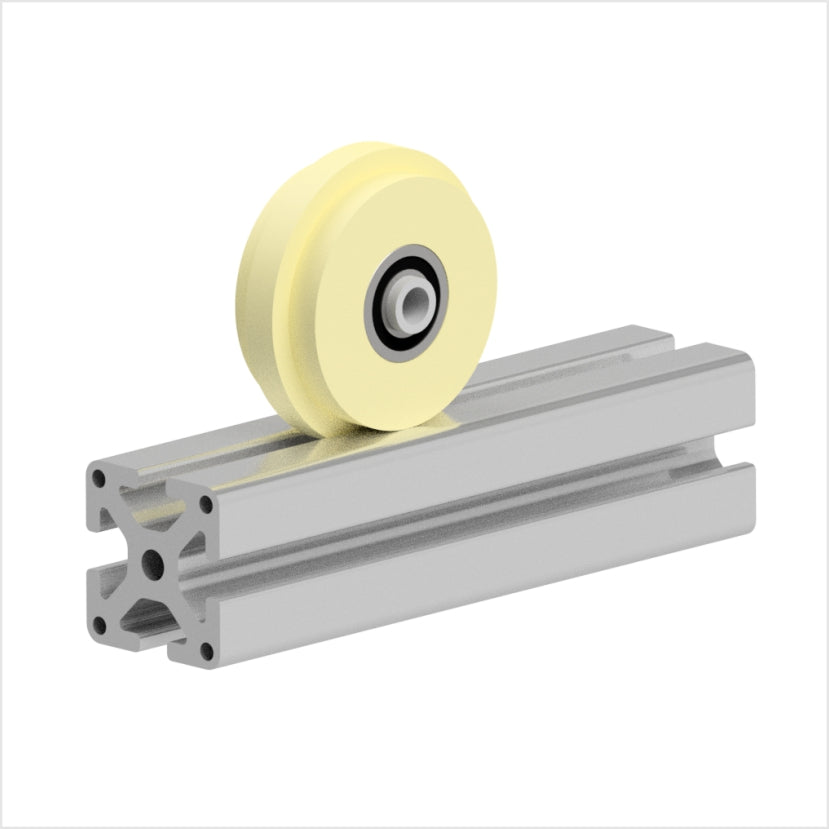

The groove profile wheel Ø100×30 mm made of Polyamide 6G is specifically designed for precise guidance in 30 mm aluminum profiles – for shelves, material trolleys, workbenches, or linear axes that require smooth and low-play movement. The groove geometry engages positively with the aluminum profile, enabling quiet linear motion without additional guiding elements. More application examples can be found on our Solutions Page for Conveyor Technology and Mechanical Engineering.

Bearing Options

The groove profile wheel is available in three variants:

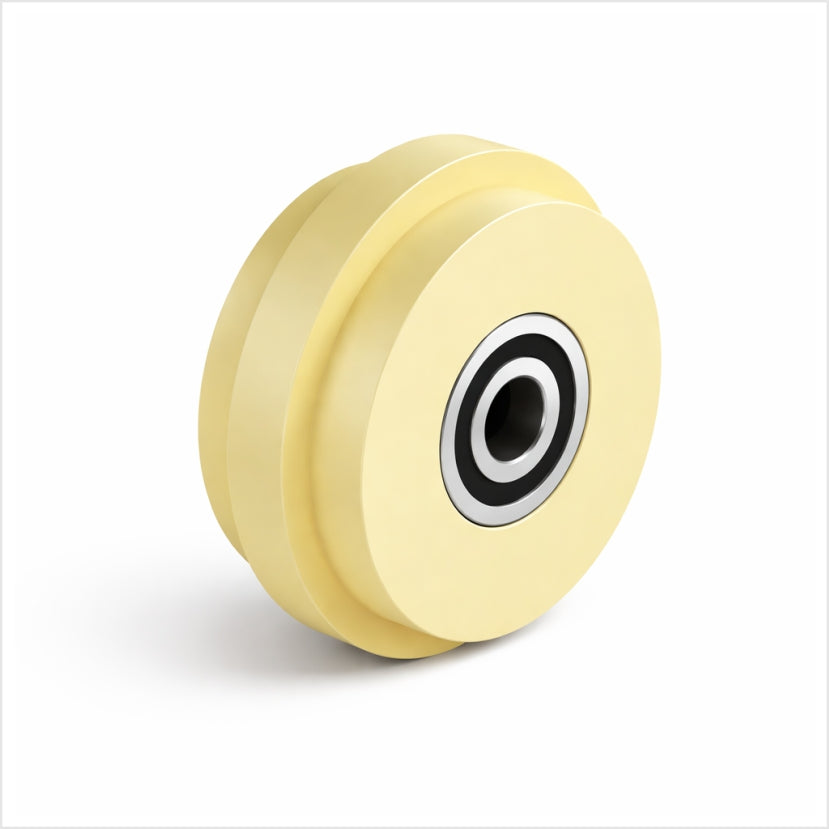

• With Ball Bearing: Double-sealed deep groove ball bearing made of steel – low-maintenance, can be mounted directly on an axle or pin, for co-rotating wheels.
• With Stainless Steel Ball Bearing: Same as the ball bearing version, but with a stainless steel ball bearing for moist or corrosive environments.
• With Hub Keyway: Torque-proof shaft connection according to DIN 6885 – for driven wheels or when the wheel is to be firmly connected to the shaft.

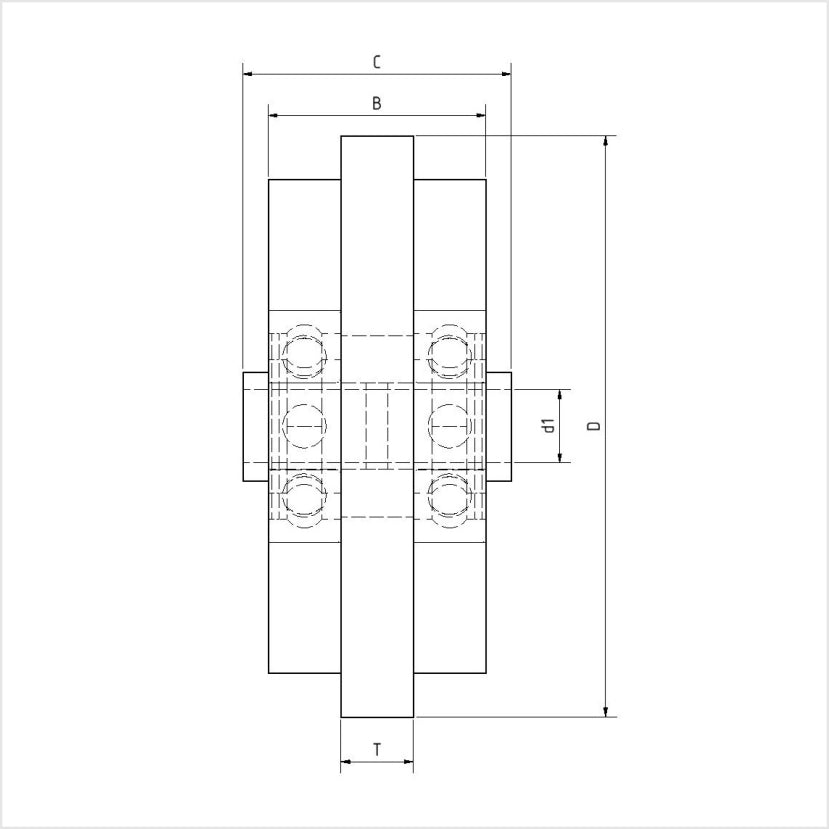

Technical Features

• Outer Diameter: 100 mm
• Wheel Width: 30 mm
• Hub Length: 30 mm
• Bore: Ø8 mm
• Running Width: 7.8 mm
• Groove Width: 8 mm
• Load Capacity: 160 kg
• Suitable for: 30 mm aluminum profile (item®, Fath®, Bosch Rexroth®, etc.)
• Material: Polyamide 6G (PA6G), cast and turned
• Electrically non-conductive, food-grade

Areas of Application

• Shelving and storage systems with linear guides
• Material trolleys and mobile workbenches
• Linear axes in special machines and fixtures
• Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
• Intralogistics and light conveyor technology

Notes

Please check the profile groove dimensions and axle diameter before ordering. For the hub keyway version, DIN 6885 applies – suitable keyway dimensions can be found in the technical data. Special dimensions available upon request.

Brand Notice / Compatibility Notice

item®, Fath®, and Bosch Rexroth® are registered trademarks of their respective owners. The groove profile wheels offered on this page are not original products from these manufacturers but compatible accessories. The mention of brand names serves exclusively to describe compatibility.
