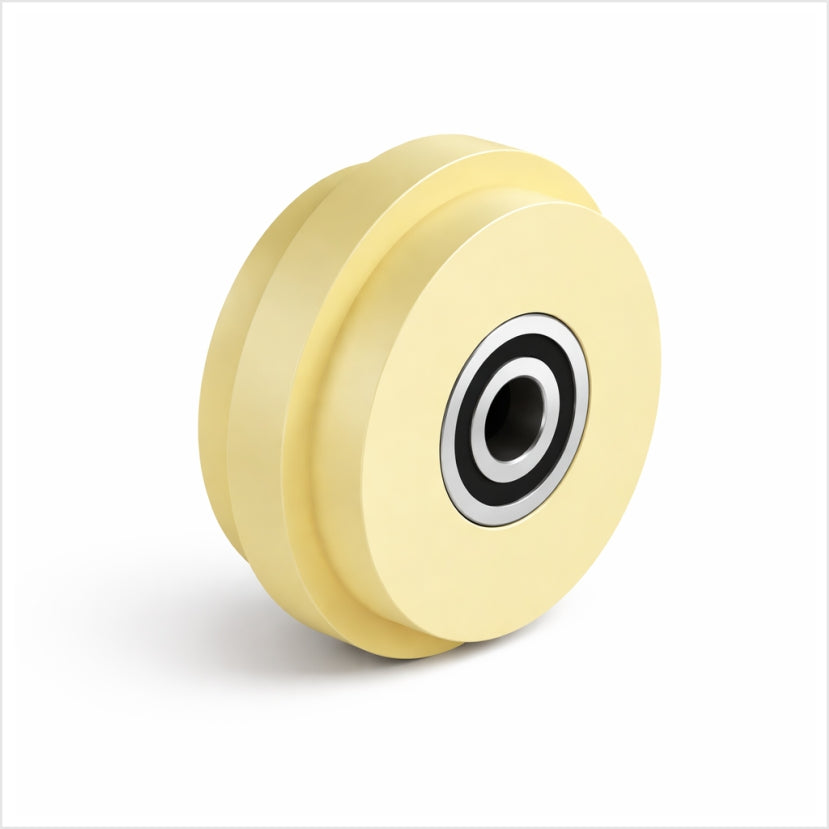

Grooved wheel | Ø100×30 mm | Polyamide | 30 mm profile | profile groove 10 mm | 160 kg

Single wheel 100×30 mm polyamide ball bearing 30-mm-Aluminiumprofil 160 kg
61,66 €
incl. VAT
49,13 €
excl. VAT
Made to order
approx. 7–12 days
The item will be produced after receipt of your order.
Bearings
Customers rate us 4.6/5 based on 18 reviews.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

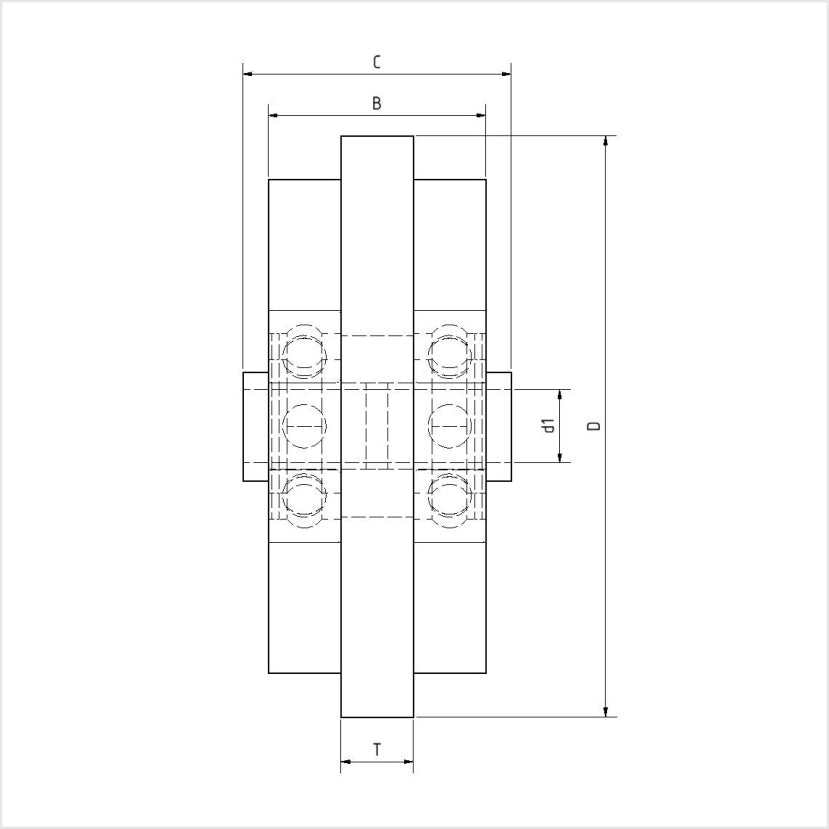

Technical data

Wheel diameter (D)
100 mm
Tread diameter shoulders (d2)
84 mm
Wheel width (B)
30 mm
Groove width
9.8 mm
Load capacity
160 kg
Bore (d1)
12 mm
Hub length (C)
30 mm

Grooved profile wheel Ø100×30 mm – polyamide 6G for 30-mm-Aluminiumprofil

Compatibility: Suitable for 30-mm-Aluminiumprofilsysteme, including profiles from item®, Fath® and Bosch Rexroth® (groove width depending on variant 6 / 8 / 10 / 12 mm).

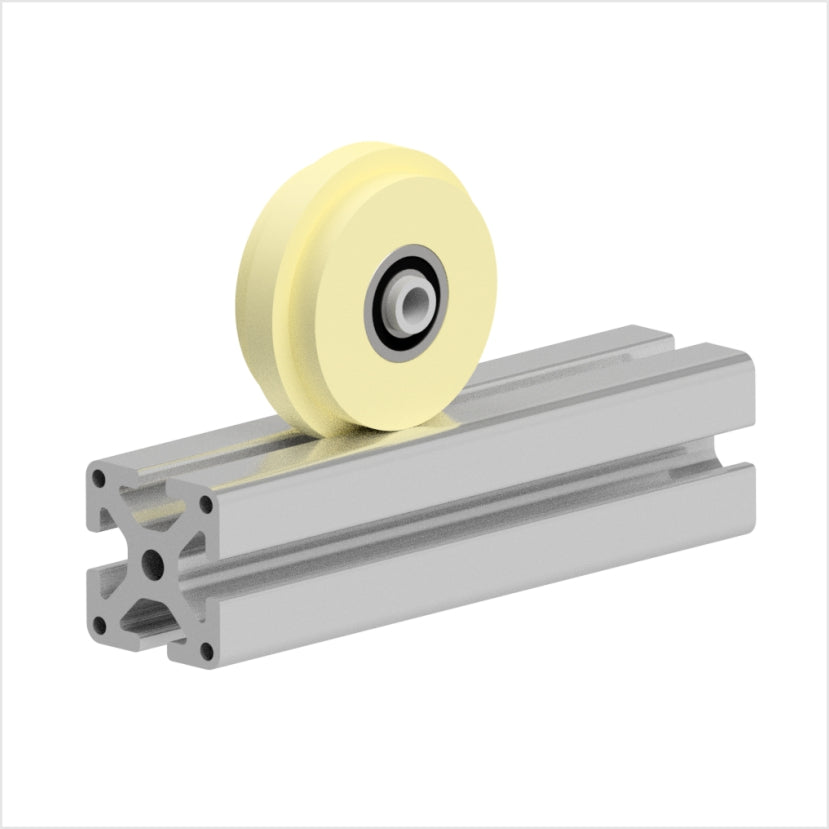

The grooved profile wheel Ø100×30 mm made of polyamide 6G is specially designed for precise guidance in 30-mm-Aluminiumprofilen – for shelving units, material trolleys, work tables or linear axes that need to move smoothly and with minimal play. The groove geometry engages form-fittingly in the aluminium profile and enables quiet linear movement without additional guide elements. More application examples on our solution page for conveyor technology and mechanical engineering.

Bearing versions

The grooved profile wheel is available in three versions:

  • With ball bearing: Double-sealed deep-groove ball bearing made of steel – low-maintenance, can be mounted directly on an axle or bolt, for free-running wheels.
  • With stainless steel ball bearing: As with the ball bearing version, but with a stainless steel ball bearing for humid or corrosive environments.
  • With hub keyway: Anti-rotation shaft connection according to DIN 6885 – for driven wheels or when the wheel is to be firmly connected to the shaft.

Technical features

  • Outside diameter: 100 mm
  • Wheel width: 30 mm
  • Hub length: 30 mm
  • Bore: Ø10 mm
  • Tread width: 9.8 mm
  • Groove width: 10 mm
  • Load capacity: 160 kg
  • Suitable for: 30-mm-Aluminiumprofil (item®, Fath®, Bosch Rexroth® etc.)
  • Material: polyamide 6G (PA6G), cast and machined
  • Electrically non-conductive, food-safe

Areas of use

  • Shelving units and storage systems with linear guidance
  • Material trolleys and mobile work tables
  • Linear axes in special-purpose machines and fixtures
  • Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
  • Intralogistics and light-duty conveyor technology

Notes

Please check the profile groove dimensions and axle diameter before ordering. For the hub keyway version, DIN 6885 applies – suitable groove dimensions can be found in the technical data. Special dimensions on request.

Brand notice / compatibility notice

item®, Fath® and Bosch Rexroth® are registered trademarks of the respective owners. The grooved profile wheels offered on this page are not original products from these manufacturers, but compatible accessories. The mention of the brand names serves solely to describe compatibility.
