Grooved Profile Wheel Ø100×30 mm – Polyamide 6G for 30-mm Aluminum Profile

Compatibility: Suitable for 30-mm aluminum profile systems, including compatibility with profiles from item®, Fath®, and Bosch Rexroth® (groove width 6 / 8 / 10 / 12 mm depending on variant).

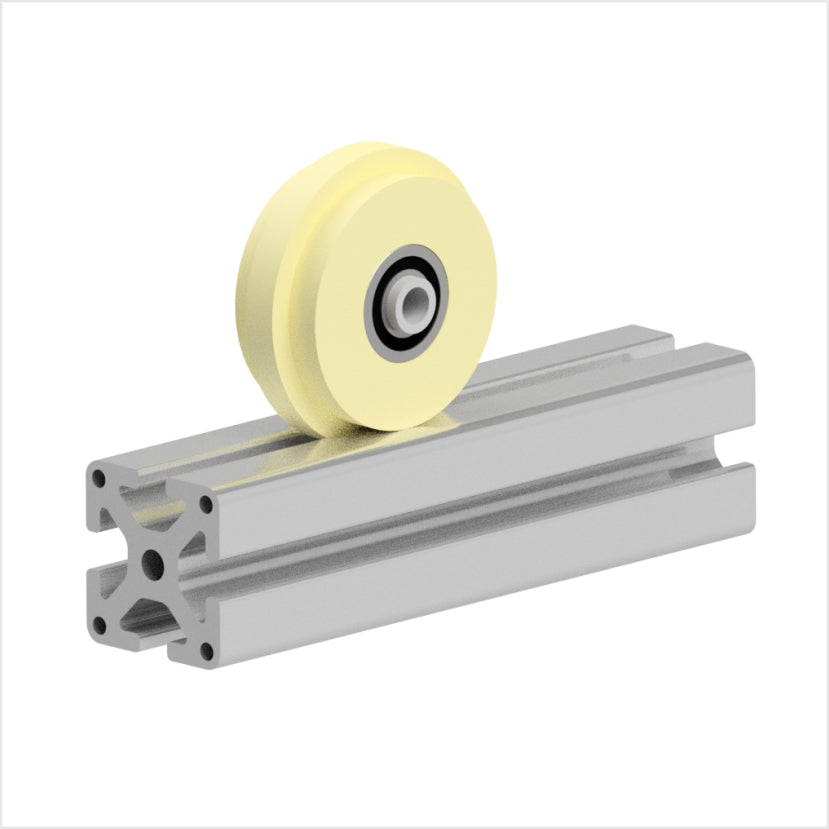

The grooved profile wheel Ø100×30 mm made of Polyamide 6G is specifically designed for precise guidance in 30-mm aluminum profiles – for shelves, material trolleys, workbenches, or linear axes that require smooth and low-play movement. The groove geometry positively engages with the aluminum profile, enabling quiet linear movement without additional guide elements. More application examples can be found on our Solutions Page for Conveyor Technology and Mechanical Engineering.

Bearing Designs

The grooved profile wheel is available in three variants:

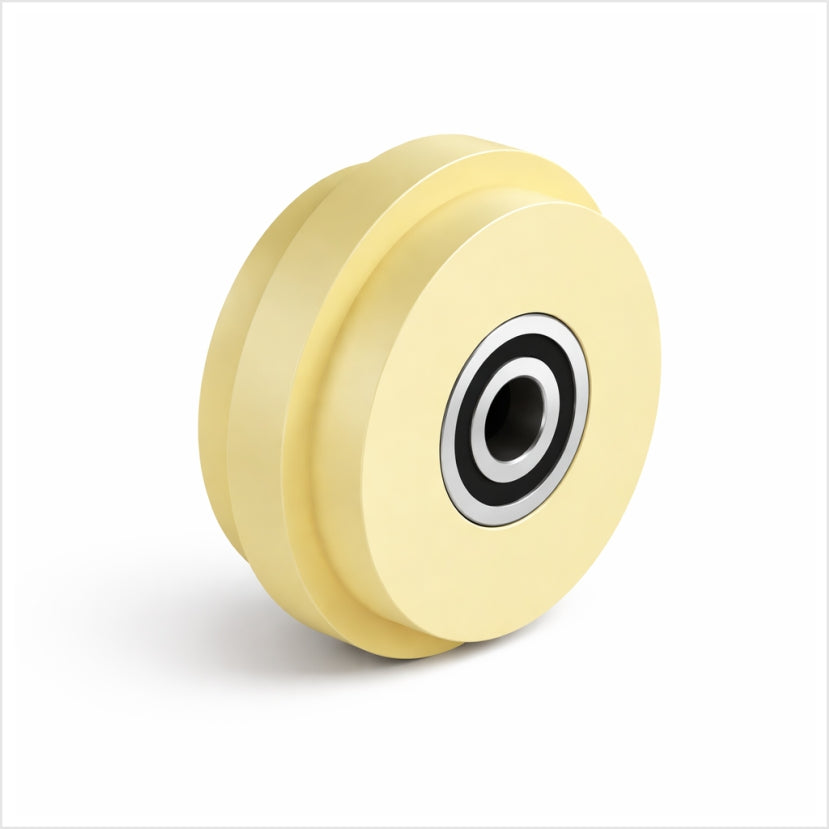

• With Ball Bearing: Double-sealed deep groove ball bearing made of steel – low maintenance, mountable directly on an axle or bolt, for idler wheels.
• With Stainless Steel Ball Bearing: Same as ball bearing version, but with stainless steel ball bearing for moist or corrosive environments.
• With Hub Keyway: Torque-resistant shaft connection according to DIN 6885 – for driven wheels or when the wheel needs to be firmly connected to the shaft.

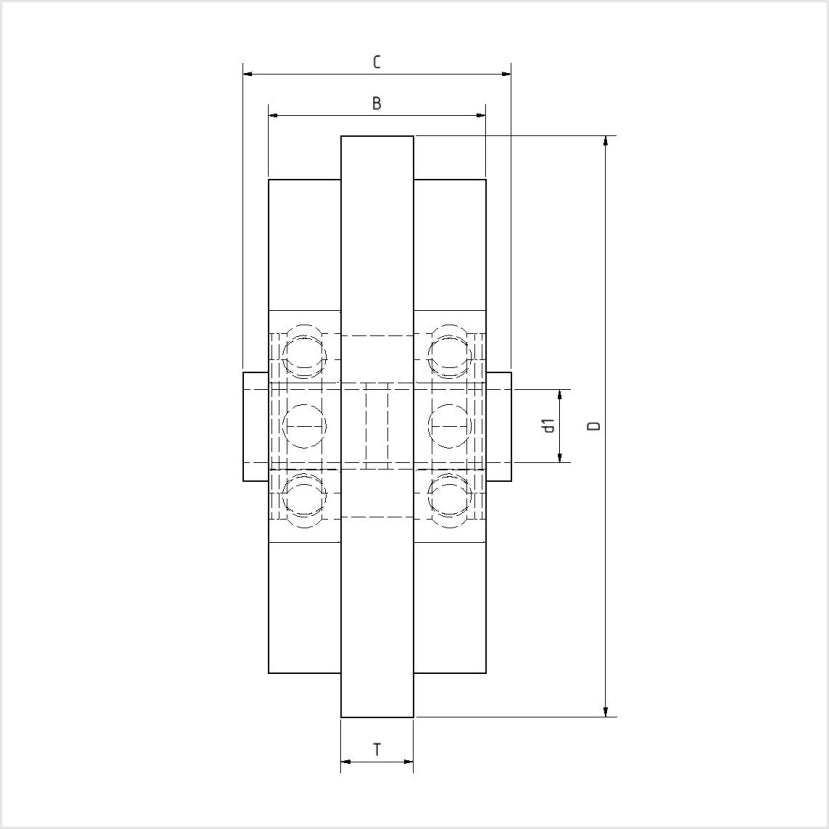

Technical Features

• Outer Diameter: 100 mm
• Wheel Width: 30 mm
• Hub Length: 30 mm
• Bore: Ø12 mm
• Running Width: 11.8 mm
• Groove Width: 12 mm
• Load Capacity: 160 kg
• Suitable for: 30-mm aluminum profile (item®, Fath®, Bosch Rexroth® and others)
• Material: Polyamide 6G (PA6G), cast and turned
• Electrically non-conductive, food-grade

Areas of Application

• Shelves and storage systems with linear guides
• Material trolleys and mobile workbenches
• Linear axes in special machines and fixtures
• Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
• Intralogistics and light conveyor technology

Notes

Please check the profile groove dimensions and axle diameter before ordering. For the hub keyway version, DIN 6885 applies – suitable keyway dimensions can be found in the technical data. Special dimensions available upon request.

Brand Notice / Compatibility Notice

item®, Fath®, and Bosch Rexroth® are registered trademarks of their respective owners. The grooved profile wheels offered on this page are not original products of these manufacturers, but compatible accessories. The mention of brand names serves exclusively to describe compatibility.
