Flange Drive Wheel with Hub Groove | PU or Vulkollan on V2A Stainless Steel Core | Flange Ø 395 mm | Tread Ø 350 mm
1.643,32 €
IVA incluído
1.336,03 €
sem IVA
Custom manufacturing
Delivery time on request
Custom manufacturing – delivery time on request.
Technische Daten
Wheel diameter (D)
350mm
Spurkranz-Ø (D2)
395mm
Wheel width (B)
90.0mm
Load capacity
8000kg
Axle hole (d1)
70.0mm
Hub length (C)
90.0mm
Spurkranzlage (E)
Spurlos
Ja
Kontaktverfärbungsfrei
Ja
Flanged Drive Wheel with Keyway | PU or Vulkollan® Tread on Stainless Steel 1.4301 (V2A) Core | Flange-Ø 395 mm | Tread-Ø 350 mm
Turned stainless steel flanged drive wheel with keyway according to DIN 6885 and cast-on elastomer tread. The keyway accommodates a feather key for positive torque transmission to the drive shaft. The V2A core protects against corrosion and chemical exposure.
Tread — Selection

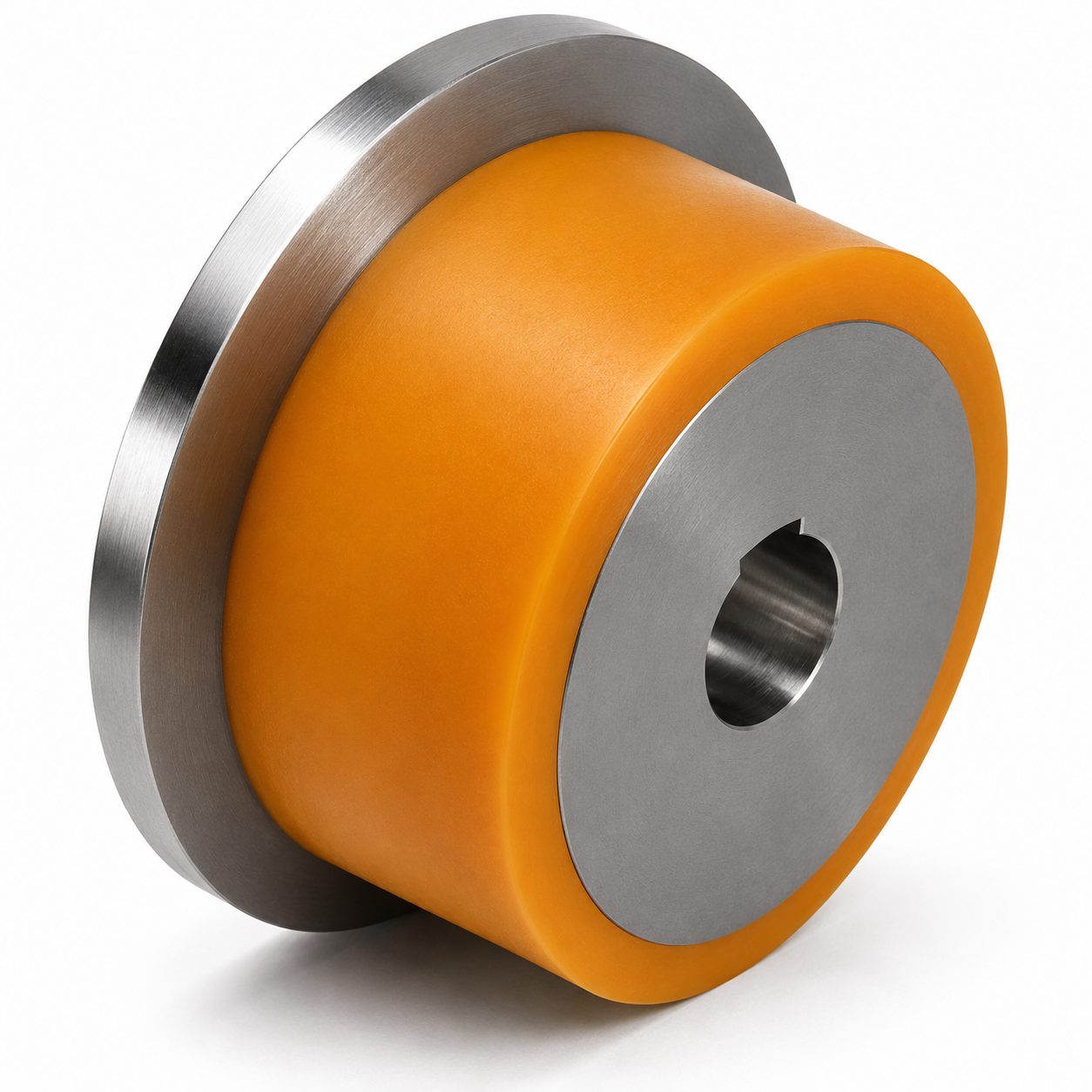

Polyurethane MDI — High-quality MDI polyurethane, abrasion-resistant, oil-resistant, and with good damping properties. Economical choice for medium to high loads. Hardness approx. 92 Shore A. Temperature -20°C to +80°C.

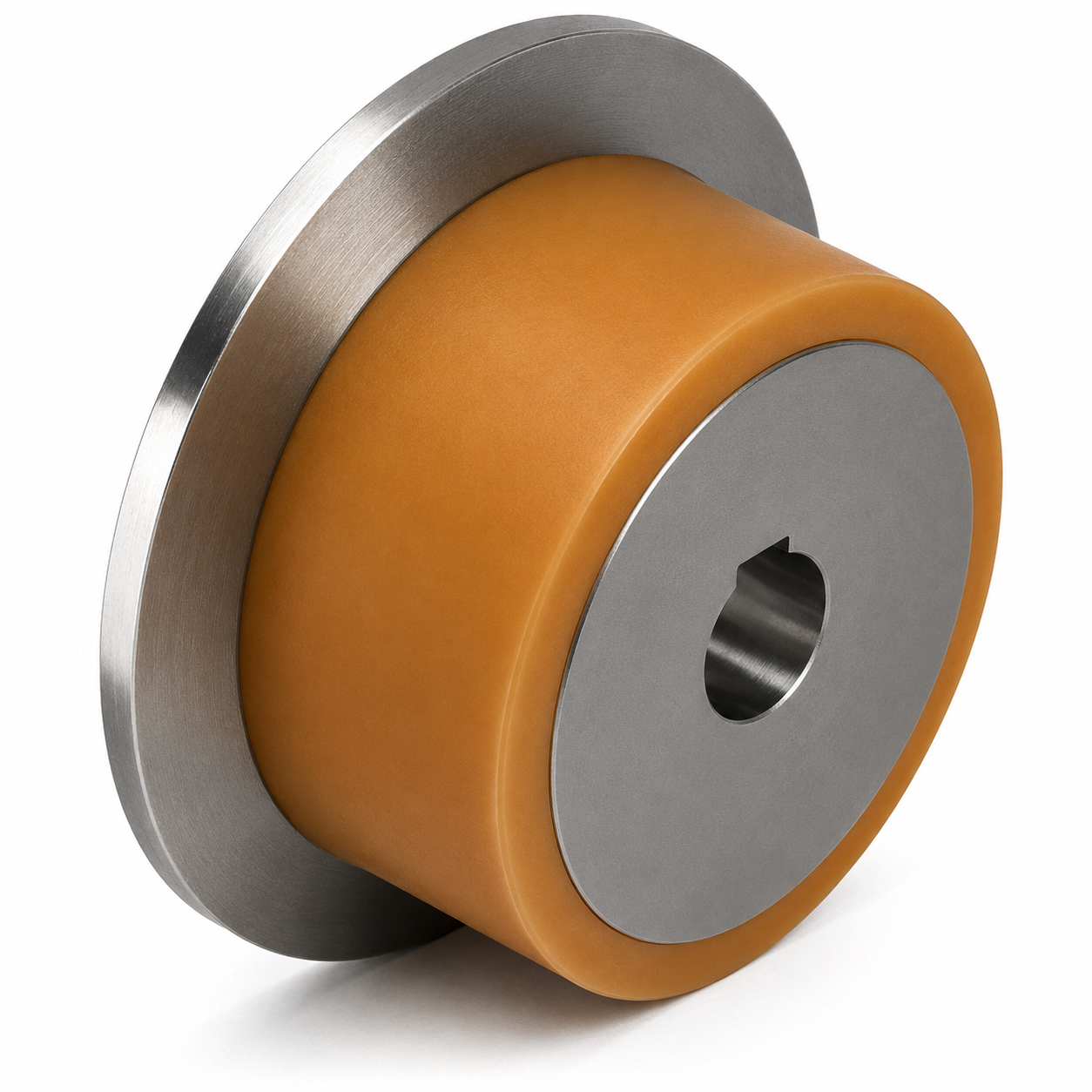

Vulkollan® — Premium elastomer from Covestro, highest load capacity with elastic running, extremely abrasion-resistant, durable under continuous load. Hardness approx. 92 Shore A. Temperature -20°C to +80°C.
Core Material: Stainless Steel 1.4301 (V2A)
Corrosion-resistant austenitic stainless steel 1.4301 (V2A). For moist environments, cleanrooms, food industry, pharmaceutical industry, and outdoor use without additional coating.
Typical Applications
Driven axles in food production, pharmaceutical and cleanroom logistics, AGV/FTS drives in moist or cleanroom-compatible environments, stainless steel gantry cranes.
Note on Customization
These wheels are manufactured to order from stainless steel. Delivery and price upon request. Special diameters, deviating axle bore tolerances, and V4A (1.4571, acid-resistant) available upon request.
