Technisches Datenblatt

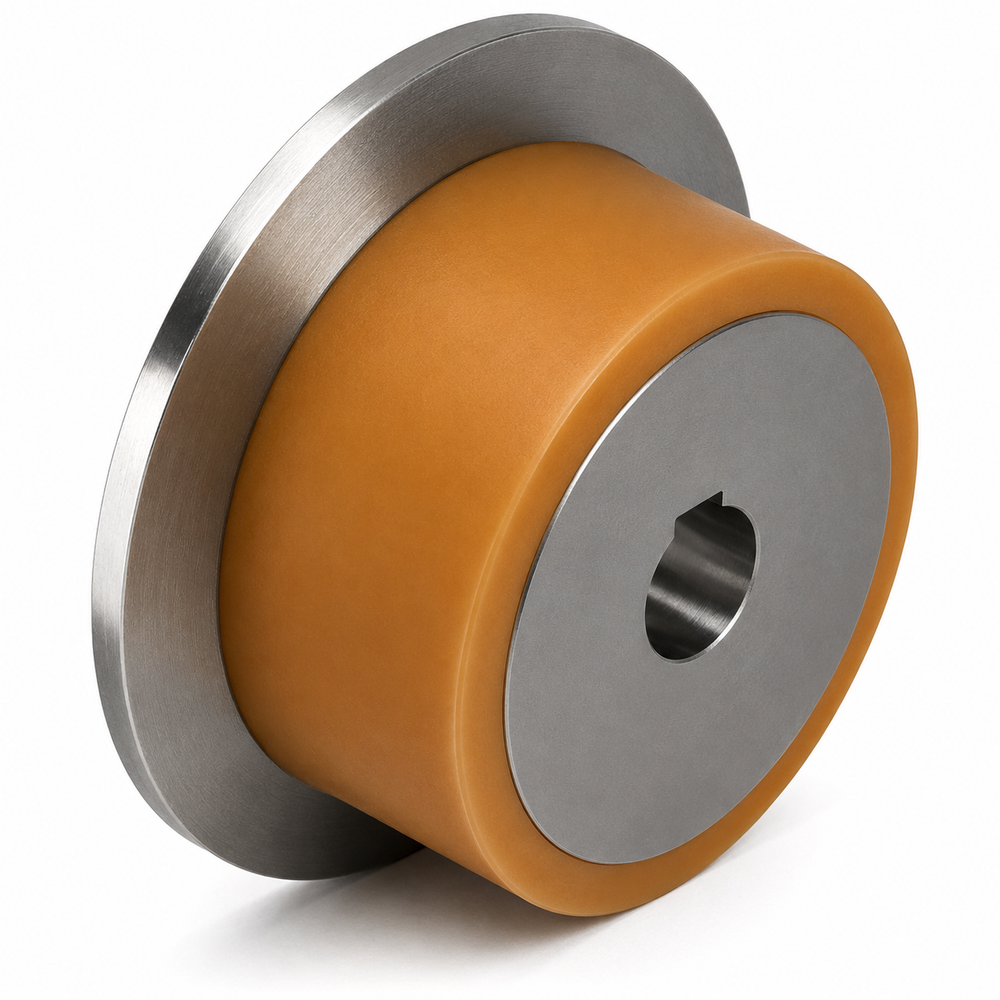

Flanged Drive Wheel with Hub Groove | PU or Vulkollan on V2A Stainless Steel Core | Flange Ø 445 mm | Running Ø 400 mm
Artikelnummer: SPRA-V2A-400-445-NN-PU
Ausführung: polyurethane MDI
castors-direct.com
Beschreibung
Flanged Drive Wheel with Hub Keyway | PU or Vulkollan® Tread on Stainless Steel 1.4301 (V2A) Core | Flange-Ø 445 mm | Tread-Ø 400 mmTurned stainless steel flanged drive wheel with hub keyway according to DIN 6885 and cast elastomer tread. The hub keyway accommodates a feather key for form-fitting torque transmission to the drive shaft. The V2A core protects against corrosion and chemical stress.Tread — SelectionPo...
Technische Daten
| Rad-Ø | 400 mm |
|---|---|
| Radbreite | 90 mm |
| Laufbreite | 72 mm |
| Achsloch-Ø | 80 mm |
| Nabenlänge | 90 mm |
| Spurkranz-Ø | 445 mm |
| Spurkranzlage | 25mm |
| Tragfähigkeit | 9000 kg |
| Temperaturbereich | -20°/+80°C. |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 4 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Gewicht | 88.8 kg |
Hersteller
rollen-direkt - Heidestr. 38a - 59174 Kamen - Phone: +49 (0)2307 - 9645241
Sicherheitshinweis
This wheel is exclusively designed for the transportation and guidance of goods. The carrying of persons is not permitted.
