Technical datasheet

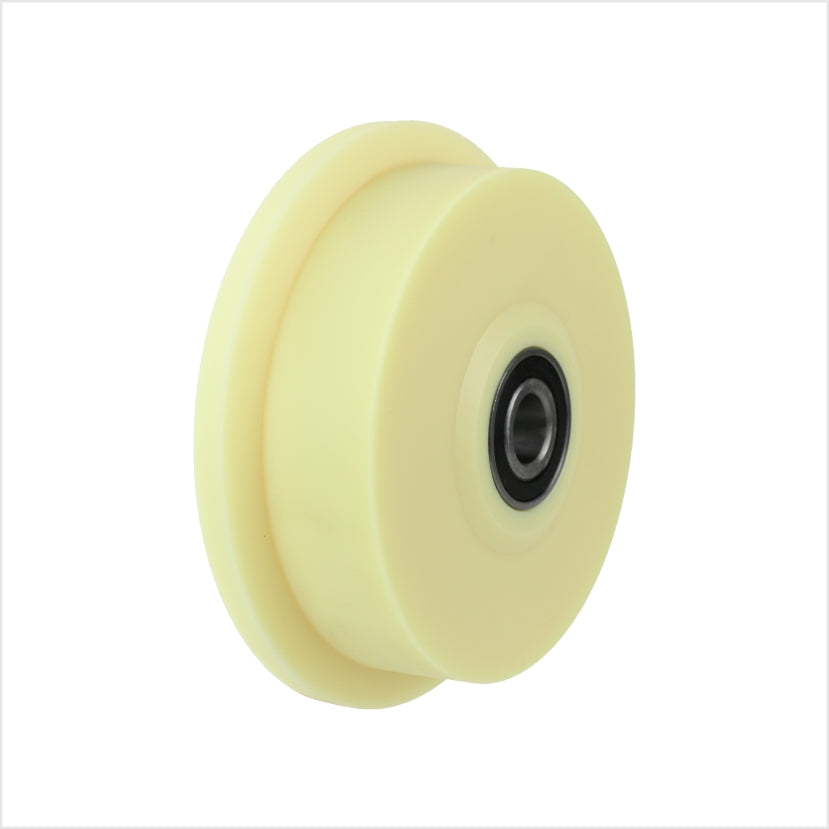

Flanged wheel | 250 x 65 mm | Polyamide 6G | Ball bearings | Hub groove | 3° tread
Item number: SPR-2505K/250/300/65/70
Variant: with ball bearing
Description
Precisely turned flanged wheel made of cast Polyamide 6G for continuous use in rail and profile guides. The circumferential flange keeps the wheel securely on the running surface – whether on flat rails, angle irons or special profiles – and prevents lateral breakout even under load and lateral forces. Material
Technical data
| Wheel diameter (D) | 250 mm |
|---|---|
| Spurkranz-Ø (D2) | 300 mm |
| Wheel width (B) | 65 mm |
| Laufbreite (T) | 50mm |
| Load capacity | 2100 kg |
| Axle hole (d1) | 30 mm |
| Hub length (C) | 70 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20 °C bis +80 °C |
| Material | Polyamid 6G |
| Tread hardness | 90 Shore D |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Exclusively for the transport and guidance of goods. Passenger transport not permitted. Before assembly, shut down and secure the system. Screw the wheel firmly and without play – loose fastening can lead to accidents. Regularly check for tight fit, wear, and damage. Replace damaged wheels immediately.
