Technical datasheet

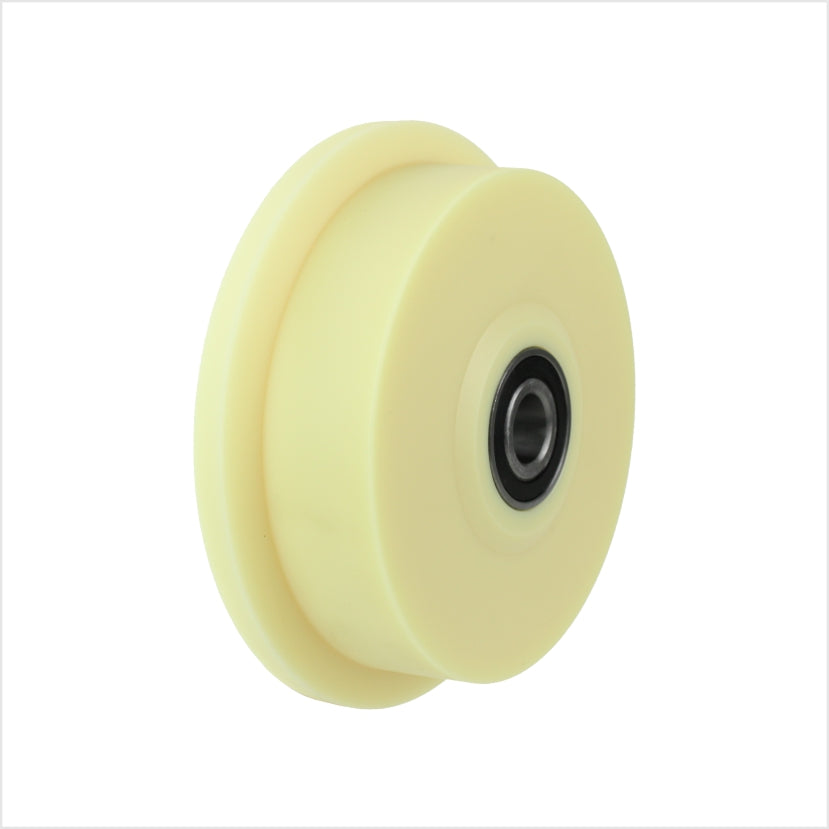

Flanged wheel | 300 x 65 mm | Polyamide 6G | Ball bearing | Keyway hub | Tread 3°
Item number: SPR-2505K/300/350/65/70
Variant: with ball bearing
Description
Flanged wheel made of cast polyamide 6 with Ø 300 × 65 mm – lightweight, tough, and high-strength. The tread, which rises at an angle of 3° to the axle, ensures optimal rail contact and reduces wear and running noise. The wheel is available either with 2 sealed ball bearings (2RS) for low-maintenance, smooth running or with a hub keyway for form-fitting power transmission to drive shafts.
Technical data
| Wheel diameter (D) | 300 mm |
|---|---|
| Spurkranz-Ø (D2) | 350 mm |
| Wheel width (B) | 65 mm |
| Laufbreite (T) | 50mm |
| Load capacity | 2300 kg |
| Axle hole (d1) | 30 mm |
| Hub length (C) | 70 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20 °C bis +80 °C |
| Material | Polyamid 6G |
| Tread hardness | 90 Shore D |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Exclusively for the transport and guidance of goods. Passenger transport not permitted. Before assembly, shut down and secure the system. Screw the wheel firmly and without play – loose fastening can lead to accidents. Regularly check for tight fit, wear, and damage. Replace damaged wheels immediately.
