Technical datasheet
Flanged Wheel with PU or Vulkollan on Stainless Steel Core V2A | Flange Ø 150 mm | Tread Ø 125 mm
Item number: SPR-V2A-125-150-KL-PU
Variant: with ball bearing / polyurethane MDI
castors-direct.com
Description

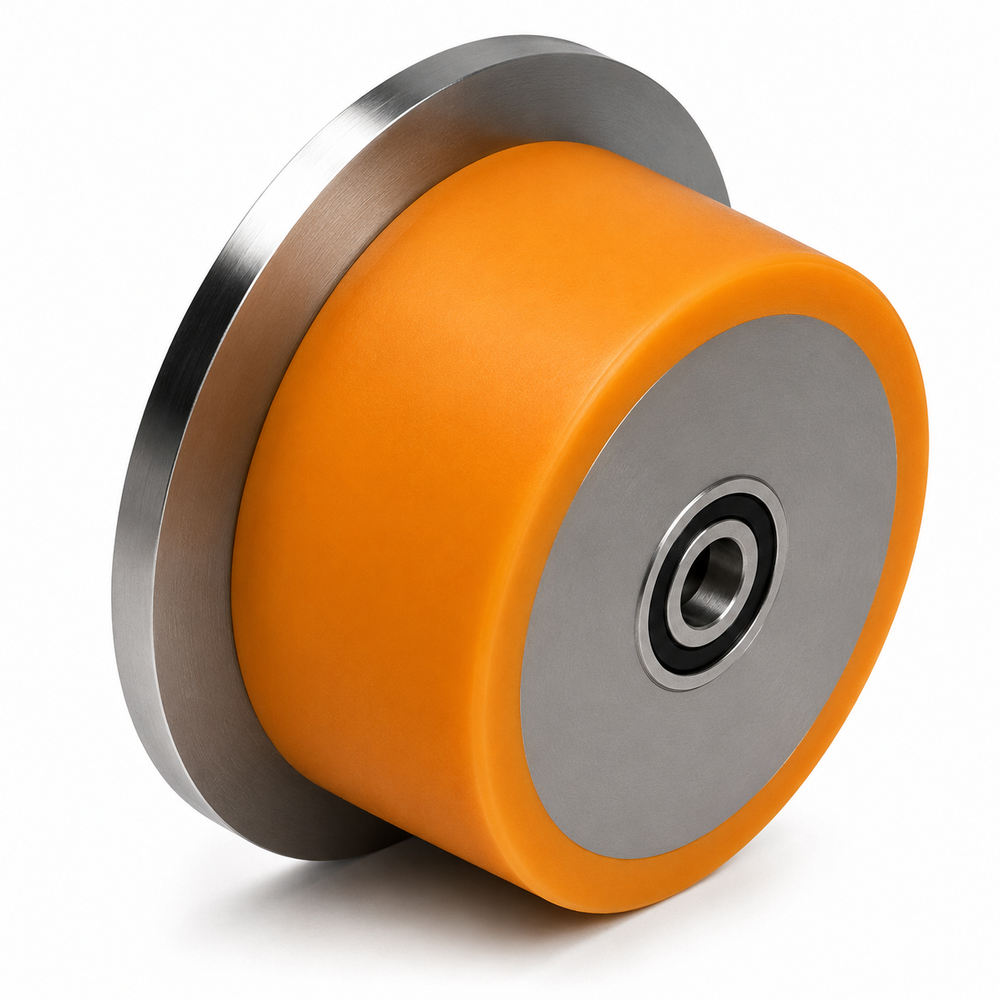

Flanged Wheel with PU or Vulkollan® Bandage on Stainless Steel 1.4301 (V2A) Core | Flange Ø 150 mm | Tread Ø 125 mm Turned stainless steel flanged wheel with cast-on elastomer bandage. The V2A core bears the load and protects against corrosion and chemical stress, while the PU or Vulkollan® bandage absorbs shocks and protects the running surface. The circumferential flange keeps the wheel securely on the track. Tread — Selection
Technical data
| Wheel diameter (D) | 125 mm |
|---|---|
| Spurkranz-Ø (D2) | 150 mm |
| Wheel width (B) | 50 mm |
| Load capacity | 1500 kg |
| Axle hole (d1) | 25 mm |
| Hub length (C) | 50 mm |
| Spurkranzlage (E) | 13 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
| Temperatur | -20°/+80°C. |
Manufacturer
rollen-direkt - Heidestr. 38a - 59174 Kamen - Phone: +49 (0)2307 - 9645241
Safety information
This wheel is exclusively designed for the transport and guidance of goods. The carriage of persons is not permitted.
