Technical datasheet

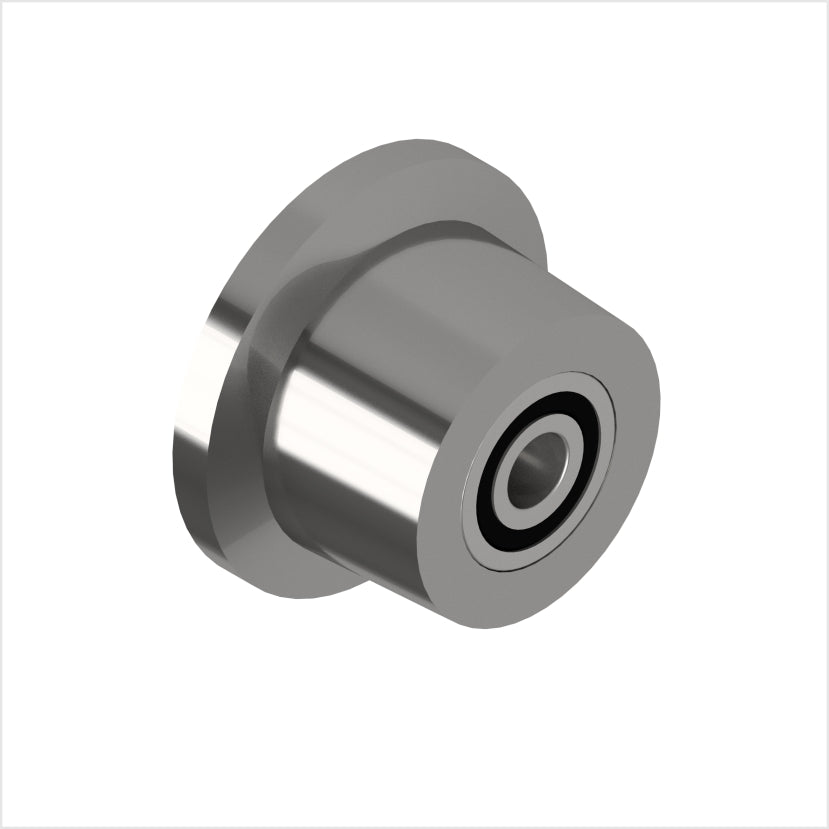

Flanged wheel | S355 / 1.4301 | Flange diameter: 60 mm Tread diameter: 50 mm
Item number: SPR-9620K/050/60/40
Variant: with ball bearing / Stahl S355
Description
Flanged Wheel | Steel S355 or Stainless Steel 1.4301 | Flange-Ø 60 mm | Wheel-Ø 50 mm Solidly turned flanged wheel for continuous use in rail and profile guides. The circumferential flange keeps the wheel securely on the running surface – whether on flat rails, angle irons or special profiles – and prevents lateral breakout even under load and lateral forces. Material
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Spurkranz-Ø (D2) | 60 mm |
| Wheel width (B) | 40 mm |
| Laufbreite (T) | 30 mm |
| Load capacity | 500 kg |
| Axle hole (d1) | 15 mm |
| Hub length (C) | 40 mm |
| Spurkranzlage (E) | 10mm |
| Autoklaventauglich | No |
| Non-marking | No |
| Non-staining | No |
| Hitzebeständig | No |
| Leitfähigkeit | Conductive |
| Temperatur | -20 °C bis +100 °C |
| Material | Stahl S355, Edelstahl 1.4301 |
| Tread hardness | 200 230 HB |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. +49 2307 - 9645243
Safety information
This wheel is intended exclusively for the transport and guidance of goods. The transport of people is not permitted. Before assembly, ensure that the system is shut down and secured. Bolt the wheel firmly and without play – a hanging or loose attachment can lead to uncontrolled loosening and accidents. During opera...
