Technisches Datenblatt

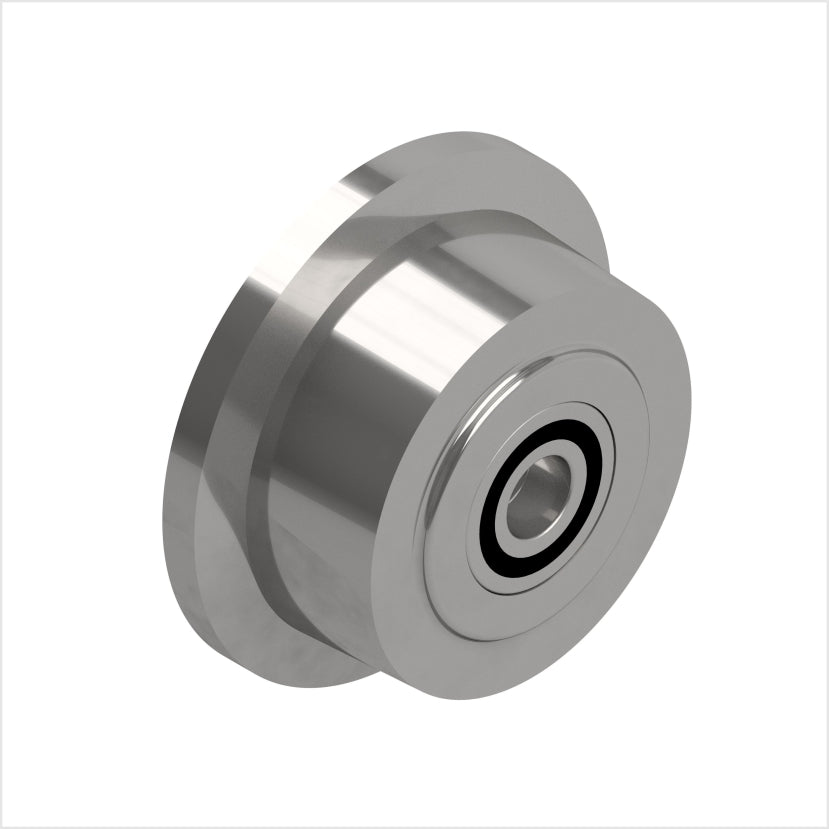

Flanged wheel | S355 / 1.4301 | Flange Ø: 100 mm | Wheel Ø: 75 mm | Ball bearing or hub groove
Artikelnummer: SPR-9620K/075/100/40
Ausführung: with ball bearing / Stahl S355
Beschreibung
Flanged Wheel | Steel S355 or Stainless Steel 1.4301 | Flange-Ø 100 mm | Wheel-Ø 75 mm Solid turned flanged wheel for continuous use in rail and profile guides. The circumferential flange keeps the wheel securely on the running surface – whether on flat rails, angle irons or special profiles – and prevents lateral derailment even under load and lateral forces. Material Steel S355 (bright) — Structural steel with a...
Technische Daten
| Rad-Ø | 75 mm |
|---|---|
| Radbreite | 40 mm |
| Laufbreite | 30 mm |
| Achsloch-Ø | 20 mm |
| Nabenlänge | 40 mm |
| Spurkranz-Ø | 100 mm |
| Spurkranzlage | 13 mm |
| Tragfähigkeit | 800 kg |
| Temperaturbereich | '-20°/+100°C. |
| Leitfähigkeit | Conductive |
| Kontaktverfärbungsfrei | Nein |
| Spurlos | Nein |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 5 |
| Dämpfung | 0 |
| Korrosionsbeständigkeit | 1 |
| Verschleißbeständigkeit | 3 |
| Bohrung | 20 mm |
| Laufbreite | 30 mm |
| Nabenlaenge | 40.0 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 75 mm |
| Spurkranzdurchmesser | 100 mm |
| Tragkraft | 800.0 kg |
| Material | Stahl S355, Edelstahl 1.4301 |
| Härte der Lauffläche | 200 230 HB |
| Farbe | Silber |
| Gewicht | 1.0 kg |
Hersteller
rollen-direkt - Heidestr. 38a - 59174 Kamen - Phone: +49 (0)2307 - 9645241
Sicherheitshinweis
This wheel is intended exclusively for the transport and guidance of goods. The transport of people is not permitted. Before assembly, ensure that the system is shut down and secured. Bolt the wheel firmly and without play – a hanging or loose attachment can lead to uncontrolled loosening and accidents. During opera...
