Technical datasheet

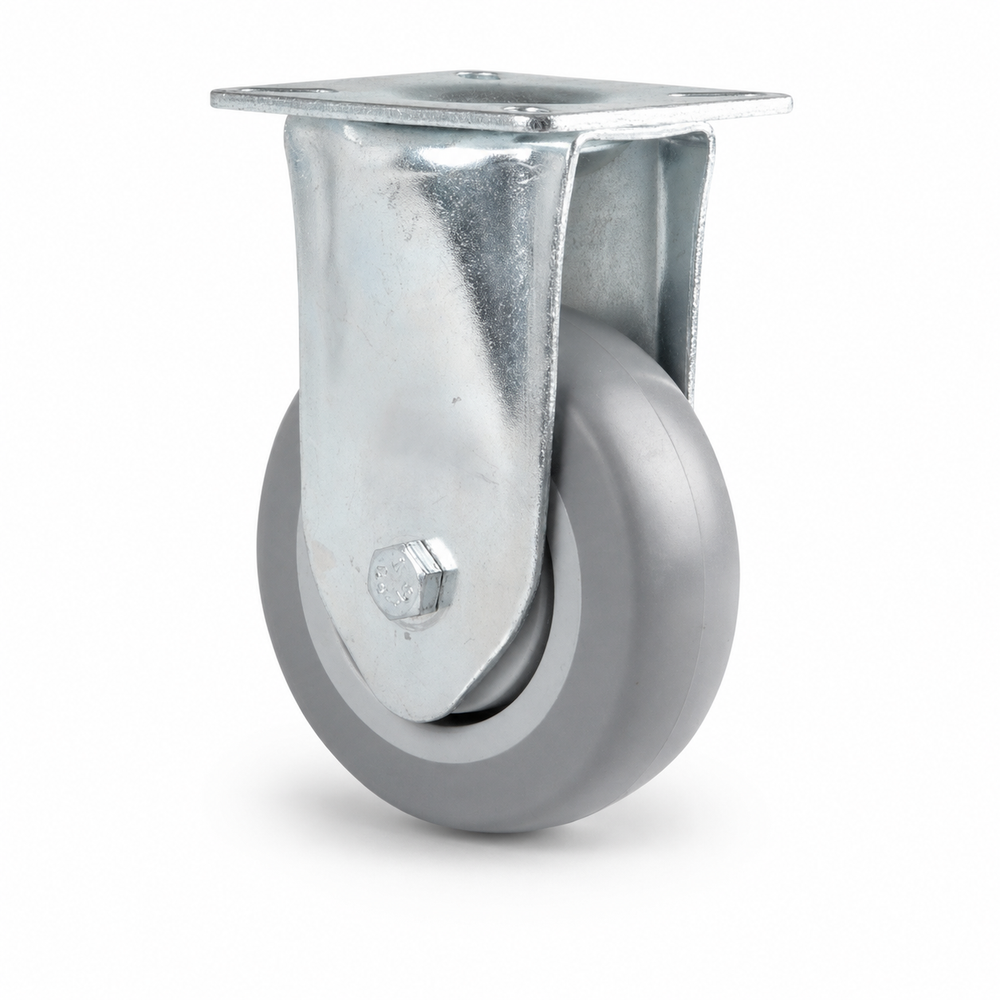

Grey fixed castor 100 mm with top plate – rubber, non-marking & quiet
Item number: B-APS/300K/100
castors-direct.com
Description
The grey fixed castor 100 mm with top plate is the largest rigid version of the Serie-300-Apparaterollen and carries noticeably more load than the 50- and 75-mm-Varianten. The non-marking, grey rubber wheel (thermoplastic TPE) runs quietly and is kind to floors; the bright galvanised steel sheet housing is robust and corrosion-protected. Combined with a swivel castor of the same size, it creates a classic undercarriage assembly with accurate tracking.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 24 mm |
| Overall height | 120 mm |
| Load capacity | 90 kg |
| Hole Ø | 6 mm |
| Bolt hole spacing | 47 × 47 mm |
| Plate size | 60 × 60 mm |
| Fastening | Plate |
| Tread hardness | 78 Shore A |
| Temperature | -20 °C to +60 °C |
| Material | Rubber |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
