Technical datasheet

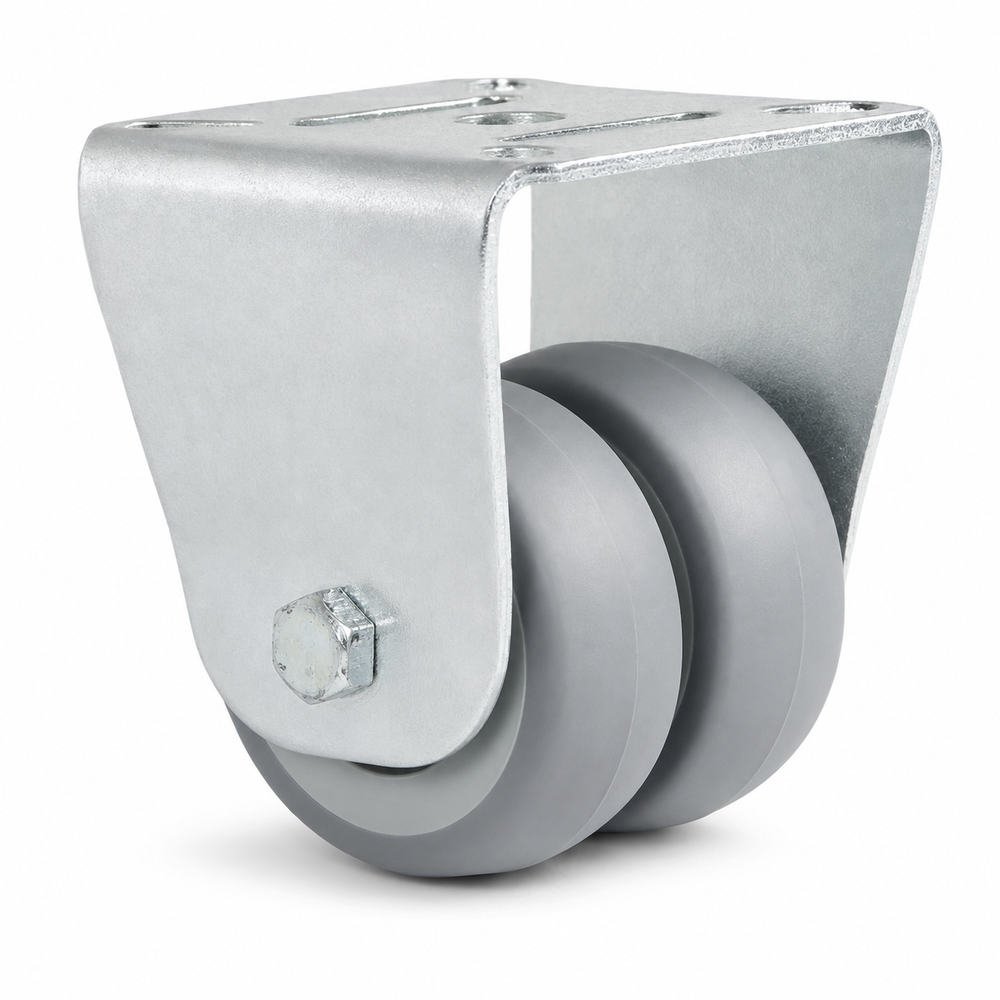

Grey twin wheel fixed castor 50 mm with top plate – rubber, non-marking & quiet
Item number: B-DAP/300K/050
castors-direct.com
Description
The grey double fixed castor 50 mm with top plate belongs to the Serie-300-Apparaterollen-Reihe and is the rigid double version for high static load with a fixed direction of travel. The non-marking, grey rubber wheel (thermoplastic TPE) runs quietly and is kind to floors; the bright galvanised steel sheet housing is robust and corrosion-protected. With a load capacity of 80 kg and precision ball bearing in the wheel, the castor runs smoothly even under load.
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 36 mm |
| Overall height | 72 mm |
| Load capacity | 80 kg |
| Hole Ø | 6 mm |
| Bolt hole spacing | 47 × 47 mm |
| Plate size | 60 × 60 mm |
| Fastening | Plate |
| Tread hardness | 78 Shore A |
| Temperature | -20 °C to +60 °C |
| Weight | 0.15 kg |
| Material | Rubber |
