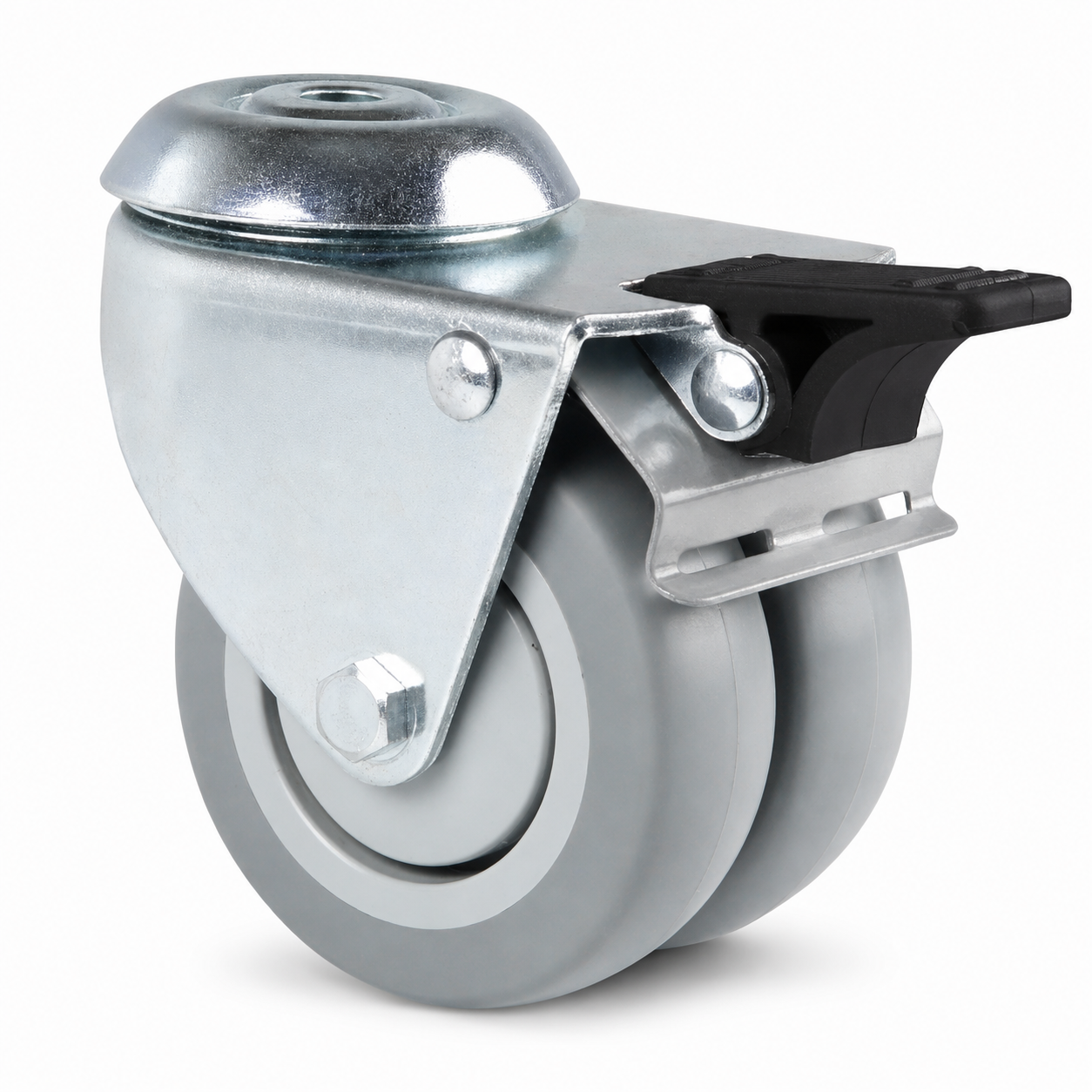

Grey twin wheel swivel castor 75 mm with bolt hole & total lock brake – rubber, non-marking

The grey twin wheel swivel castor 75 mm with bolt hole & total lock brake belongs to Serie-300-Apparaterollen-Reihe and is the particularly high-capacity twin castor for load carriers, displays and shopfitting. The non-marking, grey rubber wheel (thermoplastic TPE) runs quietly and gently on floors; the bright galvanised steel sheet housing is robust and corrosion-protected.

With a load capacity of 100 kg and a precision ball bearing in the wheel, the castor runs smoothly even under load. The total lock brake blocks the wheel and swivel ring at the same time and secures the load reliably when stationary. The bolt-hole fixing is fastened using a metric screw matching the bolt hole diameter.

• Wheel diameter: 75 mm
• Wheel width: 48 mm
• Overall height: 104 mm
• Offset: 28/33 mm
• Load capacity: 100 kg
• Wheel: grey rubber (TPE), non-marking, approx. 80 Shore A
• Brake: total lock brake (blocks wheel and swivel ring)
• Bearing: precision ball bearing in the wheel (with thread guards)
• Fixing: bolt hole (stem/screw fixing)
• Temperature range: −20 °C to +60 °C
• Housing & fork: steel sheet, bright galvanised

Typical areas of use: equipment and appliances, furniture and shelving, load carriers and displays, exhibition and shopfitting.
