Technical datasheet

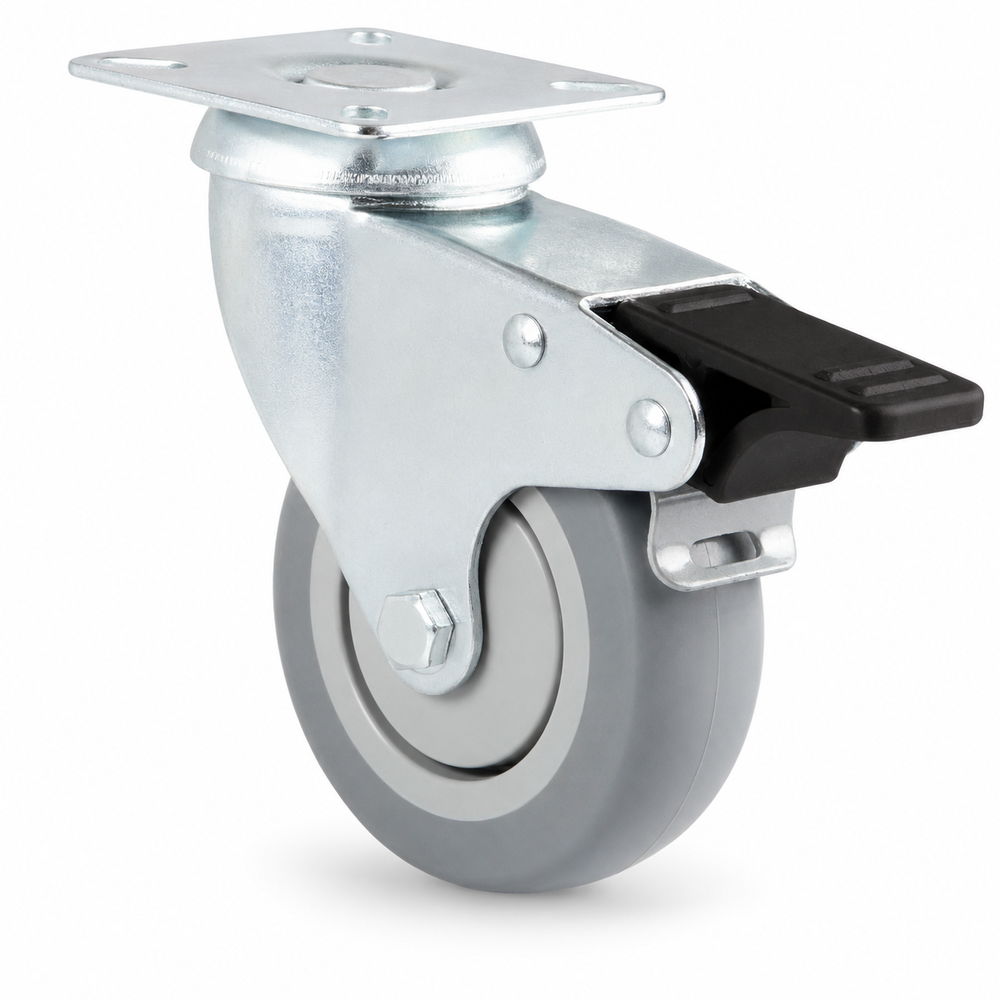

Grey swivel castor 100 mm with total lock brake – rubber, non-marking & quiet
Item number: LTB-APS/300K/100
castors-direct.com
Description
The grey swivel castor 100 mm with total lock brake is the largest brake version of the Serie-300-Apparaterollen. The total lock brake blocks the wheel and the swivel head at the same time; the non-marking grey rubber wheel (thermoplastic TPE) runs quietly and is gentle on floors. The bright galvanised steel sheet housing is robust and corrosion-protected. Typical areas of use: equipment and appliances, goods carriers and displays, mobile shelving systems, exhibition and shop fitting.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 24 mm |
| Load capacity | 90 kg |
| Overall height | 120 mm |
| Offset | 28/33 mm |
| Hole Ø | 6 mm |
| Bolt hole spacing | 47 × 47 mm |
| Plate size | 60 × 60 mm |
| Fastening | Plate |
| Temperature | -20 °C to +60 °C |
| Tread hardness | 78 Shore A |
| Material | Rubber |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
