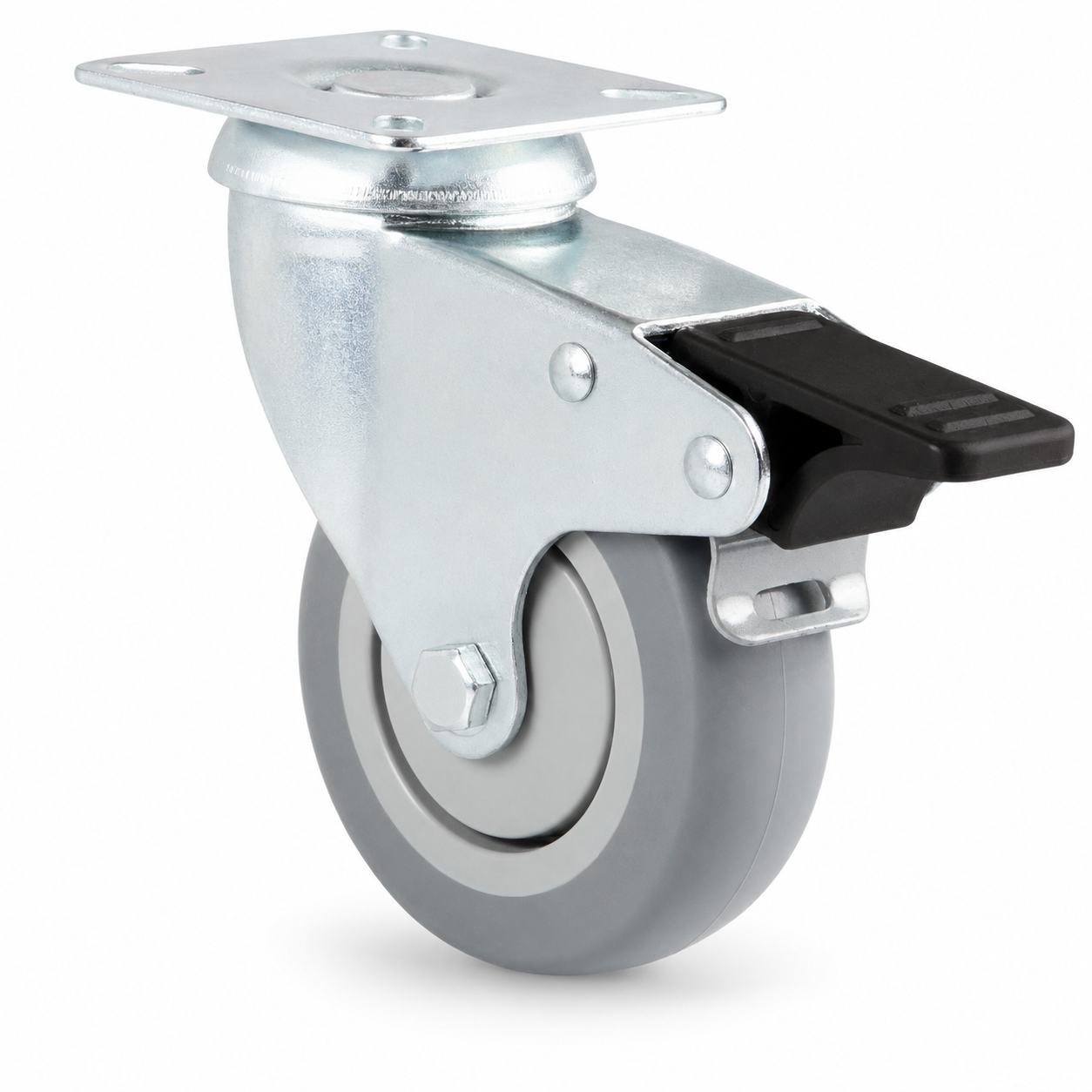

Grey swivel castor 75 mm with total lock brake – rubber, non-marking & quiet

Grey swivel castor with total lock brake – rubber, non-marking
19,77 €
incl. VAT
15,75 €
excl. VAT
Available immediately
approx. 1–3 days
Delivery is made from stock.
Customers rate us 4.6/5 based on 18 reviews.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

Technical data

Wheel diameter (D)
75 mm
Wheel width (B)
24 mm
Load capacity
50 kg
Overall height
104 mm
Offset
28/33 mm
Hole Ø
6 mm
Bolt hole spacing
47 × 47 mm
Plate size
60 × 60 mm
Fastening
  • Plate
Temperature
-20 °C to +60 °C
Tread hardness
78 Shore A
Material
Rubber

The grey swivel castor 75 mm with total lock brake combines quiet, non-marking running with secure standing at the push of a button – the total lock brake blocks wheel and swivel head simultaneously. The grey rubber wheel (thermoplastic TPE) protects the floor, and the bright galvanised steel plate housing is robust and corrosion-protected.

With a load capacity of 50 kg per castor and a precision ball bearing, it is ideal for mobile equipment, load carriers and shelving systems that need to be secured reliably.

  • Wheel Ø: 75 mm
  • Wheel width: 24 mm
  • Overall height: 104 mm
  • Offset: 28/33 mm
  • Load capacity: 50 kg
  • Wheel: grey rubber (TPE), non-marking, approx. 80 Shore A
  • Brake: total lock brake (blocks wheel and swivel head)
  • Bearing: precision ball bearing in the wheel (with thread guards)
  • Mounting: top plate 60 × 60 mm, bolt hole spacing 47 × 47 mm, bolt hole Ø 6 mm
  • Temperature range: −20 °C to +60 °C
  • Housing & fork: steel plate, bright galvanised

Typical applications: equipment and appliances, load carriers and displays, mobile shelving systems, exhibition and shopfitting.
