Grooved Profile Wheel Ø80×40 mm – Polyamide 6G for 40 mm Aluminum Profile

Compatibility: Suitable for 40 mm aluminum profile systems, including compatibility with profiles from item®, Fath®, and Bosch Rexroth® (groove width 6 / 8 / 10 / 12 mm depending on variant).

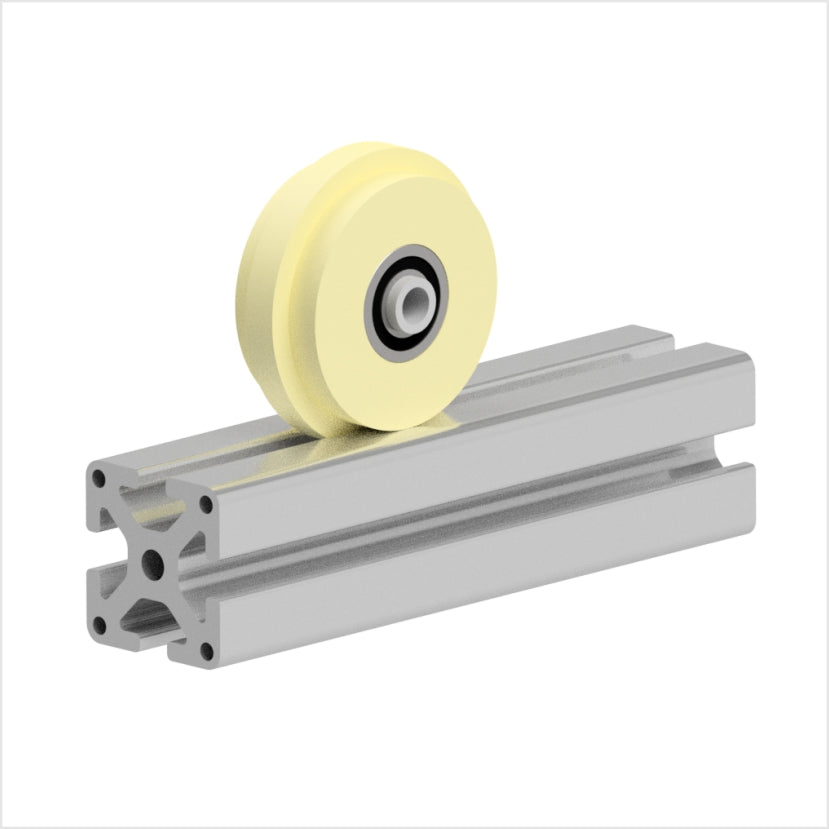

The Ø80×40 mm grooved profile wheel made of Polyamide 6G is specially designed for precise guidance in 40 mm aluminum profiles – for shelves, material trolleys, work tables or linear axes that require smooth and low-play movement. The groove geometry engages positively with the aluminum profile, enabling quiet linear movement without additional guiding elements. More application examples can be found on our solution page for conveying technology and mechanical engineering.

Bearing Versions

The grooved profile wheel is available in three versions:

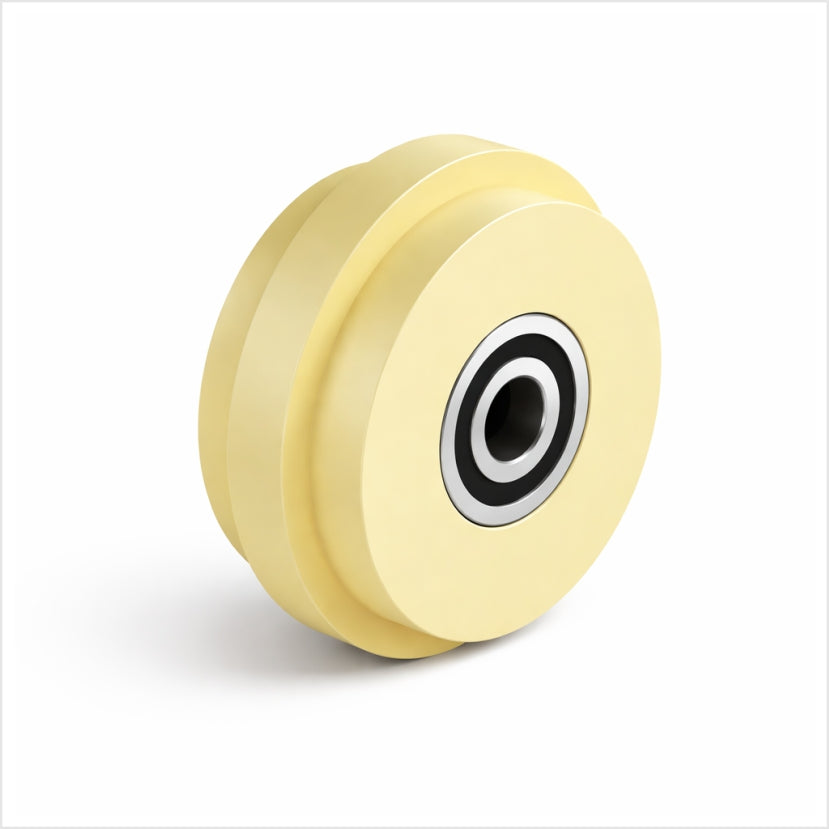

• With ball bearing: Double-sealed deep groove ball bearing made of steel – low maintenance, mountable directly on axle or bolt, for running wheels.
• With stainless steel ball bearing: Same as ball bearing version, but with stainless steel ball bearing for damp or corrosive environments.
• With hub keyway: Torsion-proof shaft connection according to DIN 6885 – for driven wheels or when the wheel needs to be firmly connected to the shaft.

Technical Features

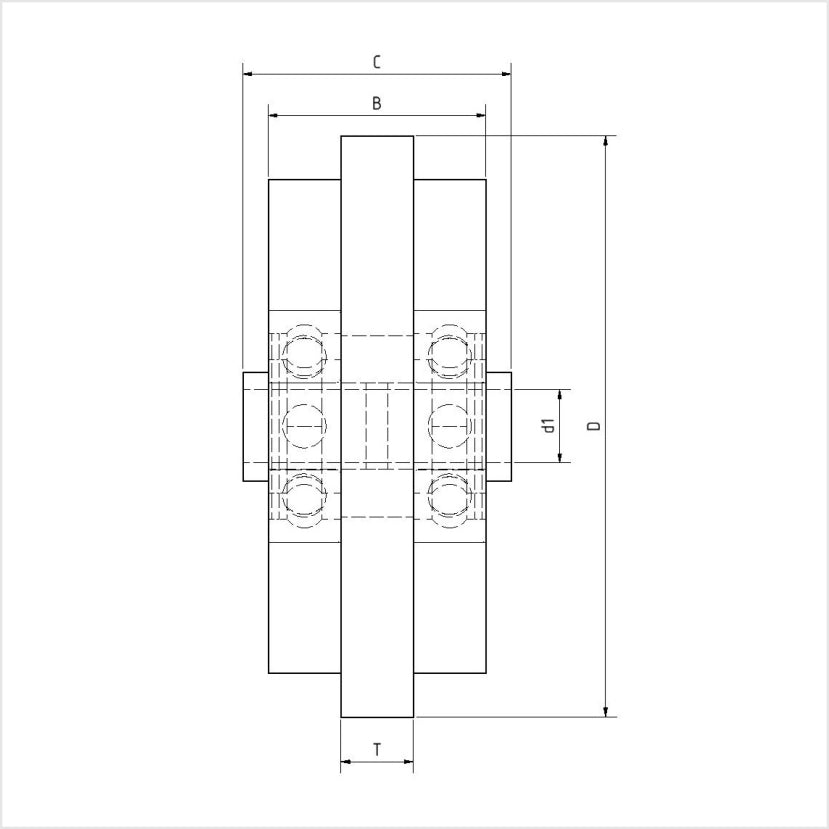

• Outer diameter: 80 mm
• Wheel width: 40 mm
• Hub length: 40 mm
• Bore: Ø6 mm
• Running width: 5.8 mm
• Groove width: 6 mm
• Load capacity: 220 kg
• Suitable for: 40 mm aluminum profile (item®, Fath®, Bosch Rexroth® etc.)
• Material: Polyamide 6G (PA6G), cast and turned
• Electrically non-conductive, food-grade

Areas of Application

• Shelving and storage systems with linear guidance
• Material trolleys and mobile work tables
• Linear axes in special machines and fixtures
• Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
• Intralogistics and light conveying technology

Notes

Please check the profile groove dimension and axle diameter before ordering. For the hub keyway version, DIN 6885 applies – suitable keyway dimensions can be found in the technical data. Special dimensions available upon request.

Brand Information / Compatibility Information

item®, Fath®, and Bosch Rexroth® are registered trademarks of their respective owners. The grooved profile wheels offered on this page are not original products from these manufacturers, but compatible accessories. The mention of brand names serves solely to describe compatibility.
