Technical datasheet

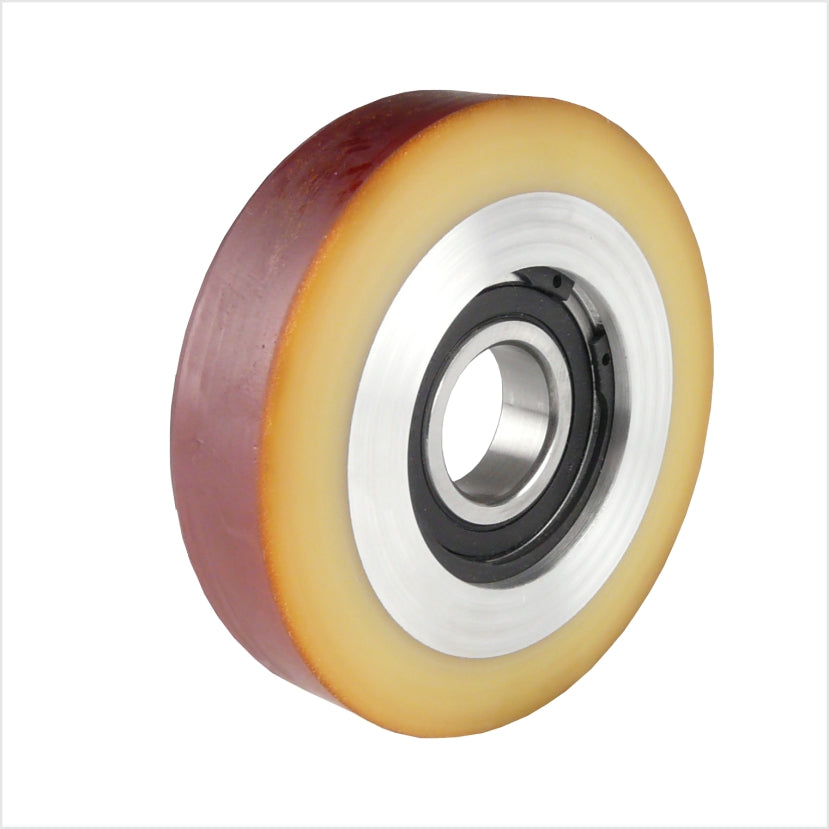

Guide roller | 100×30 mm | Vulkollan® | bore Ø15 mm | 220 kg | ball bearing
Item number: F-179KFL/100/30/25/15
Variant: default
Description
The guide roller 100×30 mm (with steel body and Vulkollan® tread (92 Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveyor technology, special-purpose machinery and intralogistics. Load capacity 220 kg, bore Ø15 mm, hub length 25 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 30 mm |
| Load capacity | 220 kg |
| Hub length (C) | 25 mm |
| Bore (d1) | 15 mm |
| Suitable for autoclaving | No |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Safety information
Guide rollers with an internal ball bearing are precision components that can cause damage or injury if handled or installed incorrectly. Installation: Make sure the guide roller is installed without tension and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load limits: ...
