Technisches Datenblatt

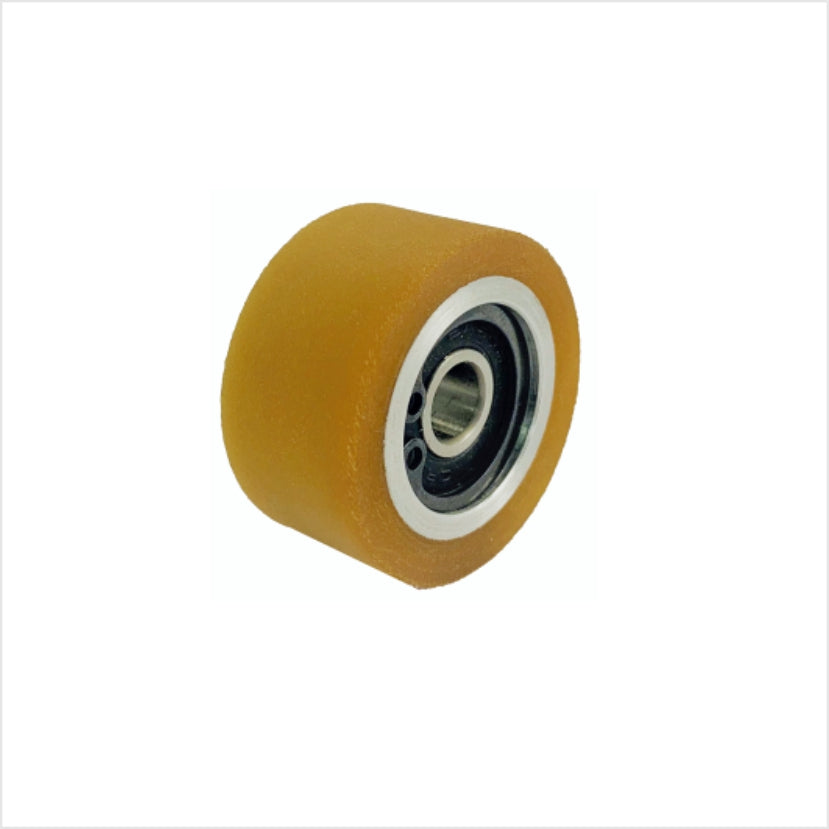

Guide Roller | 50×18 mm | Vulkollan® | Bore Ø7 mm | 95 kg | Ball Bearing
Artikelnummer: F-179KFL/50/18/20/7
Ausführung: default
Beschreibung
Guide Roller 50×18 mm – Vulkollan® 92° Shore A / Steel BodyThe 50×18 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearings) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 95 kg, bore Ø7 mm, hub length 20 mm – ready for immediate installation. Typical applications include guide rollers in conveyor technolog...
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 18 mm |
| Achsloch-Ø | 7 mm |
| Nabenlänge | 20 mm |
| Tragfähigkeit | 95 kg |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 5 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 0 |
| Verschleißbeständigkeit | 5 |
Hersteller
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Sicherheitshinweis
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
