Technisches Datenblatt

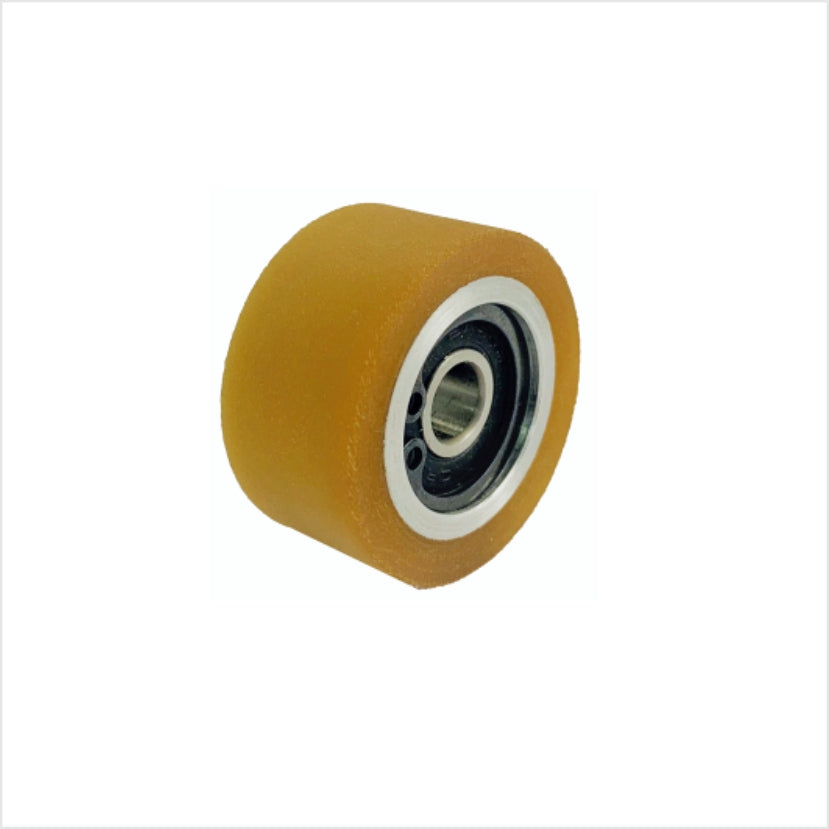

Guide Roller | 50×20 mm | Vulkollan® | Bore Ø10 mm | 100 kg | Ball Bearing
Artikelnummer: F-179KFL/50/20/12/10
Ausführung: default
Beschreibung
Guide roller 50×20 mm – Vulkollan® 92° Shore A / steel bodyThe 50×20 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 100 kg, bore Ø10 mm, hub length 12 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology ...
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 20 mm |
| Achsloch-Ø | 10 mm |
| Nabenlänge | 12 mm |
| Tragfähigkeit | 100 kg |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 5 |
| Dämpfung | 2 |
| Korrosionsbeständigkeit | 0 |
| Verschleißbeständigkeit | 5 |
Hersteller
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Sicherheitshinweis
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
