Technical datasheet

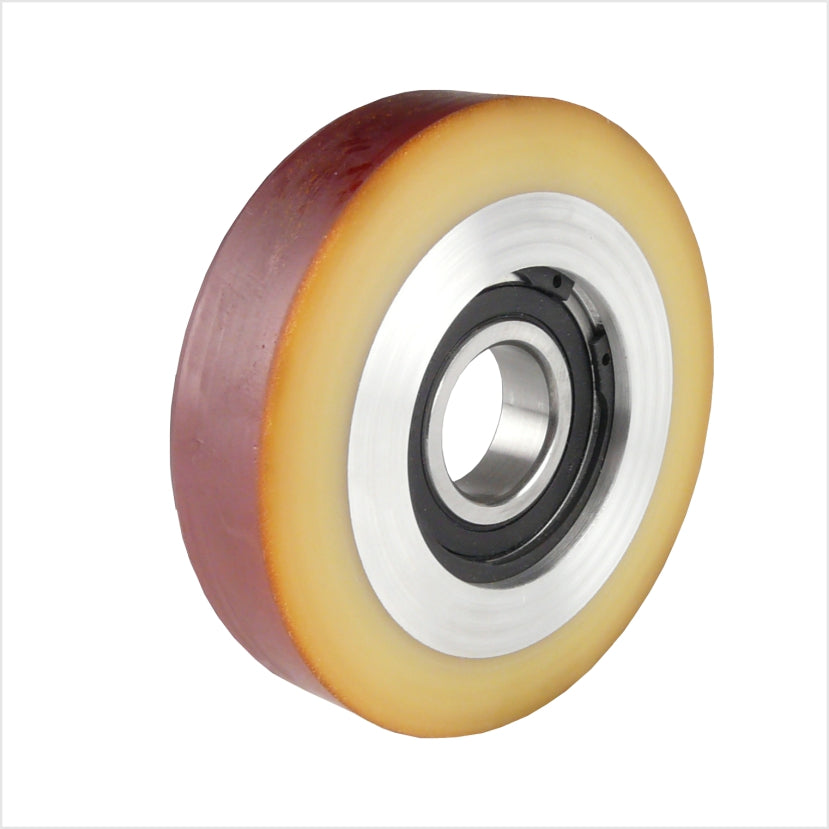

Guide roller | 80×25 mm | Vulkollan® | bore Ø15 mm | 170 kg | ball bearing

Item number: F-179KFL/80/25/20/15

Variant: default

Description

The guide roller 80×25 mm (with steel body and Vulkollan® tread (92 Shore A), ZZ precision ball bearing) is designed for precise guiding tasks in conveyor technology, special-purpose machinery and intralogistics. Load capacity 170 kg, bore Ø15 mm, hub length 20 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.

Guide roller 80×25 mm Vulkollan® ball bearing 170 kg bore Ø15 mm

Technical data

Wheel diameter (D) 80 mm
Wheel width (B) 25 mm
Load capacity 170 kg
Hub length (C) 20 mm
Bore (d1) 15 mm
Suitable for autoclaving No
Non-marking Yes
Non-marking Yes
Heat-resistant No

Manufacturer

rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987

Safety information

Guide rollers with an internal ball bearing are precision components that can cause damage or injury if handled or installed incorrectly. Installation: Make sure the guide roller is installed without tension and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load limits: ...
