Technical datasheet

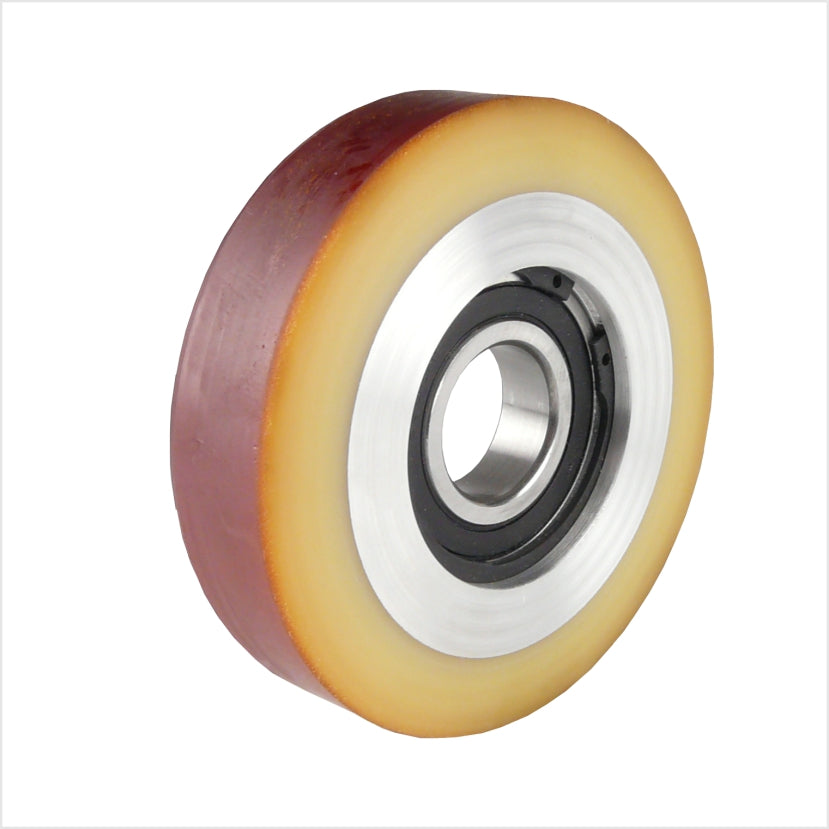

Guide Roller | 90×25 mm | Vulkollan® | Bore Ø12 mm | 190 kg | Ball Bearing
Item number: F-179KFL/90/25/25/12
Variant: default
Description
The 90×25 mm guide roller (with steel body and Vulkollan® tread (92° Shore A), ZZ precision ball bearings) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 190 kg, bore Ø12 mm, hub length 25 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering. Please check axle diameter and axial installation situation before ordering. The circlip is included in the scope of delivery.
Technical data
| Wheel diameter (D) | 90 mm |
|---|---|
| Wheel width (B) | 25 mm |
| Load capacity | 190 kg |
| Hub length (C) | 25 mm |
| Axle hole (d1) | 12 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
Manufacturer
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Safety information
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
