Technisches Datenblatt

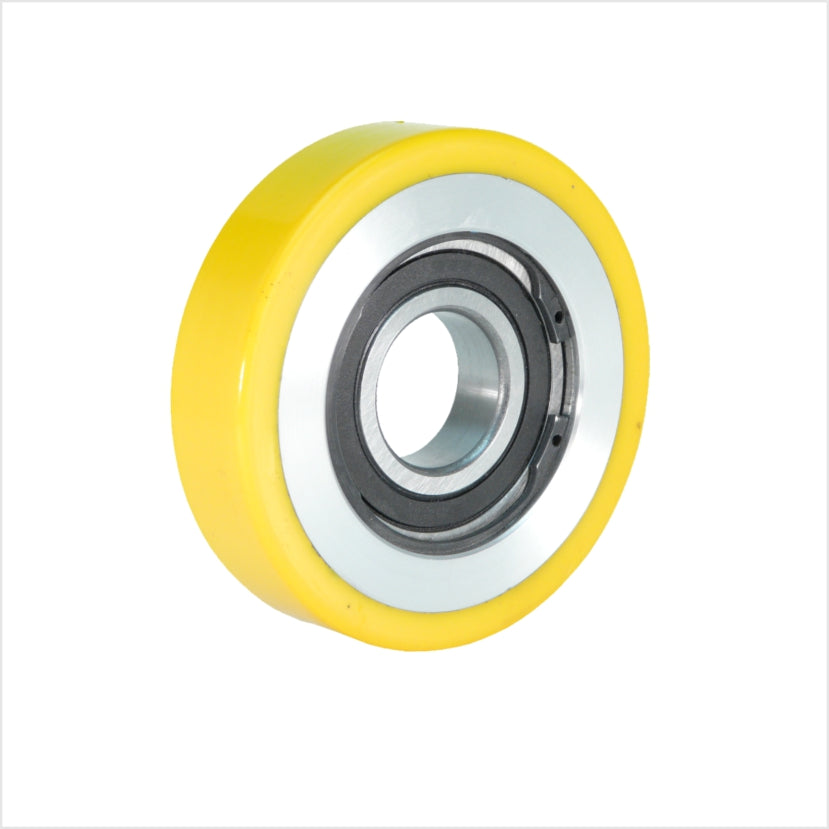

Guide Roller | 125×20 mm | Polyurethane/Aluminum | Bore Ø25 mm | 240 kg | Ball Bearing
Artikelnummer: F-690KFL/125/20/12/25
Ausführung: default
Beschreibung
Guide roller 125×20 mm – Polyurethane (MDI) / aluminum coreThe 125×20 mm guide roller (with polyurethane (MDI) tread and aluminum core, ball bearing in the center, secured with a circlip) is designed for precise guiding tasks in conveyor technology, special machines, and intralogistics. Load capacity 240 kg, bore Ø25 mm, hub length 20 mm – ready for direct installation. Typical applications include guide rollers i...
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 20 mm |
| Achsloch-Ø | 25 mm |
| Nabenlänge | 12 mm |
| Tragfähigkeit | 240 kg |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 3 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 3 |
| Material | Polyurethan MDI PU |
| Farbe | Gelb |
Hersteller
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Sicherheitshinweis
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
