Technisches Datenblatt

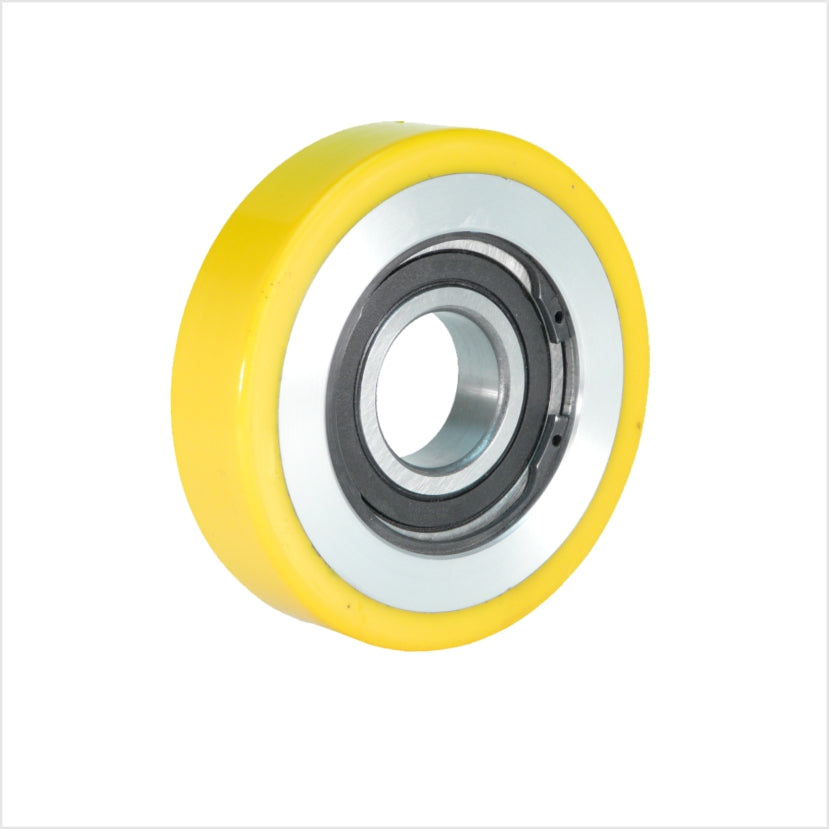

Guide roller | 125×25 mm | Polyurethane/aluminum | Bore Ø20 mm | 260 kg | Ball bearing
Artikelnummer: F-690KFL/125/25/12/20
Ausführung: default
Beschreibung
Guide roller 125×25 mm – Polyurethane (MDI) / aluminum coreThe 125×25 mm guide roller (with polyurethane (MDI) tread and aluminum core, central ball bearing, secured with circlip) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 260 kg, bore Ø20 mm, hub length 25 mm – ready for direct installation. Typical applications include guide rollers in conve...
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 25 mm |
| Achsloch-Ø | 20 mm |
| Nabenlänge | 12 mm |
| Tragfähigkeit | 260 kg |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 3 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 3 |
| Material | Polyurethan MDI PU |
| Farbe | Gelb |
Hersteller
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Sicherheitshinweis
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
