Technisches Datenblatt

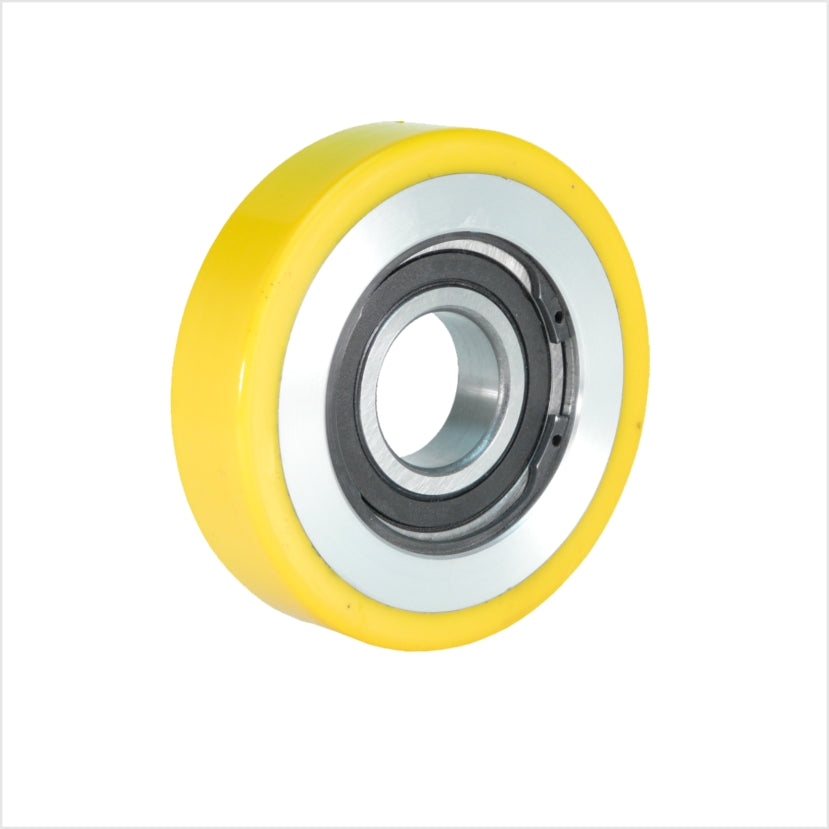

Guide roller | 125×40 mm | Polyurethane/Alu | Bore Ø25 mm | 400 kg | Ball bearing
Artikelnummer: F-690KFL/125/40/12/25
Ausführung: default
Beschreibung
Guide Roller 125×40 mm – Polyurethane (MDI) / Aluminum CoreThe 125×40 mm guide roller (with polyurethane (MDI) tread and aluminum core, ball bearing centered, secured with circlip) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 400 kg, bore Ø25 mm, hub length 40 mm – ready for direct installation. Typical applications include guide rollers in conv...
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 40 mm |
| Achsloch-Ø | 25 mm |
| Nabenlänge | 12 mm |
| Tragfähigkeit | 400 kg |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 3 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 3 |
| Verschleißbeständigkeit | 3 |
| Material | Polyurethan MDI PU |
| Farbe | Gelb |
Hersteller
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Sicherheitshinweis
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or installed improperly. Installation: Ensure that the guide roller is installed stress-free and precisely aligned. Misalignments can lead to increased wear or failure of the ball bearing. Load limits: Do...
