Technical datasheet

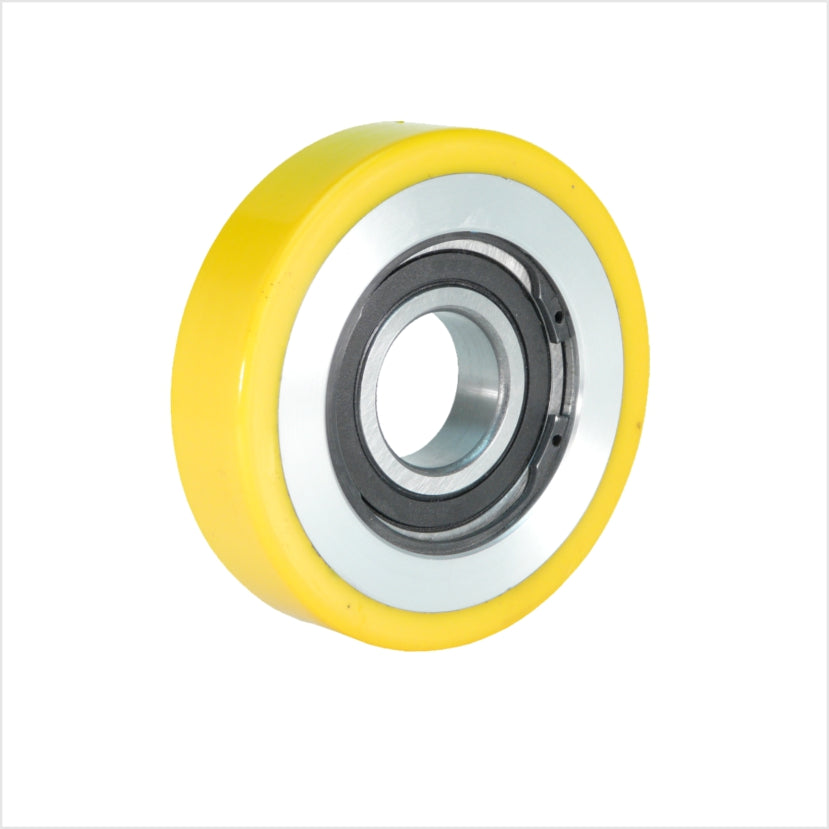

Guide roller | 140×31 mm | Polyurethane/Aluminum | Bore Ø30 mm | 350 kg | Ball bearing
Item number: F-690KFL/140/31/13/30
Variant: default
Description
The 140×31 mm guide roller (with polyurethane tread (MDI) and aluminum core, ball bearing in the center, secured with a circlip) is designed for precise guiding tasks in conveyor technology, special machinery, and intralogistics. Load capacity 350 kg, bore Ø30 mm, hub length 31 mm – ready for direct installation. Typical applications include guide rollers in conveyor technology and mechanical engineering.
Technical data
| Wheel diameter (D) | 140 mm |
|---|---|
| Wheel width (B) | 31 mm |
| Load capacity | 350 kg |
| Hub length (C) | 13 mm |
| Axle hole (d1) | 30 mm |
| Autoklaventauglich | No |
| Non-marking | Yes |
| Non-staining | Yes |
| Hitzebeständig | No |
Manufacturer
rollen-direkt.de | 59174 Kamen | info@rollen-direkt.de | +49 2307-9644987
Safety information
Guide rollers with internal ball bearings are precision components that can lead to damage or injury if handled or assembled improperly. Assembly: Ensure that the guide roller is mounted stress-free and precisely aligned. Misalignment can lead to increased wear or failure of the ball bearing. Load Limits: Do not ex...
