Technical datasheet

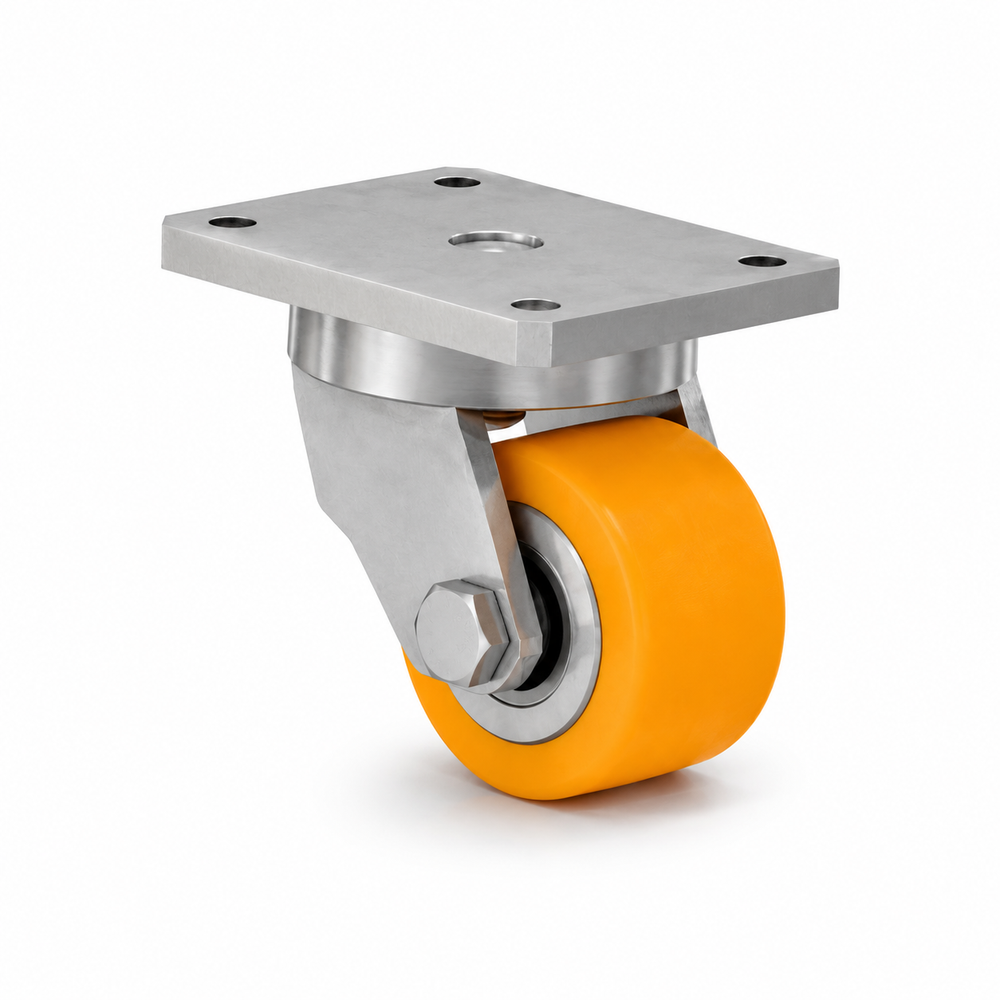

Heavy-duty swivel castor Ø 75 mm – polyurethane PU – 300 kg
Item number: L-M/690KBA/075/40
castors-direct.com
Description
The housing is made of welded steel, galvanised on the surface and thus protected against corrosion. The wheel is made of polyurethane with a solid aluminium core and a crowned tread, and runs on ball bearings for smooth, long-lasting movement. Load capacity: 300 kg. The swivel castor is used for internal transport of heavy loads on transport trolleys, machines and industrial systems. The crowned polyurethane tread protects the floor, reduces noise and makes steering easier on smooth factory floors.
Technical data
| Wheel diameter (D) | 75 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Load capacity | 300 kg |
| Overall height | 100 mm |
| Offset | 30 mm |
| Hole Ø | 9 mm |
| Bolt hole spacing | 80 x 60 mm |
| Plate size | 100 x 80 mm |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt
Safety information
Do not exceed the maximum load capacity per castor. Values apply to level, hard floor surfaces. Allow for load capacity losses due to wear.
