Technical datasheet

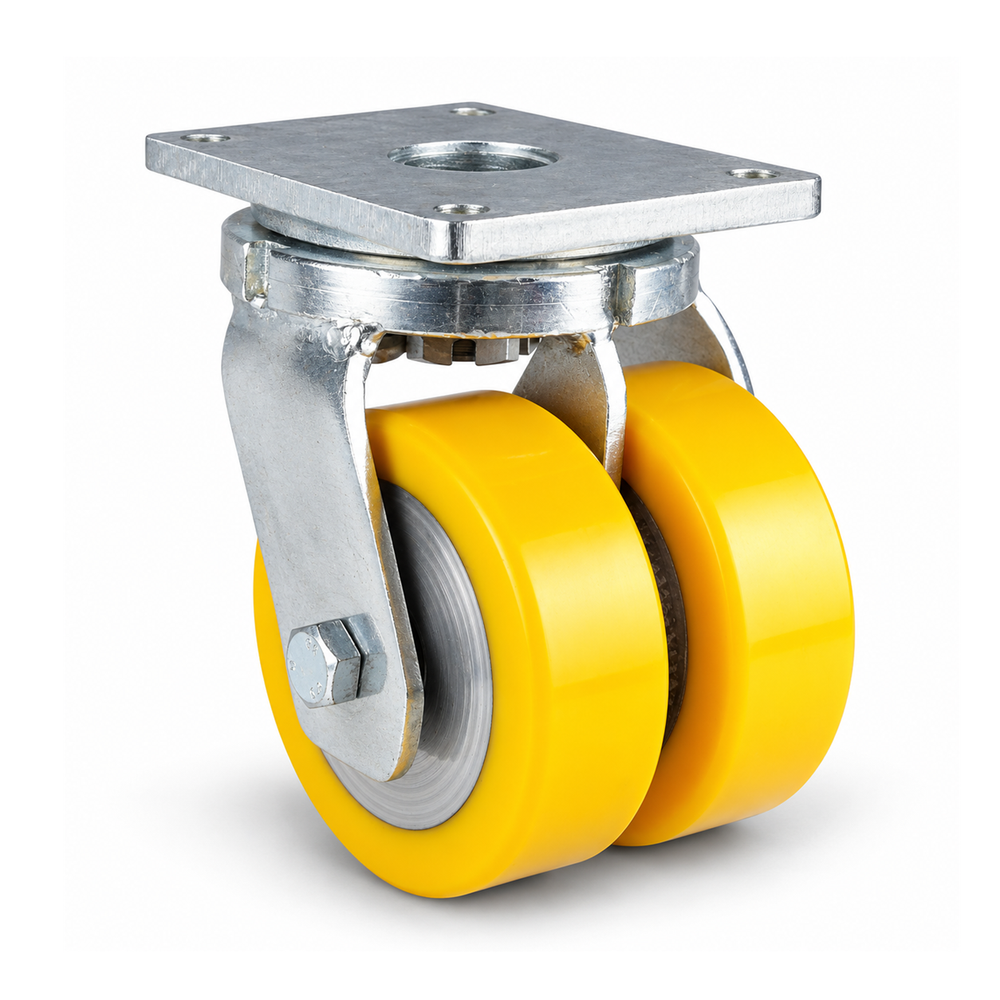

Heavy-duty swivel castor Ø 200 mm twin wheel – polyurethane PU – 2000 kg
Item number: L-MGGS/690KFL/200/50
castors-direct.com
Description
The housing is made of welded steel, galvanised on the surface and therefore protected against corrosion. The wheel is made of polyurethane with a solid aluminium core and flat tread, and runs on ball bearings for smooth, long-lasting operation. The twin-wheel design distributes the load across two wheels with a low overall height. Load capacity: 2000 kg.
Technical data
| Wheel diameter (D) | 200 mm |
|---|---|
| Wheel width (B) | 100 mm |
| Load capacity | 2000 kg |
| Overall height | 265 mm |
| Offset | 65 mm |
| Hole Ø | 14 mm |
| Bolt hole spacing | 140 x 110 mm |
| Plate size | 175 x 140 mm |
| Temperature | -20 °C to +80 °C |
Manufacturer
rollen-direkt
Safety information
Do not exceed the maximum load capacity per castor. Values apply to level, hard floor surfaces. Allow for load capacity losses due to wear.
