Technical datasheet

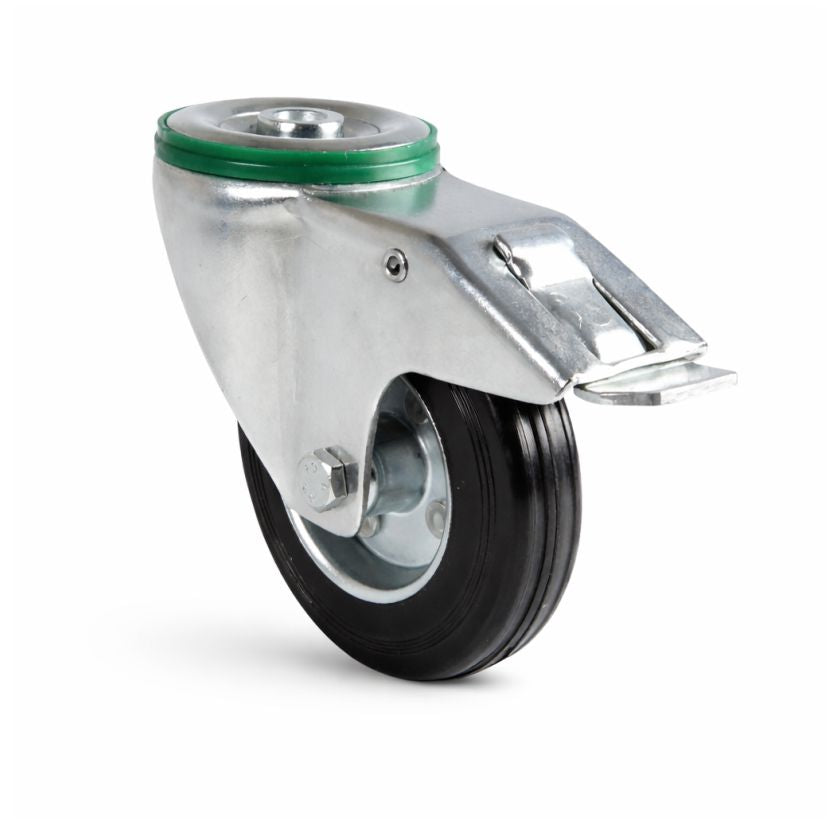

Transport swivel castor with bolt hole & brake Ø 100 mm – solid rubber, 70 kg
Item number: RTB-T/80R/100
Variant: Black
castors-direct.com
Description
The housing is made of welded sheet steel, surface galvanised and therefore protected against corrosion. The wheel is made of solid rubber (65 Shore A) on a galvanised sheet steel rim and runs in a roller bearing – available in black (series 80R) or non-marking blue-grey (series 81R, non-staining on contact). Load capacity: 70 kg.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 30 mm |
| Load capacity | 70 kg |
| Offset | 37/45 mm |
| Hole Ø | 13 mm |
| Overall height | 125 mm |
| Weight | 0.9 kg |
| Tread hardness | 65 Shore A |
| Temperature | -20 °C to +70 °C |
| Material | Rubber |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
