Technical datasheet

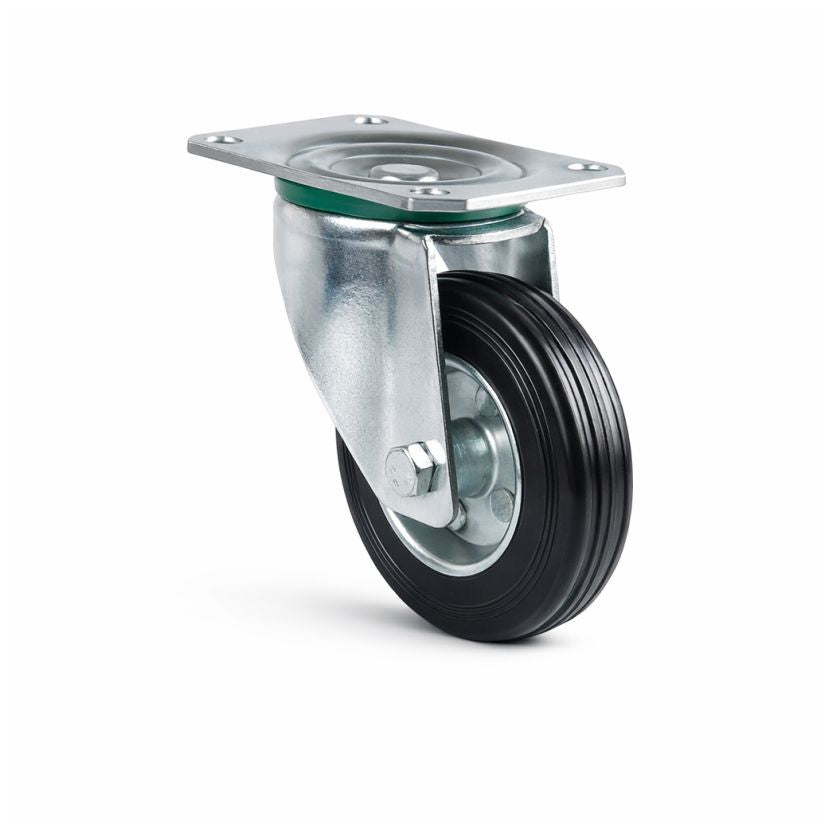

Transport swivel castor Ø 100 mm – solid rubber, 70 kg
Item number: L-T/80R/100
Variant: Black
castors-direct.com
Description
The housing is made of welded steel sheet, galvanised on the surface and therefore protected against corrosion. The wheel is made of solid rubber (65 Shore A) on a galvanised steel sheet rim and runs on a roller bearing – available in black (series 80R) or non-marking blue-grey (series 81R, non-staining on contact). Load capacity: 70 kg.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 30 mm |
| Load capacity | 70 kg |
| Overall height | 125 mm |
| Offset | 37/40 mm |
| Hole Ø | 9 mm |
| Bolt hole spacing | 80 x 60 mm |
| Plate size | 105 x 80 mm |
| Fastening | Plate |
| Weight | 0.75 kg |
| Temperature | -20 °C to +70 °C |
| Tread hardness | 65 Shore A |
| Material | Rubber |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
