Heavy-duty swivel castor Ø 150 mm – polyurethane PU – 800 kg

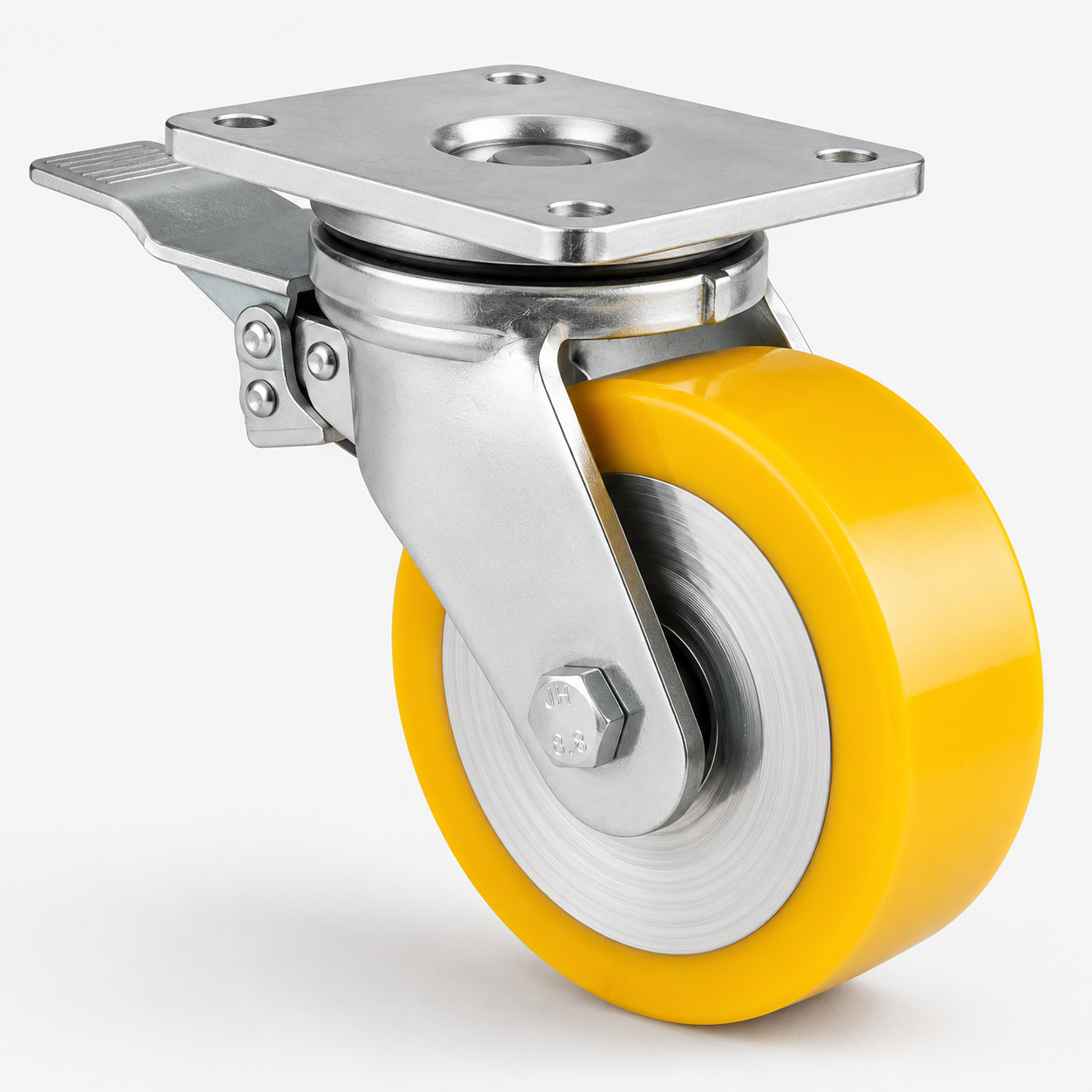

Heavy-duty swivel castor with brake Ø 150 mm – polyurethane PU – 800 kg – LTB-MG/690KFL/150/50
291,66 €
incl. VAT
232,40 €
excl. VAT
Made to order
approx. 7–12 days
The item will be produced after receipt of your order.
  • Free shipping from €99 net
  • Delivery in 1–3 working days
  • Personal advice: +49 2307 9644987
  • Specialist retailer online since 2004

Technical data

Wheel diameter (D)
150 mm
Wheel width (B)
50 mm
Load capacity
800 kg
Overall height
200 mm
Offset
55 mm
Hole Ø
11 mm
Bolt hole spacing
105 x 80 mm
Plate size
140 x 110 mm
Temperature
-20 °C to +80 °C

Heavy-duty swivel castor with brake Ø 150 mm – polyurethane wheel

The housing is made of welded steel, galvanised on the surface and therefore protected against corrosion. The wheel is made of polyurethane with a solid aluminium core and flat tread, and runs on ball bearings for smooth, long-lasting operation. Load capacity: 800 kg.

The swivel castor with total lock brake blocks both the wheel and the swivel head at the same time, securing heavy loads reliably when stationary; it is used on transport trolleys, machines and industrial equipment. The polyurethane tread protects sensitive floors and reduces noise levels – ideal in workshops, warehouses and halls.
