Technisches Datenblatt

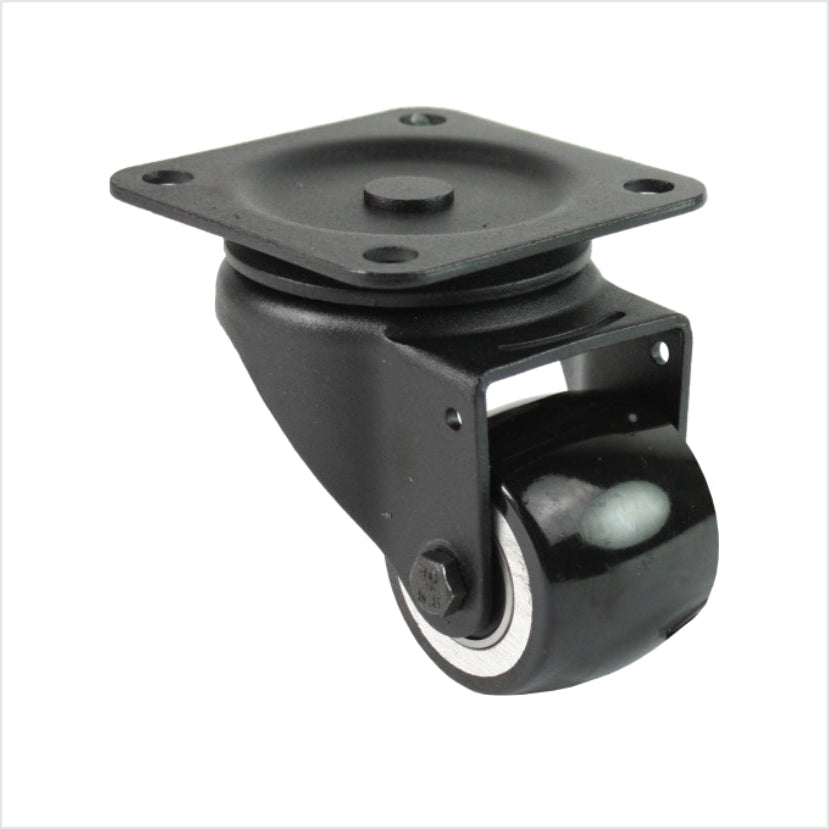

50mm Mini Heavy Duty Swivel Castor | 150 kg | Plate 80 x 80 mm | Floor-Friendly & Wide Wheel | Design Black
Artikelnummer: L-MIB/691KFL/050/40
Ausführung: flat
castors-direct.com
Beschreibung
This black mini heavy-duty swivel castor combines extreme load capacity with a compact design. With a load capacity of 150 kg and a wheel diameter of only 50 mm, it is the ideal choice for low-profile constructions that need to move heavy loads. The wide, floor-friendly tread ensures optimal pressure distribution and protects sensitive industrial floors. Flat Tread maximum contact area high stability ideal for fl...
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 83 mm |
| Tragfähigkeit | 150 kg |
| Plattenmaß | 80x80 mm |
| Lochbild | 60x60 mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 6.5 mm |
| Bauhohe | 83 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 50 mm |
| Tragkraft | 150.0 kg |
| Material | Polyurethane (PU), Stahl |
| Farbe | black |
| Tragfähigkeitsklasse | up to 250 kg |
| Gewicht | 180 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
