Technical datasheet

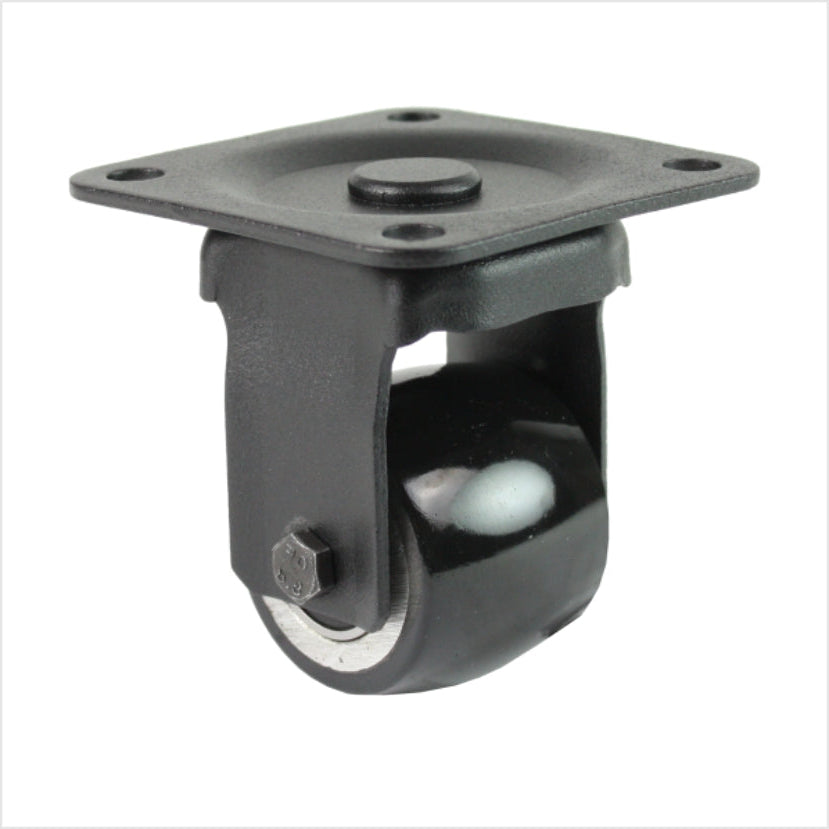

50 mm Mini Heavy Duty Fixed Castor | 150 kg | Plate 80 x 80 mm | Floor-Friendly & Wide Wheel | Black Design
Item number: B-MIB/691KFL/050/40
Variant: flat
castors-direct.com
Description
The perfect addition for true-tracking transports: Our 50 mm Mini Heavy Duty Fixed Castor offers maximum directional stability. In combination with swivel castors, it enables precise maneuvering of heavy loads up to 150 kg. The wide wheel ensures smooth running and protects the floor, while the black finish adds a professional touch. Design: Fixed castor (rigid) for stable straight-line travel. Load: 150 kg per castor. Tread: Floor-friendly material, extra wide design.
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 40 mm |
| overall height | 83 mm |
| Load capacity | 150 kg |
| Lochbild | 60x60 mm |
| Plattenmaß | 80x80 mm |
| Befestigung | plate attachment |
| Tread hardness | 92 Shore A |
| Temperatur | -20° / +80°C |
| Gewicht | 180 g |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
