Technisches Datenblatt

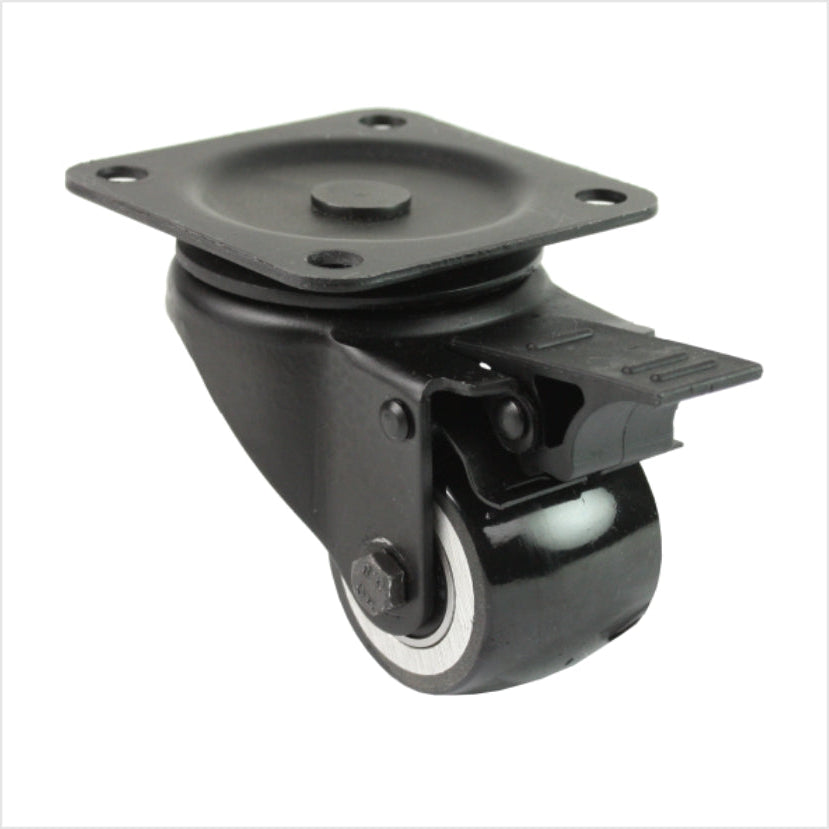

50 mm Mini Heavy Duty Swivel Castor | 150 kg | Plate 80 x 80 mm | Brake | Floor-Friendly & Wide Wheel | Black Design
Artikelnummer: LTB-MIB/691KFL/050/40
Ausführung: flat
castors-direct.com
Beschreibung
Maximum safety in a compact space: The 50 mm Mini Heavy-Duty Swivel Castor with Brake blocks both wheel movement and the swivel head (total lock). The black housing and wide wheel design guarantee stability and a modern aesthetic. Despite its low overall height, this castor effortlessly handles 150 kg. Braking System: Integrated total lock for secure positioning. Mounting: Sturdy 80 x 80 mm mounting plate. W...
Technische Daten
| Rad-Ø | 50 mm |
|---|---|
| Radbreite | 40 mm |
| Bauhöhe | 83 mm |
| Tragfähigkeit | 150 kg |
| Plattenmaß | 80x80 mm |
| Lochbild | 60x60 mm |
| Ausladung / Drehradius | 15mm |
| Befestigung | plate attachment |
| Temperaturbereich | -20° / +80°C |
| Kontaktverfärbungsfrei | Ja |
| Spurlos | Ja |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 4 |
| Dämpfung | 3 |
| Korrosionsbeständigkeit | 4 |
| Verschleißbeständigkeit | 4 |
| Anschraubloch | 6.5 mm |
| Bauhohe | 83 mm |
| Radbreite | 40.0 mm |
| Rad durchmesser | 50 mm |
| Tragkraft | 150.0 kg |
| Material | Polyurethane (PU) |
| Farbe | black |
| Tragfähigkeitsklasse | up to 250 kg |
| Gewicht | 200 g |
Hersteller
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
