Technical datasheet

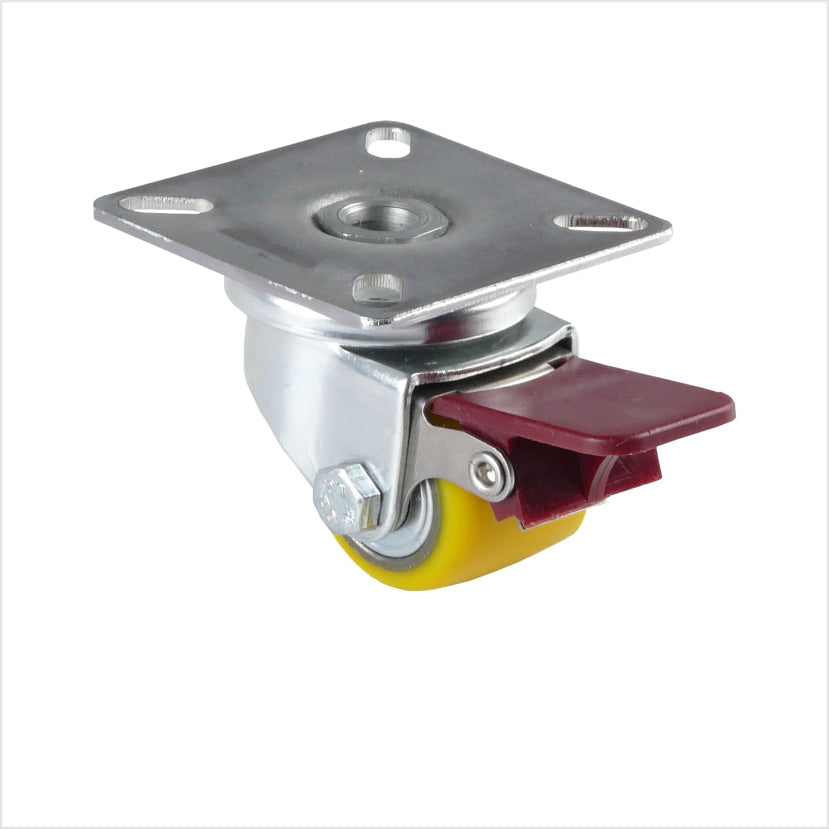

Mini heavy-duty swivel castor 120kg Ø35mm – with top plate & brake – only 52 mm overall height
Item number: LRB-MIS/690K/035
Description
Compact heavy-duty castor in miniature format - high load capacity in the smallest possible space. The yellow polyurethane wheel runs quietly, gently on floors, and with good grip on both smooth and rough surfaces. Mounting via a 60 × 60 mm flange plate, simple screw fastening without special tools. The integrated brake securely locks the castor in any position.
Technical data
| Wheel diameter (D) | 35 mm |
|---|---|
| Wheel width (B) | 27 mm |
| Load capacity | 120 kg |
| Overall height | 52 mm |
| Ausladung | 15mm |
| Schraubloch-Ø | 6 mm |
| Lochbild | 47x47mm |
| Plattenmaß | 60x60mm |
| Fastening | Plate |
| Gewicht | 100 g |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
Safety information
Solely for the transport and guidance of goods. Passenger transport not permitted. Before assembly, shut down and secure the system. Screw the roller firmly and without play – loose fastening can lead to accidents. Regularly check for tight fit, wear and damage. Replace damaged rollers immediately.
