Technical datasheet

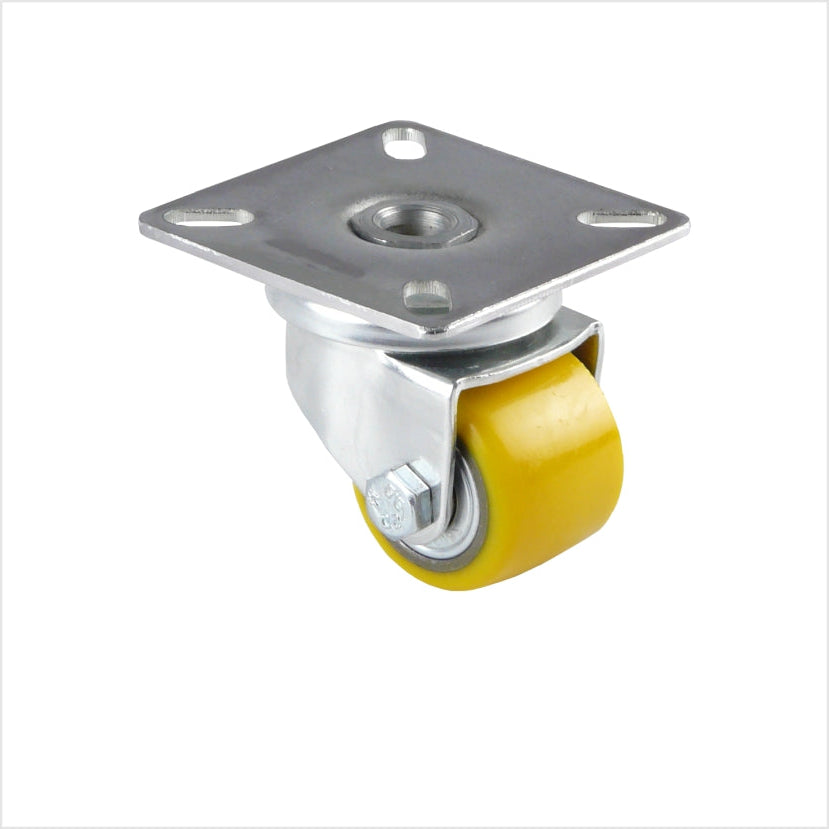

Mini heavy-duty swivel castor 120kg Ø35mm – with top plate – compact & load-bearing – 52mm overall height
Item number: L-MIS/690K/035
Description
This high-quality mini heavy-duty castor impresses with its extremely compact design and a robust top plate (60 × 60 mm). The non-marking polyurethane wheel with precision ball bearing ensures easy running, high smoothness and floor protection – even under high load. With an overall height of only 52 mm and a load capacity of an impressive 120 kg, this swivel castor is a true powerhouse in mini format. Ideal for applications where little space is available but maximum stability is required. Typical applications:
Technical data
| Wheel diameter (D) | 35 mm |
|---|---|
| Wheel width (B) | 27 mm |
| Load capacity | 120 kg |
| Overall height | 52 mm |
| Offset | 15 mm |
| Hole Ø | 6 mm |
| Bolt hole spacing | 47x47 mm |
| Plate size | 60x60 mm |
| Fastening | Plate |
| Weight | 100 g |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 92 Shore A |
| Material | Polyurethane (PU) |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - pho. 02307 - 9644987
Safety information
For the transport and guidance of goods only. Passenger transport not permitted. Before installation, shut down and secure the system. Bolt the castor firmly and without play – loose fastening can lead to accidents. Check regularly for secure seating, wear and damage. Replace damaged castors immediately.
