Technical datasheet

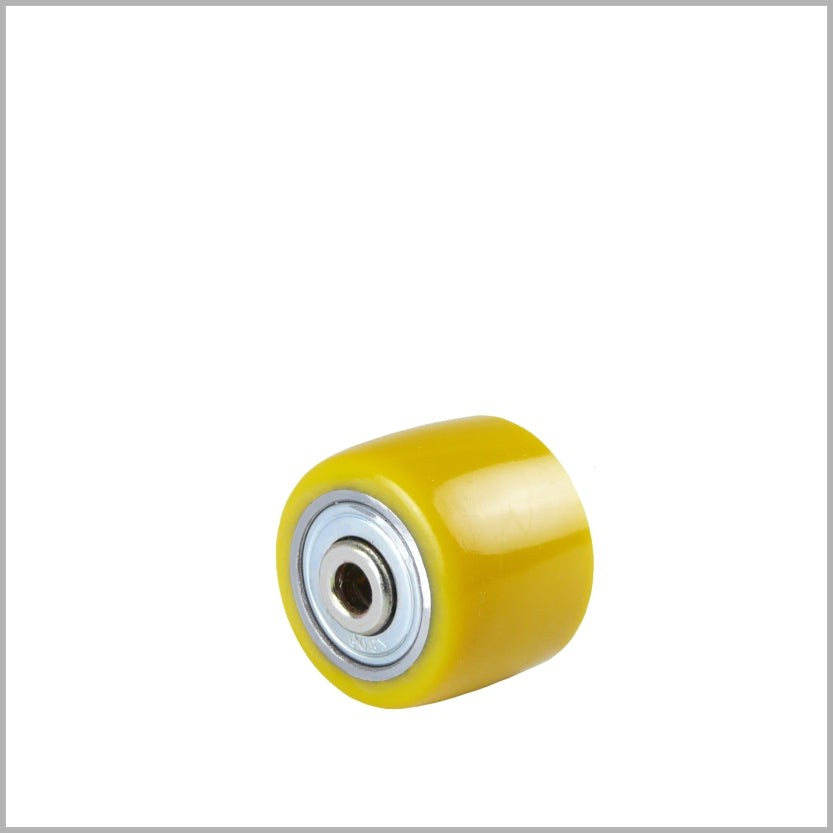

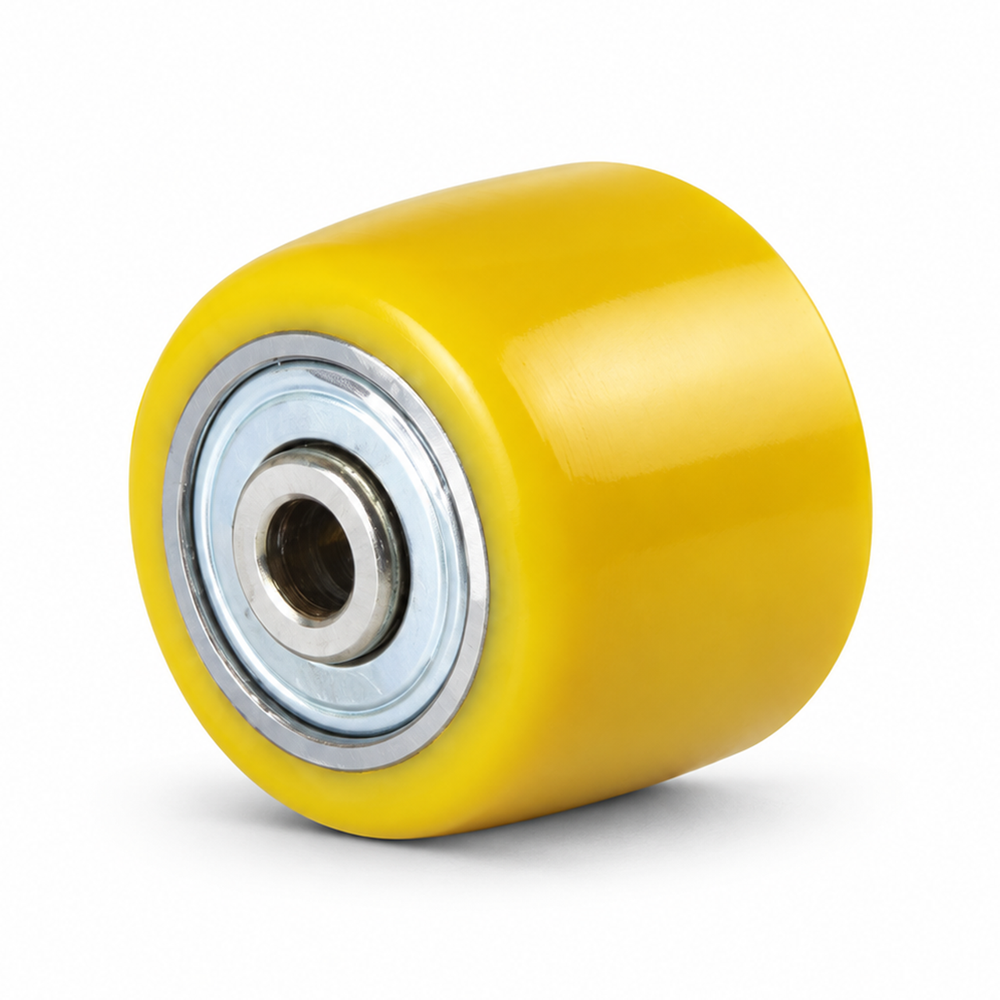

35 × 27 mm Mini heavy-duty wheel polyurethane with solid aluminium core – 100 kg, ball bearing
Item number: 690KFL/035/27/30/08
castors-direct.com
Description
35 x 27 mm mini heavy-duty wheel made of polyurethane Shore 92° A. with deep groove ball bearings Aluminum rim flat running surface
Technical data
| Wheel diameter (D) | 35 mm |
|---|---|
| Wheel width (B) | 27 mm |
| Hub length (C) | 30 mm |
| Bore (d1) | 8 mm |
| Load capacity | 100 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
