Grooved Profile Wheel | Ø100×40 mm | Polyamide | 40 mm Profile | 6 mm Profile Groove | 280 kg

Groove Profile Wheel Ø100×40 mm – Polyamide 6G for 40 mm Aluminum Profile

Compatibility: Suitable for 40 mm aluminum profile systems, including compatibility with profiles from item®, Fath®, and Bosch Rexroth® (groove width 6 / 8 / 10 / 12 mm depending on variant).

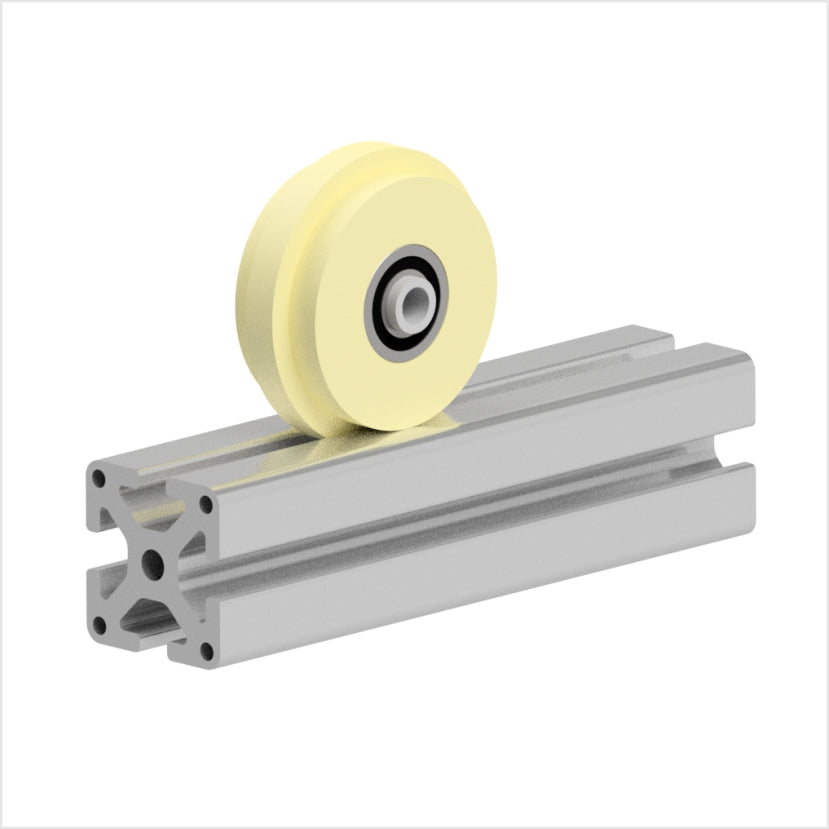

The Ø100×40 mm groove profile wheel made of Polyamide 6G is specifically designed for precise guidance in 40 mm aluminum profiles – for shelves, material trolleys, work tables, or linear axes that need to move smoothly and with minimal play. The groove geometry engages positively with the aluminum profile and enables quiet linear movement without additional guide elements. More application examples can be found on our Solutions page for Conveyor Technology and Mechanical Engineering.

Bearing Options

The groove profile wheel is available in three variants:

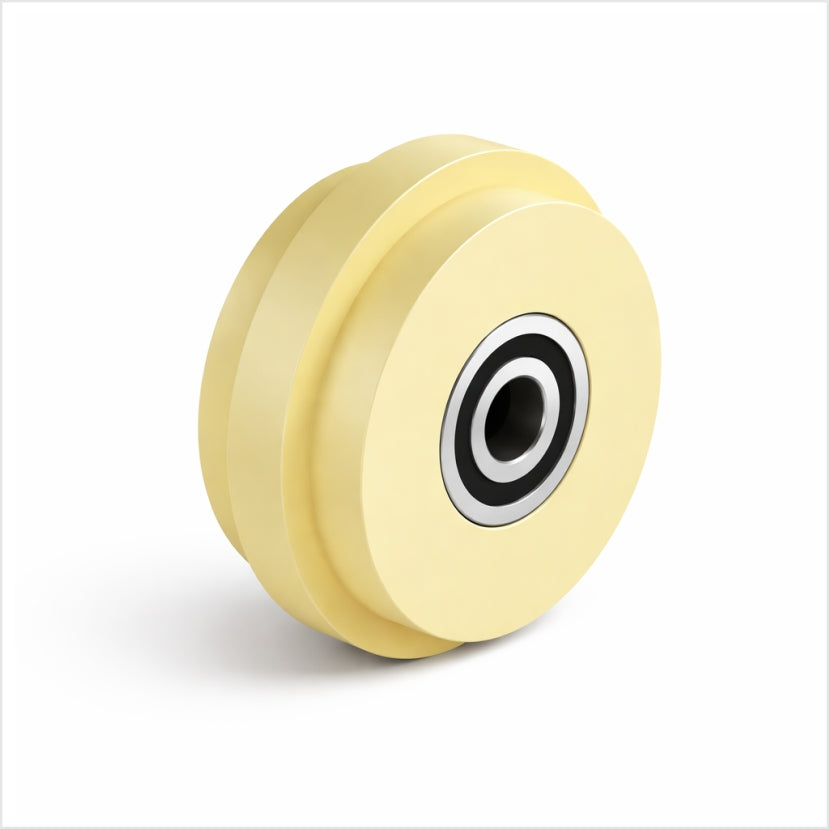

• With Ball Bearing: Double-sealed deep groove ball bearing made of steel – low maintenance, can be mounted directly on an axle or bolt, for trailing wheels.
• With Stainless Steel Ball Bearing: Same as the ball bearing version, but with a stainless steel ball bearing for damp or corrosive environments.
• With Hub Keyway: Torque-proof shaft connection according to DIN 6885 – for driven wheels or when the wheel is to be firmly connected to the shaft.

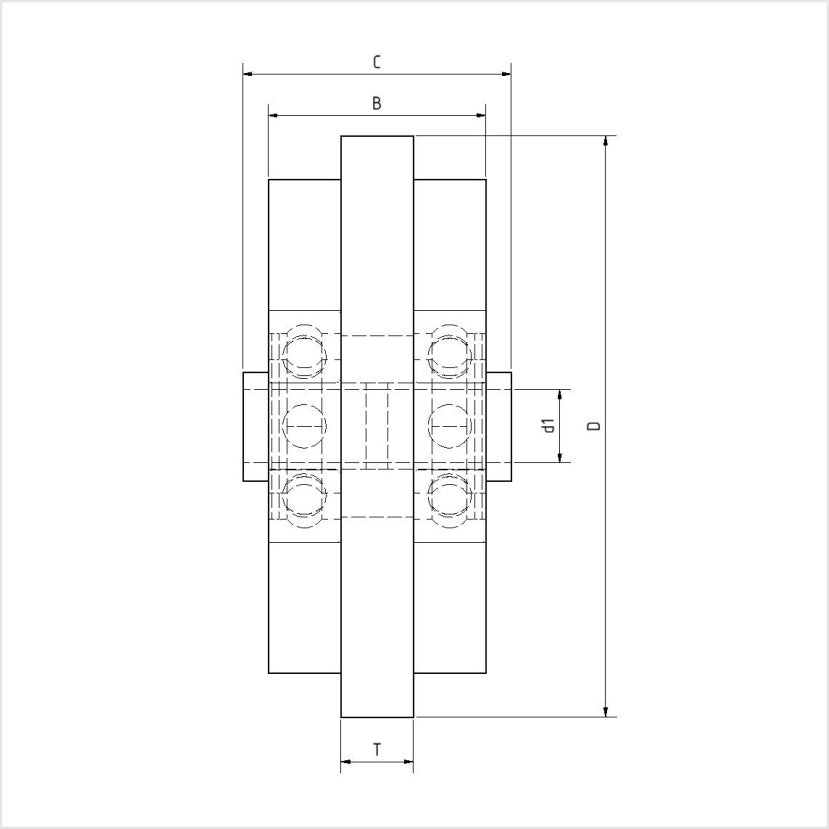

Technical Features

• Outer Diameter: 100 mm
• Wheel Width: 40 mm
• Hub Length: 40 mm
• Bore: Ø6 mm
• Running Width: 5.8 mm
• Groove Width: 6 mm
• Load Capacity: 280 kg
• Suitable for: 40 mm aluminum profile (item®, Fath®, Bosch Rexroth®, etc.)
• Material: Polyamide 6G (PA6G), cast and turned
• Electrically non-conductive, food-grade

Areas of Application

• Shelves and storage systems with linear guidance
• Material trolleys and mobile work tables
• Linear axes in special machines and fixtures
• Assembly systems with profile rail systems (item®, Fath®, Bosch Rexroth®)
• Intralogistics and light conveying technology

Notes

Please check the profile groove dimensions and axle diameter before ordering. For the hub keyway version, DIN 6885 applies – suitable keyway dimensions can be found in the technical data. Special dimensions available upon request.

Brand Notice / Compatibility Notice

item®, Fath®, and Bosch Rexroth® are registered trademarks of their respective owners. The groove profile wheels offered on this page are not original products from these manufacturers, but compatible accessories. The mention of brand names serves exclusively to describe compatibility.
