Technical datasheet

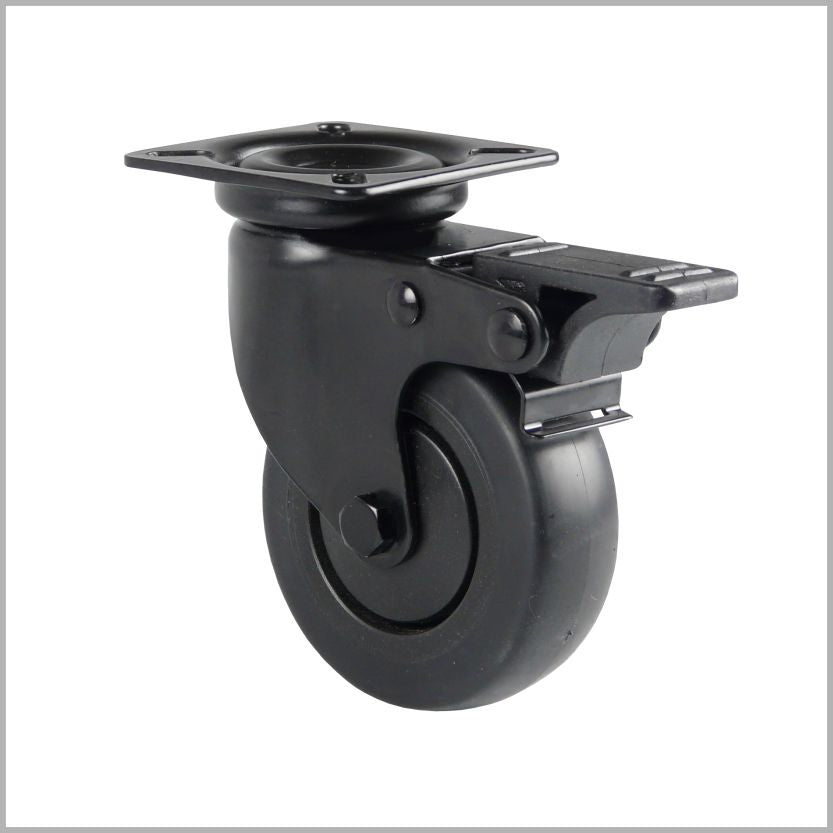

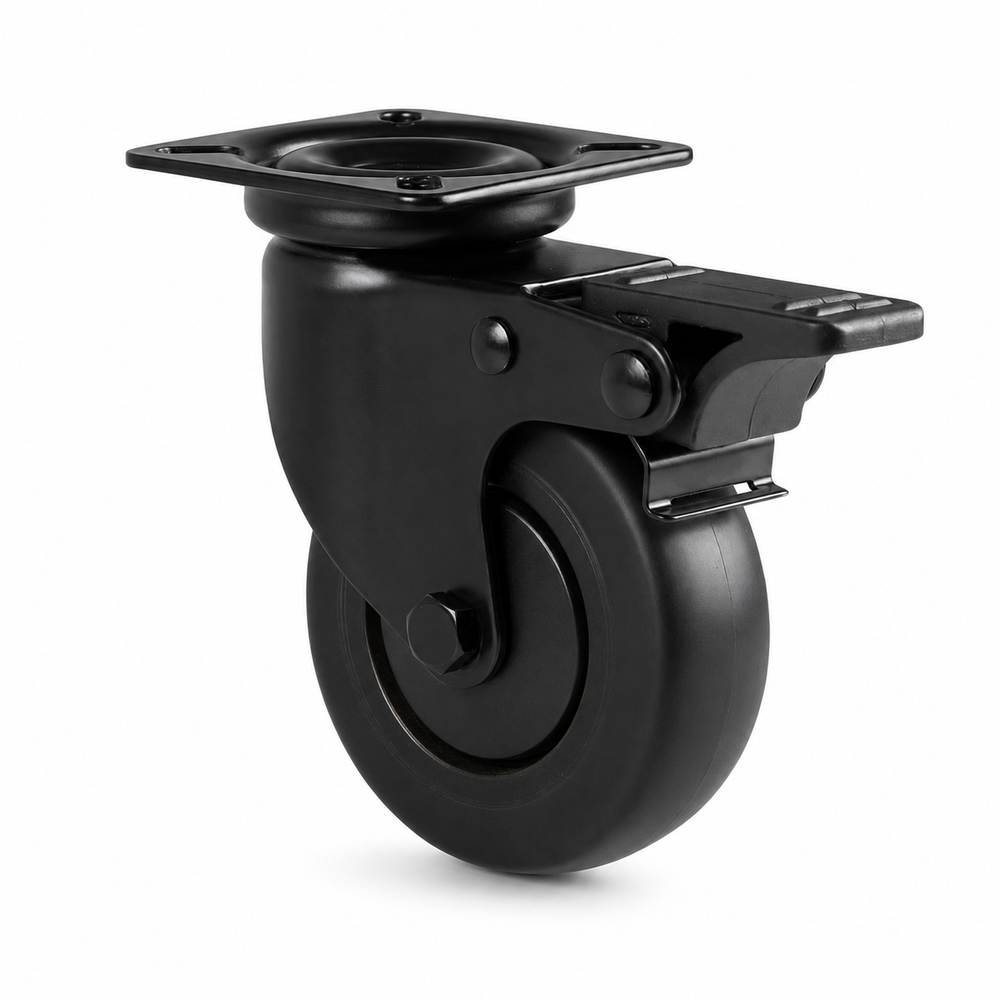

Black swivel castor 50 mm with total lock brake – rubber for display stands & shopfitting
Item number: LTB-APS/310K/050
castors-direct.com
Description
The black swivel castor 50 mm with total lock brake has been developed specifically for use on mobile goods carriers, displays and in shop fitting. The non-marking rubber wheel enables quiet, floor-friendly movement of shelves and presentation areas; the total lock brake ensures secure standing in the sales area with a single foot action – wheel and swivel head are locked at the same time.
Technical data
| Wheel diameter (D) | 50 mm |
|---|---|
| Wheel width (B) | 18 mm |
| Load capacity | 50 kg |
| Overall height | 73 mm |
| Hole Ø | 6 mm |
| Bolt hole spacing | 45 x 45 mm Angled hole |
| Plate size | 60x60mm |
| Fastening | Plate |
| Weight | 120 g |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 72 Shore A |
| Material | Rubber, Steel |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
