Technical datasheet

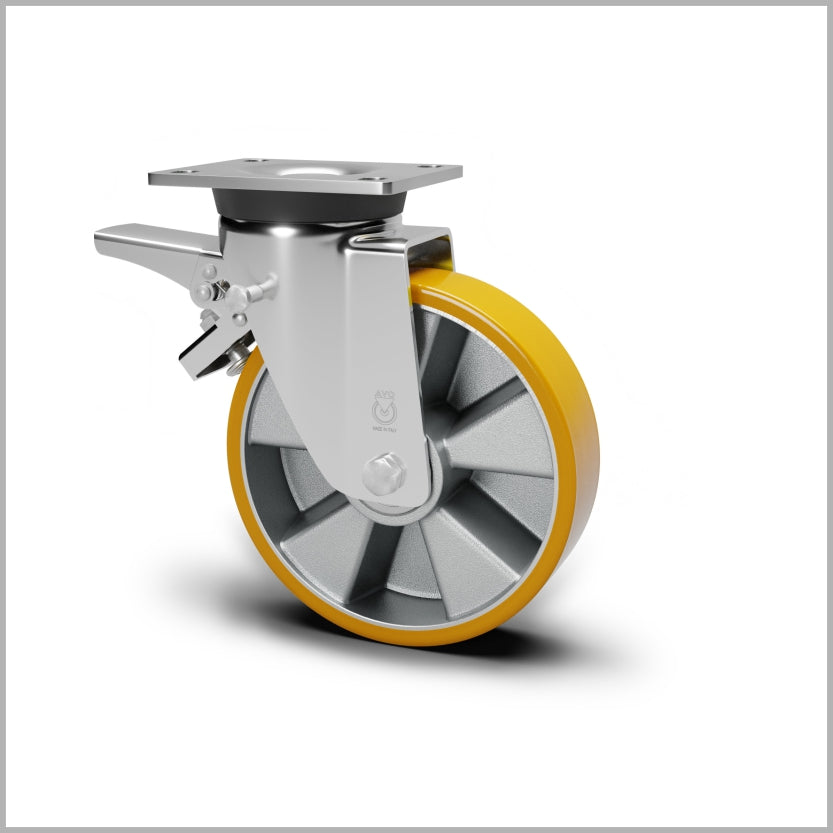

Transport swivel castor 125 mm with brake | PU wheel | aluminium rim | ball bearing | storage & intralogistics

Item number: LTB-L/111K/125/40

Variant: Swivel castor

Description

The housing is made of welded steel sheet, galvanised on the surface and therefore protected against corrosion. The total lock brake blocks the wheel and swivel head at the same time. The wheel consists of an aluminium rim with a hard-wearing polyurethane tread (92 Shore A, flat tread profile, yellow) and runs on a precision ball bearing. Load capacity: 500 kg.

Transport swivel castor | PU wheel | Aluminium rim | Ball bearing | Storage & intralogistics

Technical data

Wheel diameter (D) 125 mm
Wheel width (B) 50 mm
Load capacity 500 kg
Overall height 166 mm
Offset 45 mm
Hole Ø 13 mm
Bolt hole spacing 105 x 80 mm
Plate size 140 x 110 mm
Fastening Plate
Weight3 kg
Material Polyurethane (PU)
Temperature -20 °C to +80 °C

Manufacturer

Importer: rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987

Safety information

Swivel castor Do not exceed the maximum load capacity per castor – distribute the total load evenly across all castors Use only on level, clean surfaces – unevenness, rails or gaps may cause jamming Never use swivel castors as the sole fastening – always combine with sufficient fixed castors (recommendation: 2 swiv...
