Technisches Datenblatt

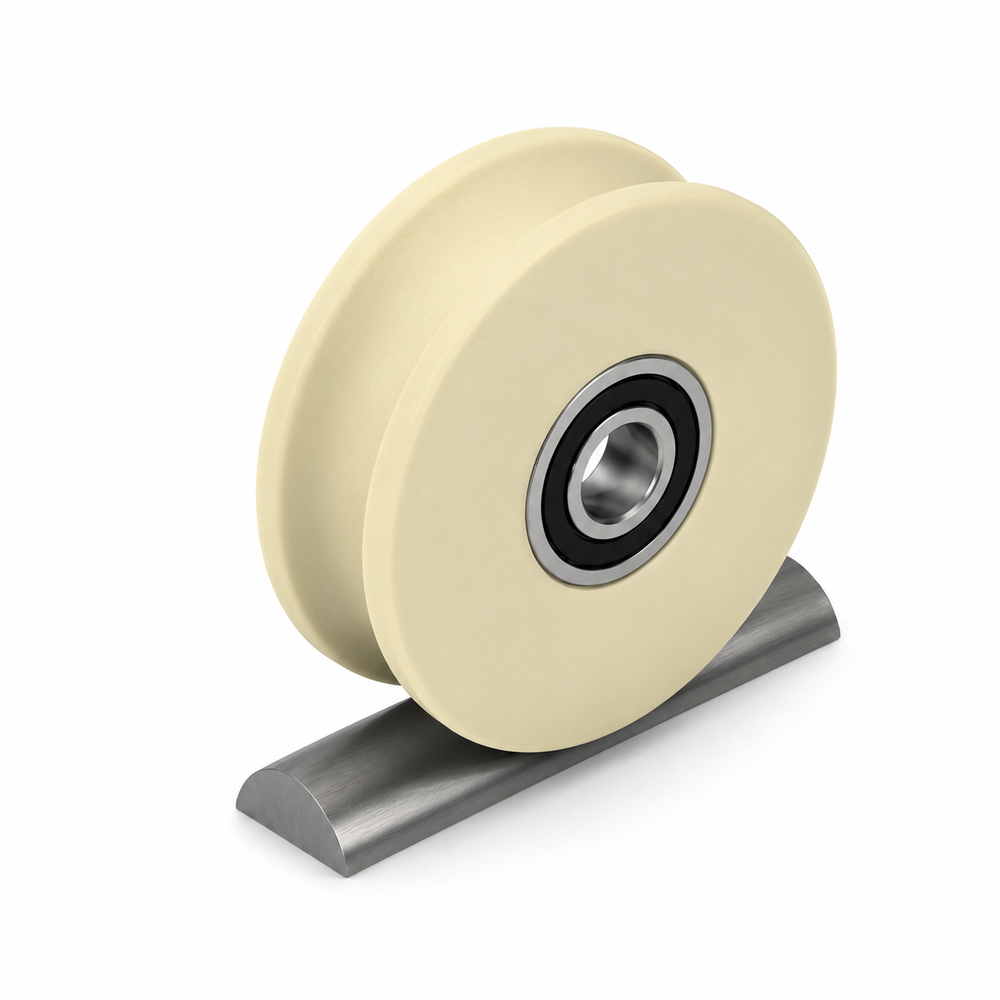

U-groove roller, polyamide 6G, 100×40 mm for 30 mm pipe, bore 12 mm
Artikelnummer: DSPU-2505K/100/40/40/12/30
Ausführung: Standard ball bearing
castors-direct.com
Beschreibung
U-groove roller made of Polyamide 6G with a circumferential U-groove running contour for secure guidance on a tube with Ø 30 mm. Polyamide 6G is a high-strength, abrasion-resistant engineering plastic with low weight, quiet running, and gentle on the counter-surface. Manufactured to order. Technical Data Outer diameter: 100 mm Overall width: 40 mm Tread width: 40 mm Bore diameter: 12 mm Suitable f...
Technische Daten
| Rad-Ø | 100 mm |
|---|---|
| Radbreite | 40 mm |
| Laufbreite | 30 mm |
| Bauhöhe | 100 mm |
| Achsloch-Passung | H7 |
| Nabennutbreite (N1) | 4 |
| Nabennuthöhe (N2) | 1.8 |
| Passung Nabennut | JS9 |
| Rillenradius | 15 |
| Seil-/Rohrdurchmesser | 30 |
| Tragfähigkeit | 400 kg |
| Temperaturbereich | '-30/+80° |
| Gewicht | 0.248 kg |
