Technisches Datenblatt
U-groove roller Polyamide 6G 125×60 mm for 50 mm tube, bore 25 mm
Artikelnummer: DSPU-2505K/125/60/60/25/50
Ausführung: Standard ball bearings
castors-direct.com
Beschreibung

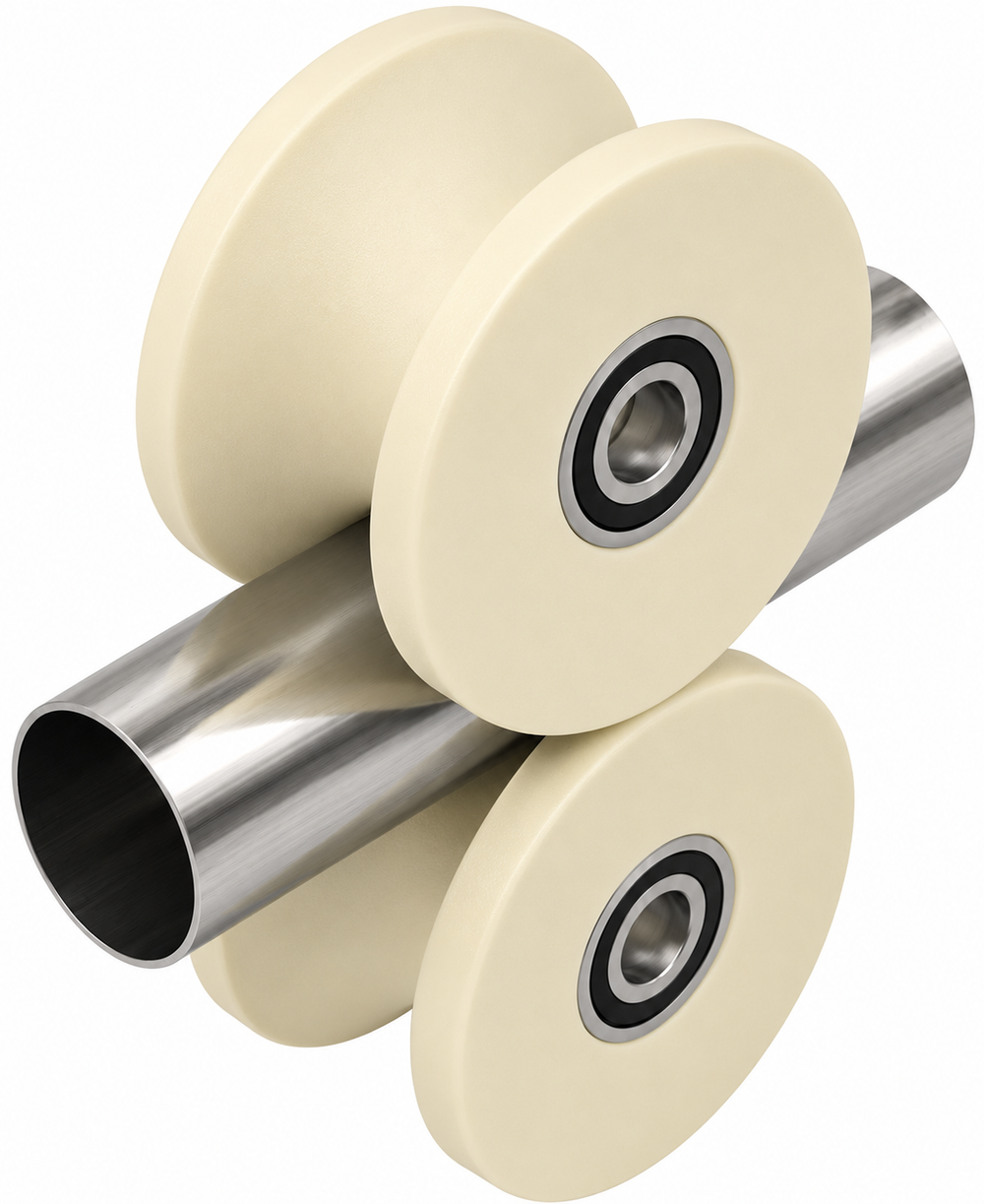

U-groove wheel made of Polyamide 6G with a circumferential U-groove running surface for secure guidance on a tube with Ø 50 mm. Polyamide 6G is a high-strength, abrasion-resistant engineering plastic with low weight, quiet running, and gentle on the counter-running surface. Manufactured to order. Technical Data Outer diameter: 125 mm Overall width: 60 mm Tread width: 60 mm Bore diameter: 25 mm Sui...
Technische Daten
| Rad-Ø | 125 mm |
|---|---|
| Radbreite | 60 mm |
| Laufbreite | 50 mm |
| Bauhöhe | 125 mm |
| Achsloch-Passung | H7 |
| Nabennutbreite (N1) | 8 |
| Nabennuthöhe (N2) | 3.3 |
| Passung Nabennut | JS9 |
| Rillenradius | 25 |
| Seil-/Rohrdurchmesser | 50 |
| Tragfähigkeit | 880 kg |
| Temperaturbereich | '-30/+80° |
| Gewicht | 0.458 kg |
