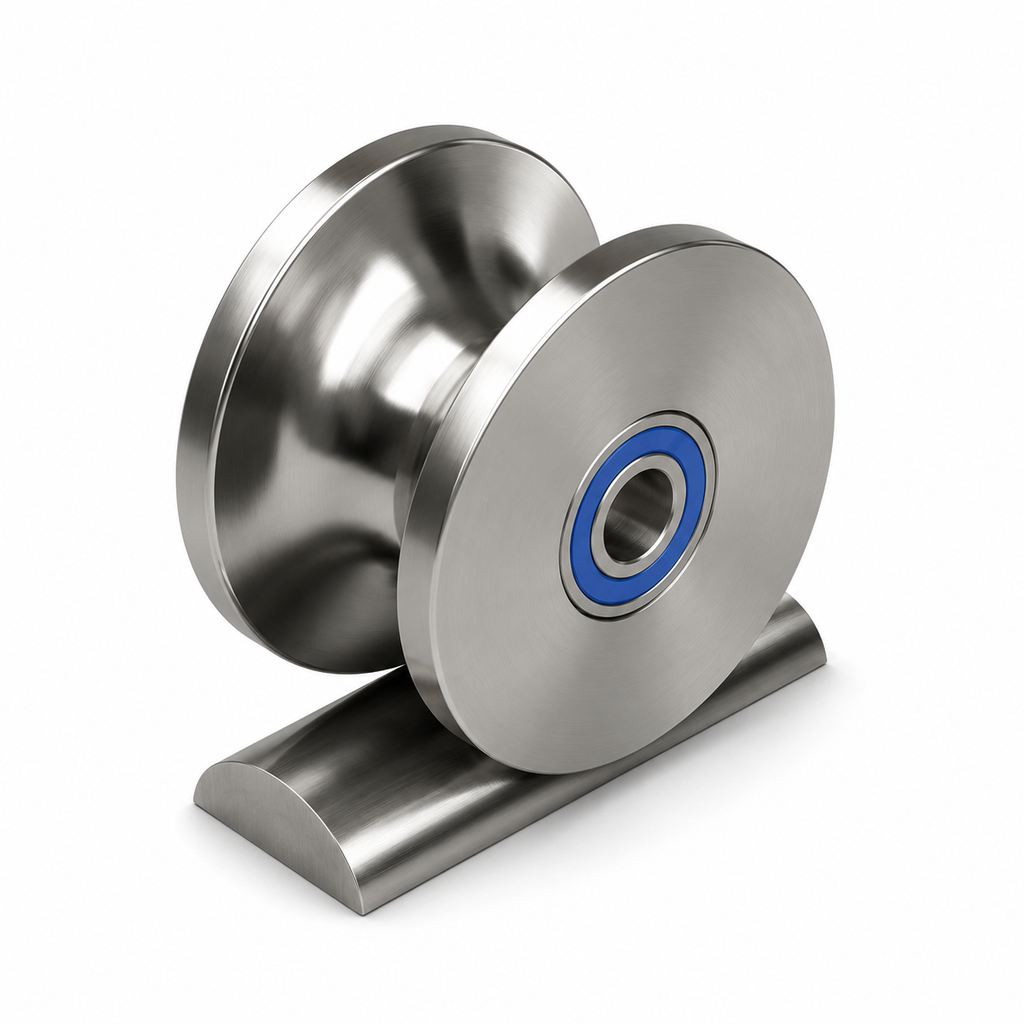

U-groove roller stainless steel 1.4301 125×60 mm for 50 mm tube (R=25 mm), bore 25 mm

Stainless steel 1.4301 (V2A) U-groove roller with circumferential U-groove running surface for secure guidance on a pipe with Ø 50 mm. Fully corrosion-resistant design in material 1.4301 with stainless steel ball bearings. Manufactured to order.

Technical Data

• Outer diameter: 125 mm
• Overall width: 60 mm
• Tread width: 60 mm
• Bore diameter: 25 mm
• Suitable for pipe Ø: 50 mm
• Load capacity: 1100 kg
• Wheel and tread material: Stainless steel 1.4301 (V2A, AISI 304)
• Bearing: Stainless steel ball bearing, rustproof
• Temperature range: -40 °C to +200 °C

Properties of Stainless Steel 1.4301

• High corrosion resistance to moisture, splashing water, and mild chemicals
• Resistant to many cleaning agents and weak acids
• Wide temperature application range
• Hygienic surface, easy to clean
• Food-safe material quality (material itself suitable according to EU 1935/2004)

Areas of Application

Stainless steel U-groove rollers are used in environments with corrosion requirements such as the chemical industry, electroplating, outdoors, in wash-down areas, and in conveying and packaging systems in the food and pharmaceutical industries without direct product contact. Also suitable for special machine construction for cleanroom environments.

Manufactured to order. For applications with direct food contact, please inquire separately about EHEDG-certified versions.
