Technical datasheet

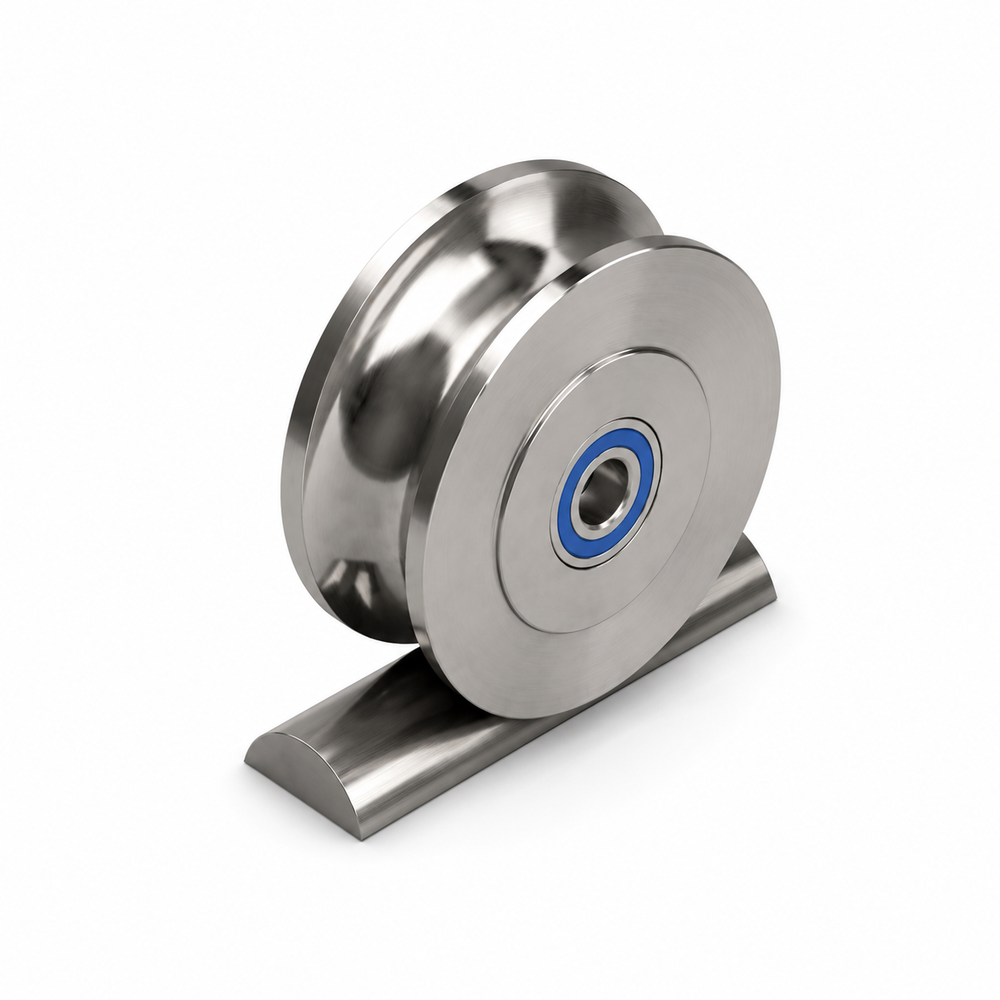

U-groove roller stainless steel 1.4301 140×50 mm for 25 mm tube (R=12.5 mm), bore 25 mm
Item number: DSPU-9743NK/140/50/50/25/25
Variant: Stainless steel ball bearings
castors-direct.com
Description
Stainless steel U-groove roller 1.4301 (V2A) with circumferential U-groove tread for secure guidance on a tube with Ø 25 mm. Fully corrosion-resistant design in material 1.4301 with stainless steel ball bearings. Made to order.
Technical data
| Wheel diameter (D) | 140 mm |
|---|---|
| Wheel width (B) | 50 mm |
| Groove radius (R) | 12.5 |
| Tube diameter | 25 mm |
| Load capacity | 1000 kg |
| Bore (d1) | 25 mm |
| Hub length (C) | 60 mm |
| Material | Stainless steel 1.4301 |
| Temperature | -40 °C to +200 °C |
| Tread hardness | 150 215 HB |
| Weight | 5.11 kg |
Manufacturer
rollen-direkt.de - 59174 Kamen
