Technisches Datenblatt

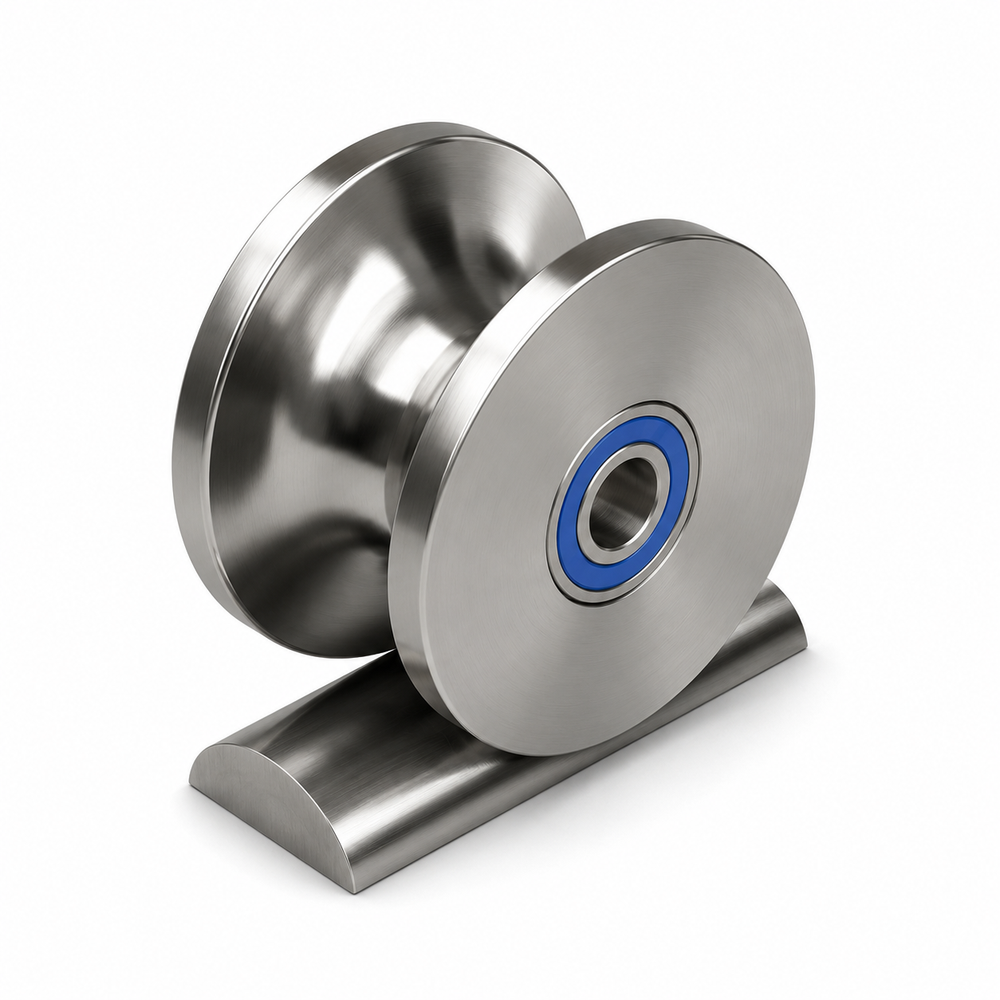

U-groove wheel stainless steel 1.4301 250×80 mm for 50 mm pipe, bore 40 mm
Artikelnummer: DSPU-9743NK/250/80/80/40/50
Ausführung: Stainless steel ball bearings
castors-direct.com
Beschreibung
Stainless steel 1.4301 (V2A) U-groove roller with a circumferential U-groove running surface for secure guidance on a tube with Ø 50 mm. Fully corrosion-resistant design in material 1.4301 with stainless steel ball bearings. Manufactured to order. Technical Data Outer diameter: 250 mm Overall width: 80 mm Tread width: 80 mm Bore diameter: 40 mm Suitable for tube Ø: 50 mm Load capacity: 2500 kg ...
Technische Daten
| Rad-Ø | 250 mm |
|---|---|
| Radbreite | 80 mm |
| Laufbreite | 50 mm |
| Bauhöhe | 250 mm |
| Achsloch-Ø | 40 mm |
| Nabenlänge | 90 mm |
| Rillenradius | 25 |
| Rillentiefe | 25 |
| Tragfähigkeit | 2500 kg |
| Temperaturbereich | '-40/+200° |
| Kontaktverfärbungsfrei | Nein |
| Spurlos | Nein |
| Hitzebeständig | Nein |
| Autoklaventauglich | Nein |
| Rollwiderstand | 5 |
| Korrosionsbeständigkeit | 5 |
| Verschleißbeständigkeit | 5 |
| Material | Edelstahl 1.4301 |
| Härte der Lauffläche | 150 215 HB |
| Gewicht | 24.747 kg |
Hersteller
rollen-direkt.de - 59174 Kamen
