U-Groove Wheel, Steel, 100x50 mm for 25 mm Pipe, Bore 20 mm
129,15 €
IVA incluído
105,00 €
sem IVA
Custom manufacturing
Delivery time on request
Custom manufacturing – delivery time on request.
Technische Daten
Achsloch
20.0
Achsloch passung
Bauhoehe
100
Delivery status
Durchmesser
100
Hersteller
Korrosionsbestandigkeit
2
Lauf breite
25.0
Load capacity
600
Nabenlange
60.0
Nabennutbreite
Nabennuthohe
Passung nabennut
Rad breite
50.0
Rillenradius
Rillentiefe
Rollwiderstand
5
Temperatur
Verschleissbestaendigkeit
5
U-groove steel wheel with a circumferential U-groove running surface for secure guidance on a tube with a Ø 25 mm. Robust steel construction for demanding conveyor and mechanical engineering applications. Manufactured to order.
Technical Data
- Outer diameter: 100 mm
- Overall width: 50 mm
- Tread width: 50 mm
- Bore diameter: 20 mm
- Suitable for tube Ø: 25 mm
- Load capacity: 600 kg
- Wheel and tread material: Steel
- Temperature range: -20 °C to +80 °C
Areas of Application
U-groove steel wheels are used in conveyor technology, mechanical engineering, and roller conveyors where a wheel must run guided on a fixed round tube. Typical applications include sliding gate systems, overhead conveyors, guided roller conveyors, workshop trolleys with tube guidance, and special designs in custom machine building.
Versions
- Standard – with cylindrical bore Ø 20 mm (DSPU-9620K)

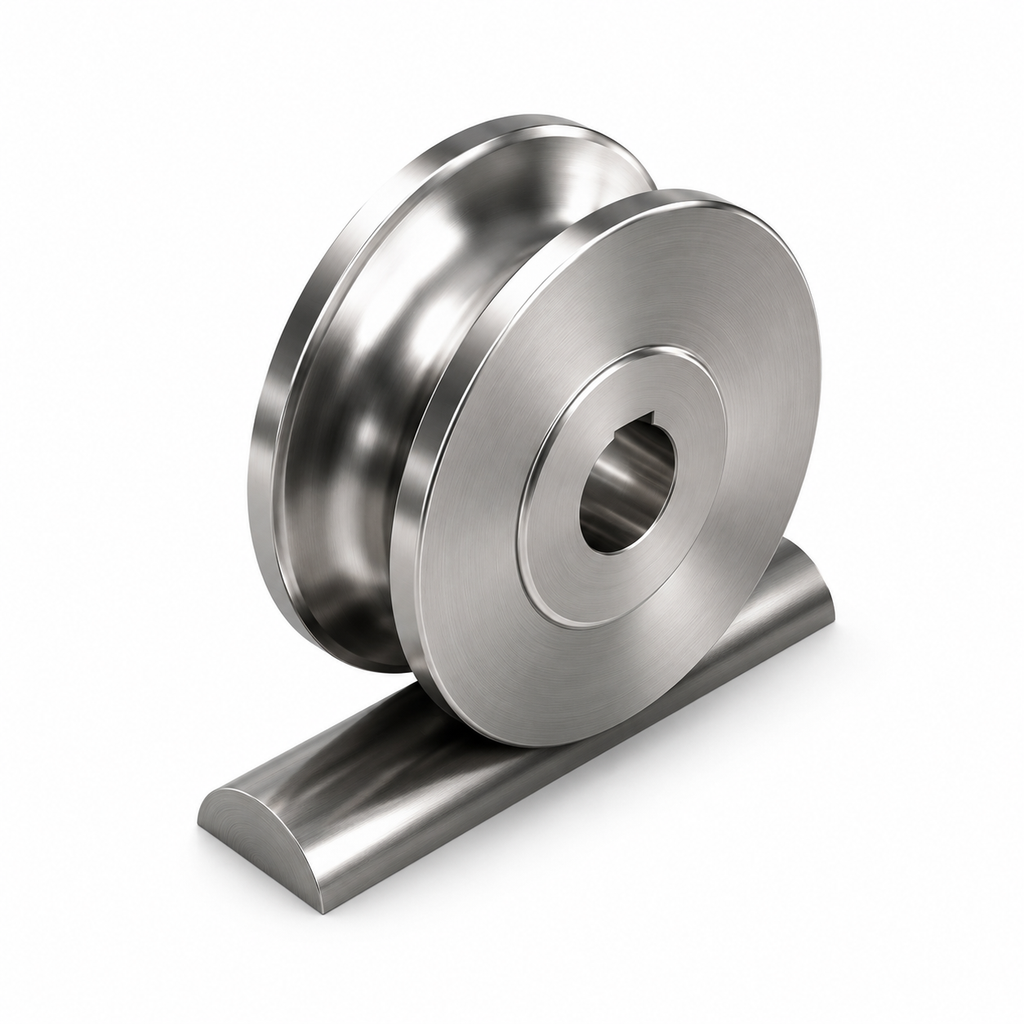

- with keyway – bore Ø 20 mm with keyway according to DIN 6885 for rotation-proof shaft connection (DSPU-9620PN)
Manufactured to order. Special sizes, other bores, or hardened versions available on request.
