Technical datasheet

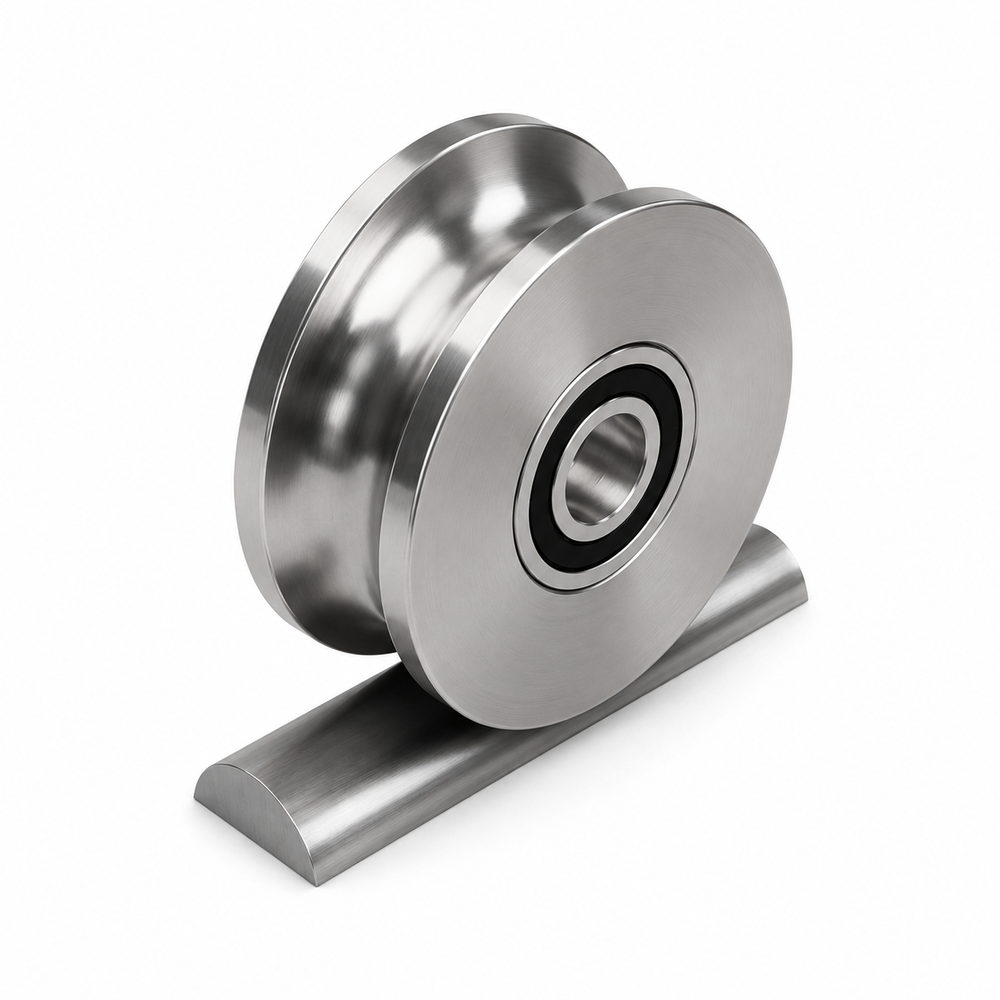

U-Groove Castor Steel 250×90 mm for pipe 3" / 76.2 mm, bore 40 mm
Item number: DSPU-9620K/250/90/90/40/76_2
Variant: default
castors-direct.com
Description
U-groove steel roller with circumferential U-groove running profile for secure guidance on a pipe with Ø 3" / 76.2 mm. Robust steel construction for demanding conveyor and mechanical engineering applications. Manufactured to order.
Technical data
| Wheel diameter (D) | 250 mm |
|---|---|
| Wheel width (B) | 90 mm |
| Rillenradius (R) | 38.1 |
| Rohr-Durchmesser | 76.2 mm |
| Load capacity | 2500 kg |
| Axle hole (d1) | 40 mm |
| Hub length (C) | 100 mm |
| Material | Stahl |
| Temperatur | -40 °C bis +200 °C |
| Tread hardness | 200 230 HB |
| Achsloch Passung | H7 |
| Passung Nabennut | JS9 |
| Nabennuthöhe (N2) | 3.3 |
| Nabennutbreite (N1) | 12 |
| Gewicht | 21.877 kg |
Manufacturer
rollen-direkt.de - 59174 Kamen
