Technical datasheet

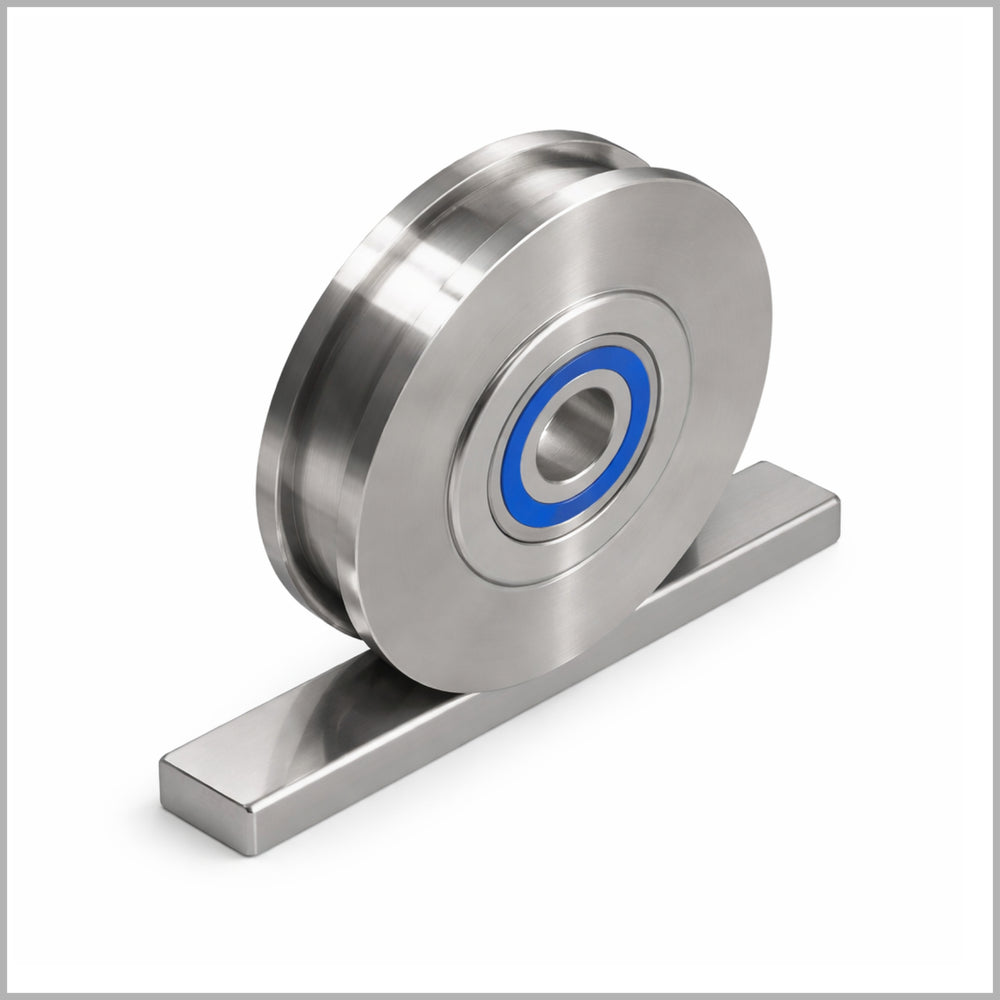

100 mm Double-flanged wheel | stainless steel 1.4301 | 500 kg | clean room | ball bearing or hub groove
Item number: DSPR-9743K/100/30/14/12
castors-direct.com
Description
The 100 mm double-flanged wheel in cleanroom design made of stainless steel 1.4301 is specifically designed for use in cleanroom production systems in the pharmaceutical, semiconductor and medical technology industries. With a load capacity of 500 kg and a fully rust-free construction, it meets the highest requirements for particle freedom and corrosion resistance in conveyor technology for cleanroom environments .
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 30 mm |
| Flanged wheel diameter (D2) | 120 mm |
| Bore (d1) | 12 mm |
| Hub length (C) | 30 mm |
| Load capacity | 500 kg |
| Tread width (T) | 14 mm |
| Conductivity | Conductive |
| Non-marking | Yes |
| Temperature | -20 °C to +80 °C |
| Tread hardness | 150 215 HB |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Phone 02307 - 9645035
