Technical datasheet

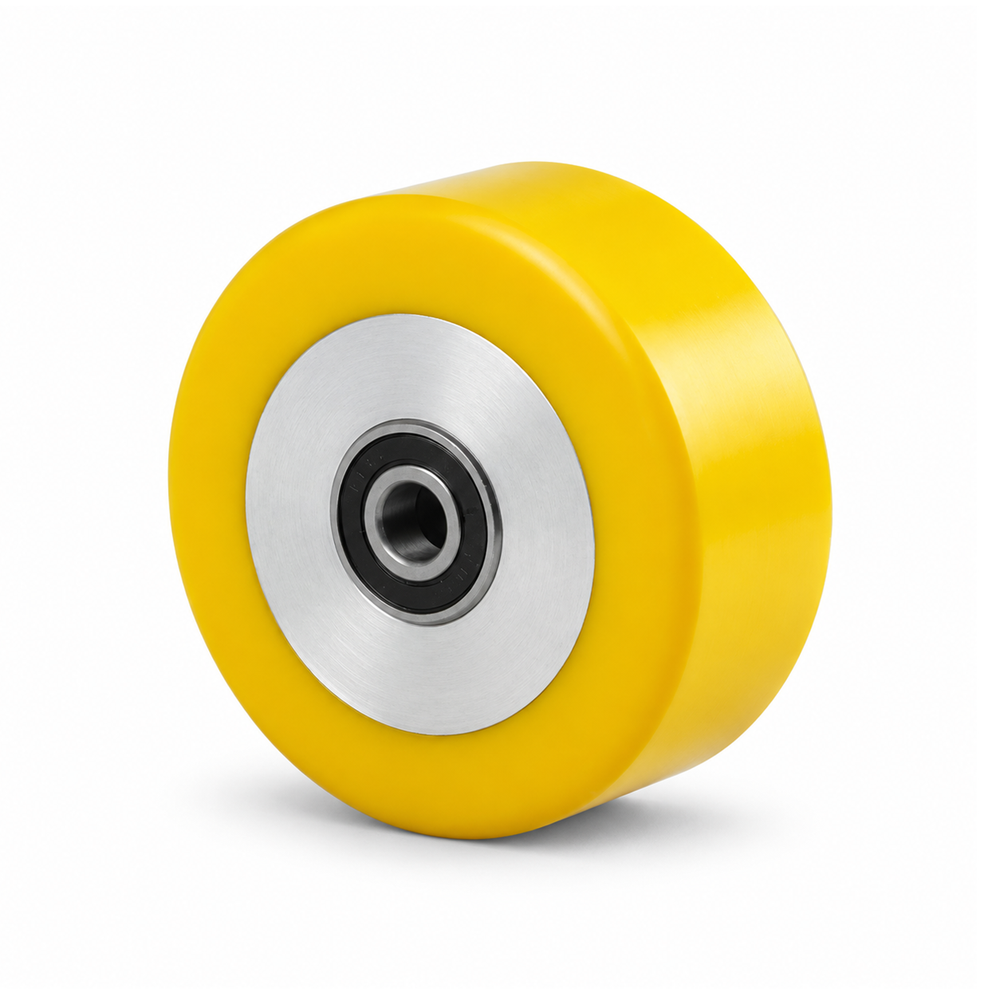

100 × 30 mm Polyurethane wheel with solid aluminium core – 250 kg, ball bearing
Item number: 690KFL/100/30/30/12
Variant: 30mm
castors-direct.com
Description
The polyurethane wheel 100 × 30 mm is a robust industrial wheel for continuous use on smooth to slightly uneven floors. The non-marking PU tread (92° Shore A) offers high abrasion resistance and protects sensitive floor coverings. The yellow colour makes visual identification in operation easier.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 30 mm |
| Hub length (C) | 40 mm |
| Bore (d1) | 12 mm |
| Load capacity | 250 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
