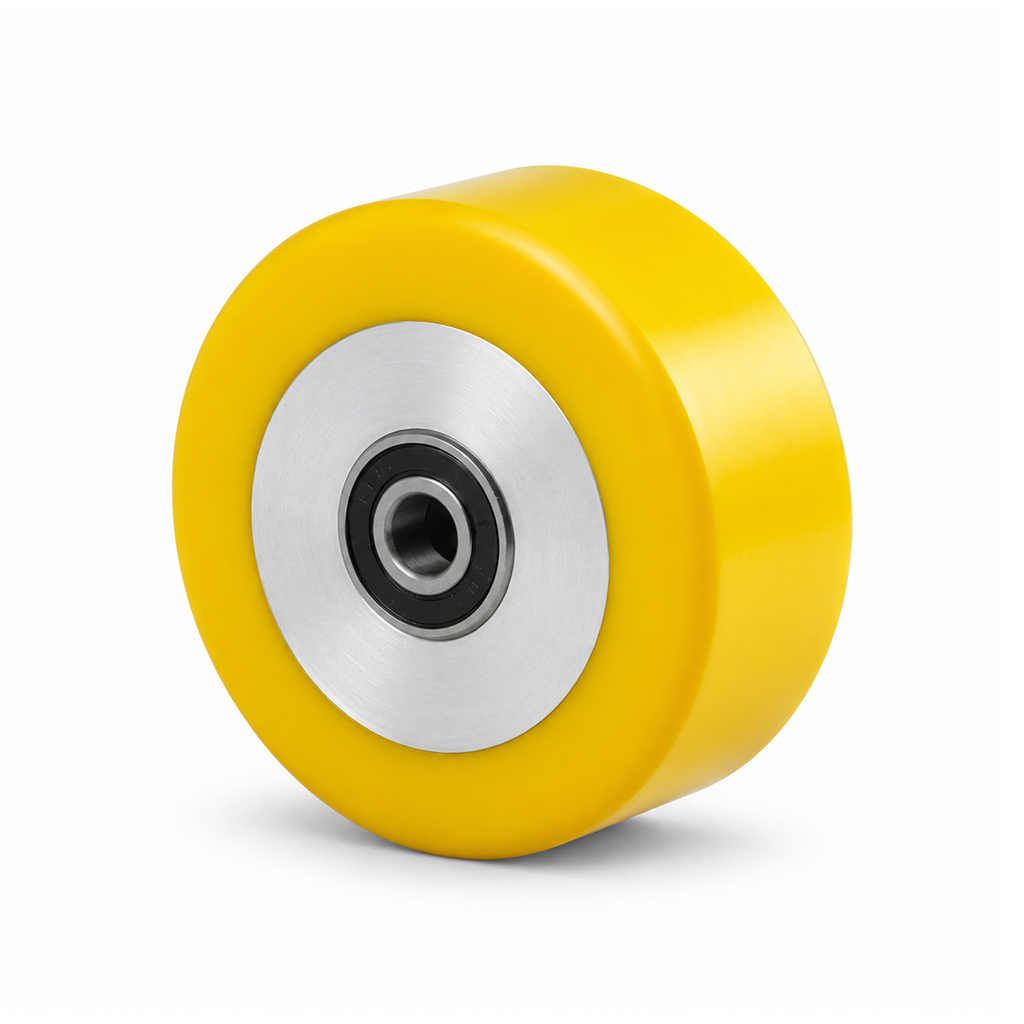

100 × 40 mm Polyurethane wheel with solid aluminium core – 350 kg, ball bearing, flat & crowned

The polyurethane wheel 100 × 40 mm with 40-mm-Nabe is a versatile heavy-duty wheel for workshops, warehouses and industrial applications. With 300 kg load capacity per wheel, a solid aluminium core and ball bearing, it runs smoothly and quietly – even under continuous load.

Solid aluminium core machined from solid material: The wheel body is machined from solid aluminium round stock – not hollow-cast, not formed from sheet metal. This results in a torsion-resistant, dimensionally stable wheel body with significantly lower dead weight than comparable steel or cast wheels. Ideal wherever rolling masses should be minimised (handling systems, machine trolleys, ergonomic transport).

Material: polyurethane tread, wear-resistant and dirt-repellent. Hardness: approx. 92° Shore A. Tread yellow, non-marking and floor-friendly.

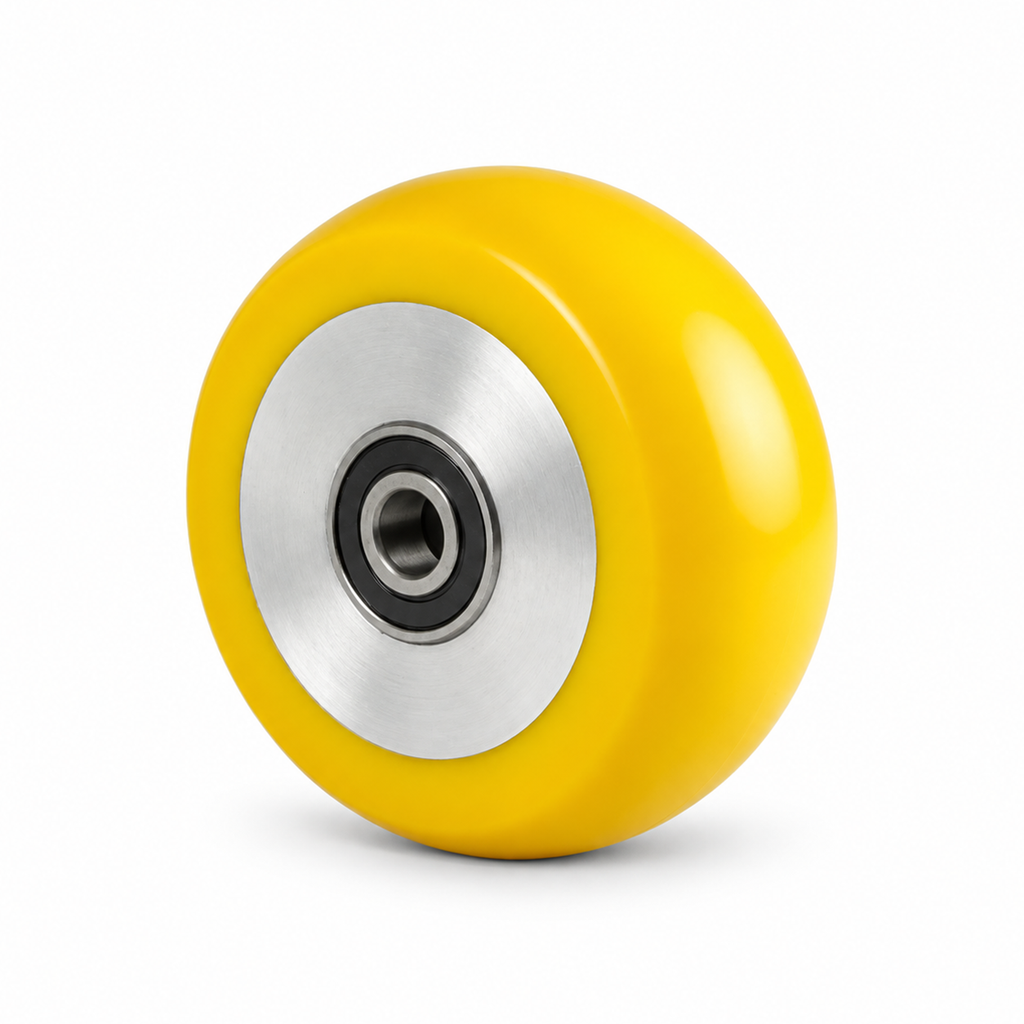

Available with flat or crowned tread (see variant selection). Custom designs available on request.

Technical data

• Wheel diameter: 100 mm
• Wheel width: 40 mm
• Axle bore / hole: Ø 12 mm
• Hub length: 40 mm
• Load capacity: 350 kg per wheel
• Tread: polyurethane, yellow, approx. 92° Shore A, non-marking
• Wheel body: solid aluminium core, machined from solid material
• Bearing: ball bearing (low-maintenance)
• Temperature range: −20 °C to +80 °C

Typical applications: workshop and warehouse trolleys, machine and equipment trolleys, material handling technology, machine and plant construction.
