Technical datasheet

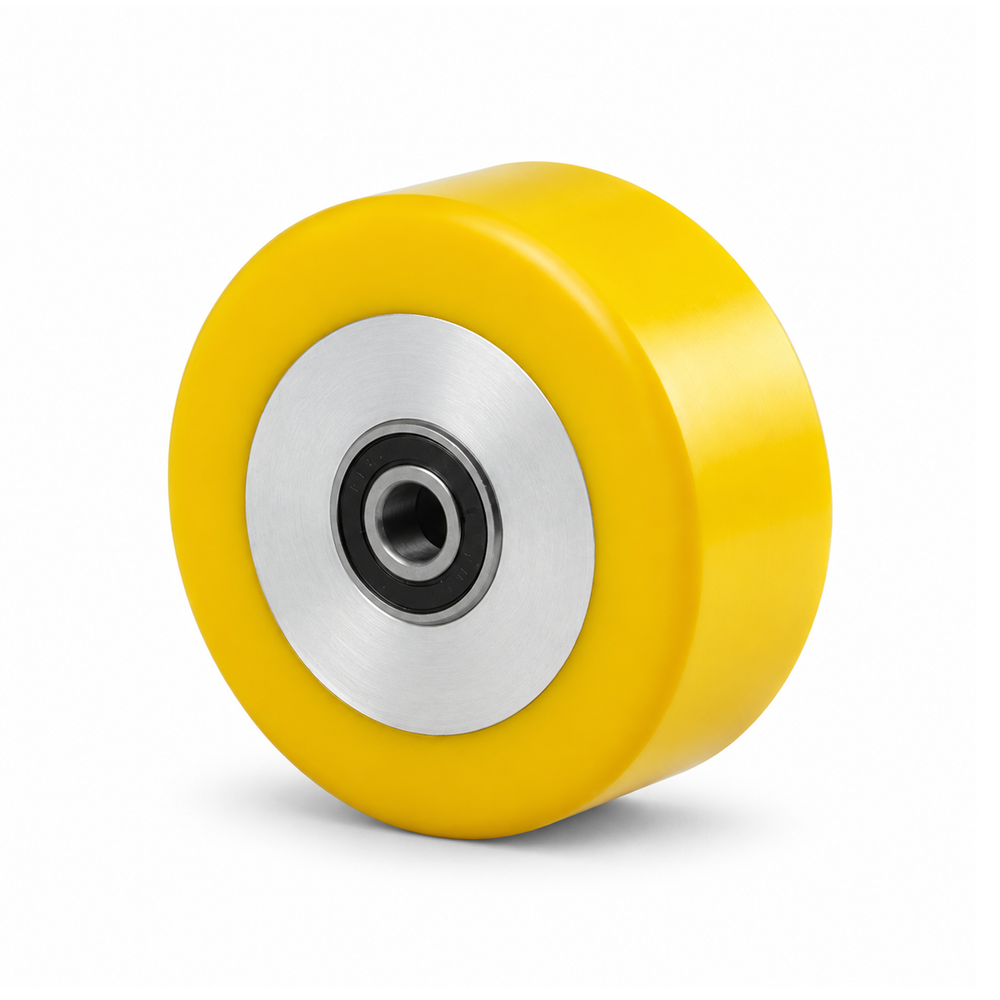

100 × 40 mm Polyurethane wheel with solid aluminium core – 350 kg, ball bearing, flat & crowned
Item number: 690KFL/100/40/40/12
Variant: flat
castors-direct.com
Description
The polyurethane wheel 100 × 40 mm with 40-mm-Nabe is a versatile heavy-duty wheel for workshops, warehouses and industrial applications. With 300 kg load capacity per wheel, a solid aluminium core and ball bearing, it runs smoothly and quietly – even under continuous load.
Technical data
| Wheel diameter (D) | 100 mm |
|---|---|
| Wheel width (B) | 40 mm |
| Hub length (C) | 40 mm |
| Bore (d1) | 12 mm |
| Load capacity | 350 kg |
| Tread hardness | 92 Shore A |
| Temperature | -20 °C to +80 °C |
| Material | Polyurethane (PU), Aluminium |
| Non-marking | Yes |
| Non-marking | Yes |
| Heat-resistant | No |
Manufacturer
rollen-direkt - Heidestr. 38 a - 59174 Kamen - Tel. 02307 - 9644987
